6.DISCHARGING CONTROL MODE
86
6-4. Final / Set Point 2 / Set Point 1 / Compensation / Over / Under

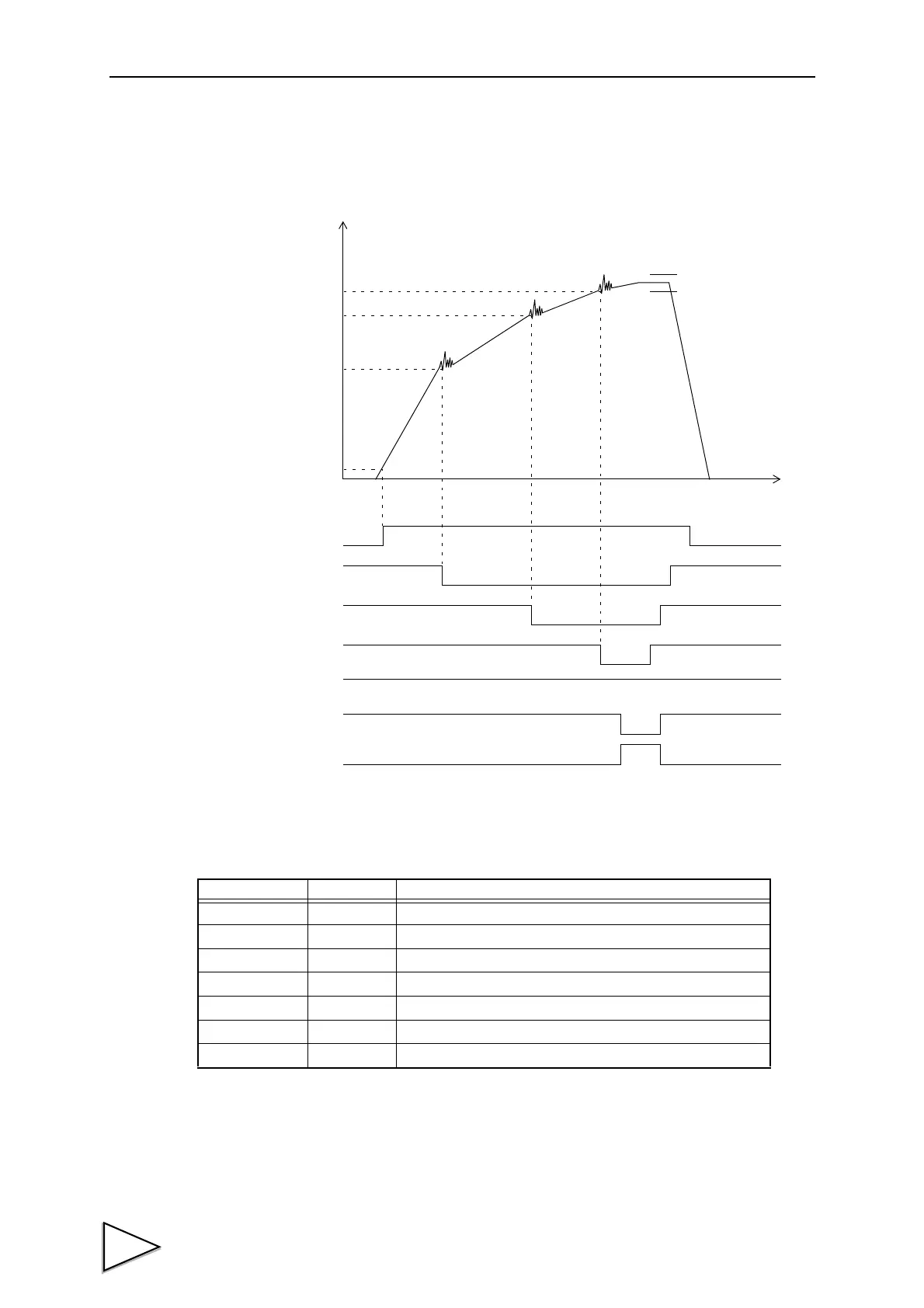

Setting for controlling and judging the discharge.
Outputting the control signal to external part from the control connector by the value set here.
0
WEIGHT
Over
Under
TIME
OFF
ON
ON
ON
ON
OFF
ON
Near Zero
Final – SP1
Final – SP2
Final – CPS
Final
Near Zero
Over
Go
Under
SP2
SP1
SP3
Setting Discharging Fixed Value
Setting Display Judging Formula
Near Zero NZ
Weight value ≦ Set value of Near Zero
Set Point 1 SP1
Weight value ≧ Final - SP1
Set Point 2 SP2
Weight value ≧ Final - SP2
Set Point 3 SP3
Weight value ≧ Final - CPS
Under
Weight value ＜ Final - Under
Over
Weight value ＞ Final + Over
Go
Final + Over ≧ Weight value ≧ Final - Under
