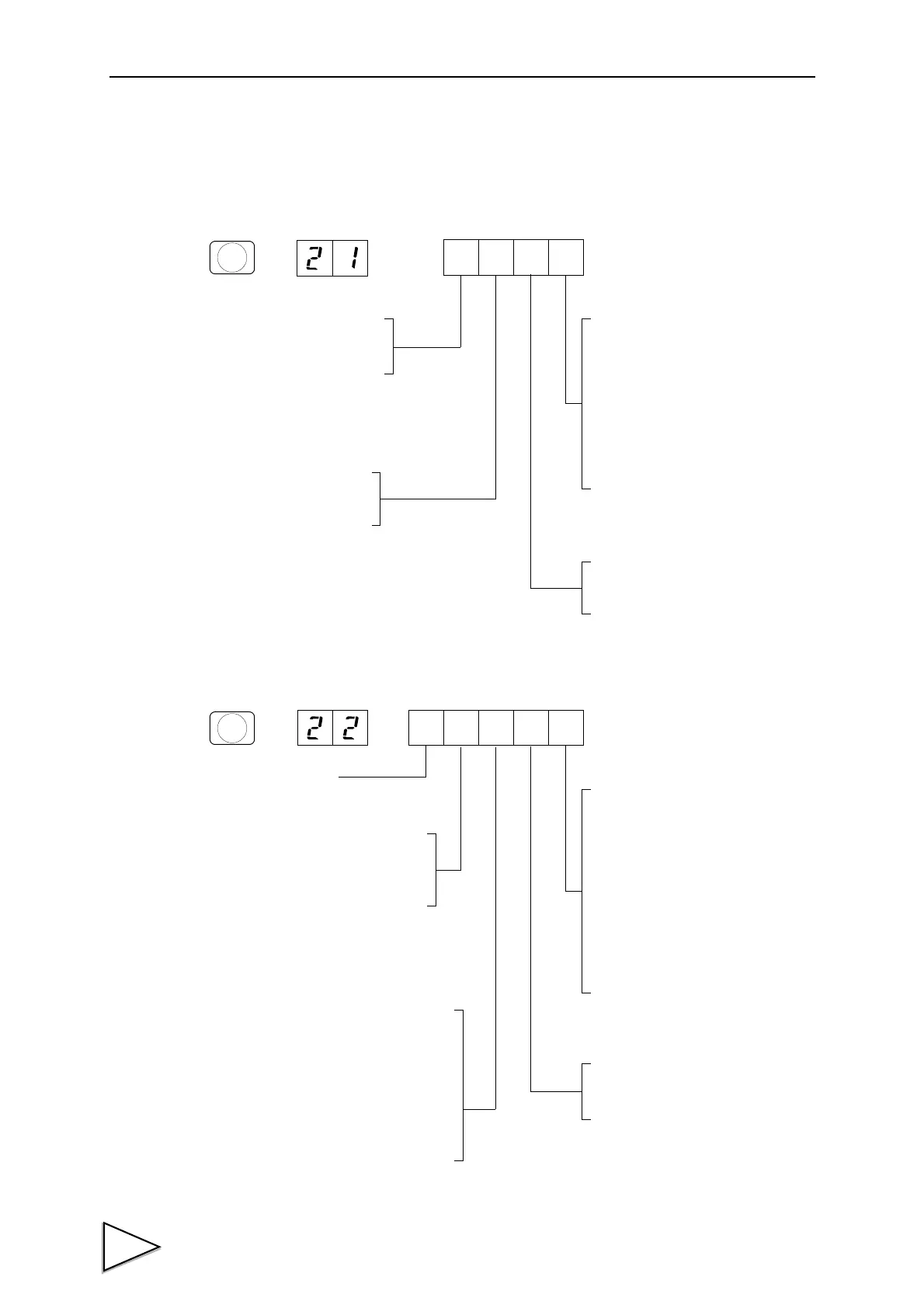

3-2-3. Setting Mode 2
In setting mode 2, the display and internal functions of the F701-C are to be tuned.
- Weighing Function 1
- Weighing Function 2
Discharging control mode
2 : External selection
1 : Discharging control
0 : Feeding control
Near Zero comparison
4 : ON when |Net weight| ≦ Near Zero
setting value
3 : ON when |Gross weight| ≦ Near Zero
setting value
2 : Comparison OFF
1 : ON when Net weight ≦ Near Zero
setting value
0 : ON when Gross weight ≦ Near Zero
setting value
Final and Over/Under comparison
2 : Comparison OFF
1 : Net weight
0 : Gross weight
Upper/Lower limit comparison
2 : Comparison OFF
1 : Net weight
0 : Gross weight
(For details, please refer to
"6-1-3" on P.75.)
(For details, please refer to
"6-7" on P.91.)
(For details, please refer to "6-7" on P.91.)
(For details, please refer to "6-7" on P.91.)
1
UPPER
* Not defined Complete signal output mode
2 : ON for the complete output time from
when the judging timer has expired
or from when the weight value
becomes stable after the SP3 signal
turns ON.
1 : ON for the complete output time from
when the weight value becomes
stable after the judging timer has
expired.
0 : ON for the complete output time from
when the judging timer has expired.
Over/Under comparison mode
3 : Comparison is made, and the
weight value is held when the
complete output is ON.
2 : Comparison is made when the
complete output is ON.
1 : Comparison is made when the
external judgment input is ON.
0 : Comparison regularly
Upper/Lower limit comparison mode
1 : Comparison is made when the
external judgment input is ON.
0 : Comparison regularly
Accumulation command selection
1 : Auto accumulation
command ON
0 : Auto accumulation
command OFF
(For details, please refer to "6-7" on P.91.)
(For details, please refer to "6-7" on P.91.)
(For details, please refer to "6-8" on P.93.)
(For details, please refer to
"7-4" on P.107.)
