10.INTERFACE
137

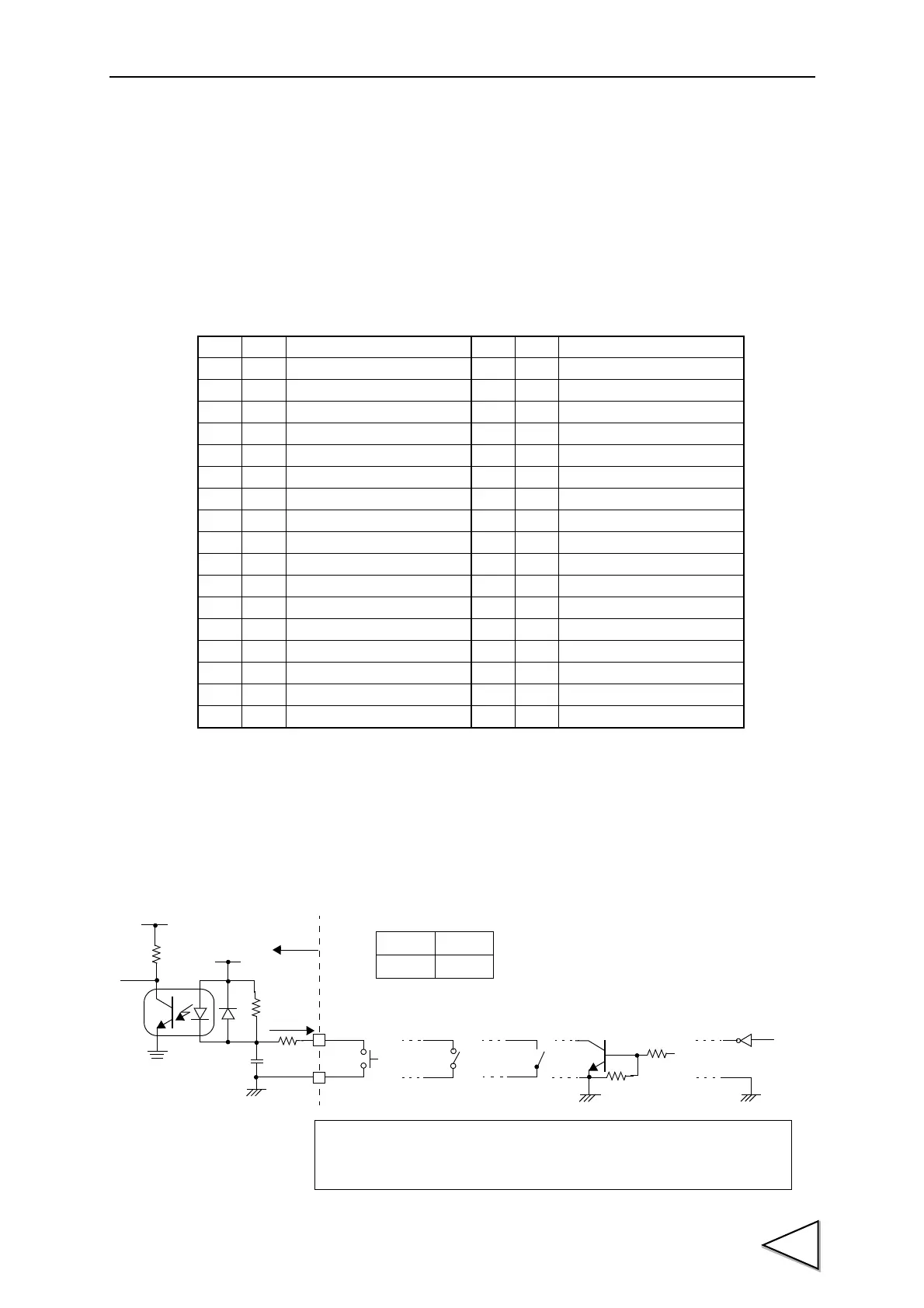

10-3. BCD Parallel Data Output Interface
The BCD data output is an interface to take out measured weight values as BCD data.
It is a convenience to perform processing, such as control, totaling, and recording as connected with
a computer, process controller, sequencer, etc.
The Input/Output circuit and internal circuit are photocoupler-insulated electrically.
10-3-1. Control Connector-Pin Assignment
＊ : The COM (common) terminals are connected inside.
10-3-2. Equivalent Circuit (Input)
A signal is inputted to the signal input circuit by short-circuiting or opening the input terminal and
the COM terminal. Short-circuiting is effected by means of a contact (such as a relay or a switch) or
a noncontact (such as a transistor or an open-collector TTL).
Adaptable connector : DDK 57-30360 or equivalent one
1
＊
COM 19
＊
COM
2 Out 1 20 Out 20000
3 Out 2 21 Out 40000
4 Out 4 22 Out 80000
5 Out 8 23 Out MINUS
6 Out 10 24 Out OVER
7 Out 20 25 Out P.C
8 Out 40 26 Out STROBE
9 Out 80 27 In Data hold
10 Out 100 28 In Logic switching
11 Out 200 29 In Output selection 1
12 Out 400 30 In Output selection 2
13 Out 800 31 In
14 Out 1000 32 In
15 Out 2000 33 In
16 Out 4000 34 In
17 Out 8000 35
18 Out 10000 36
Vcc
F701-C
Inside
Approx.
COM
Transistor
+12V
Push
Toggle switch Relay
IN
IN
Open OFF
Short ON
- Do not apply external voltage to the signal input circuit.
- The external element is required to withstand Ic=10mA.
- Leakage from the external element is required to be 100μA or below.
switch
IC=6mA
TTL open collector
(ON when IN is HI)
To Next Page
