6.DISCHARGING CONTROL MODE
82
● For resetting the sequence error ( ＊ ), input the ON edge (OFF → ON) of the stop signal.
The start signal is not received at the time of a sequence error.

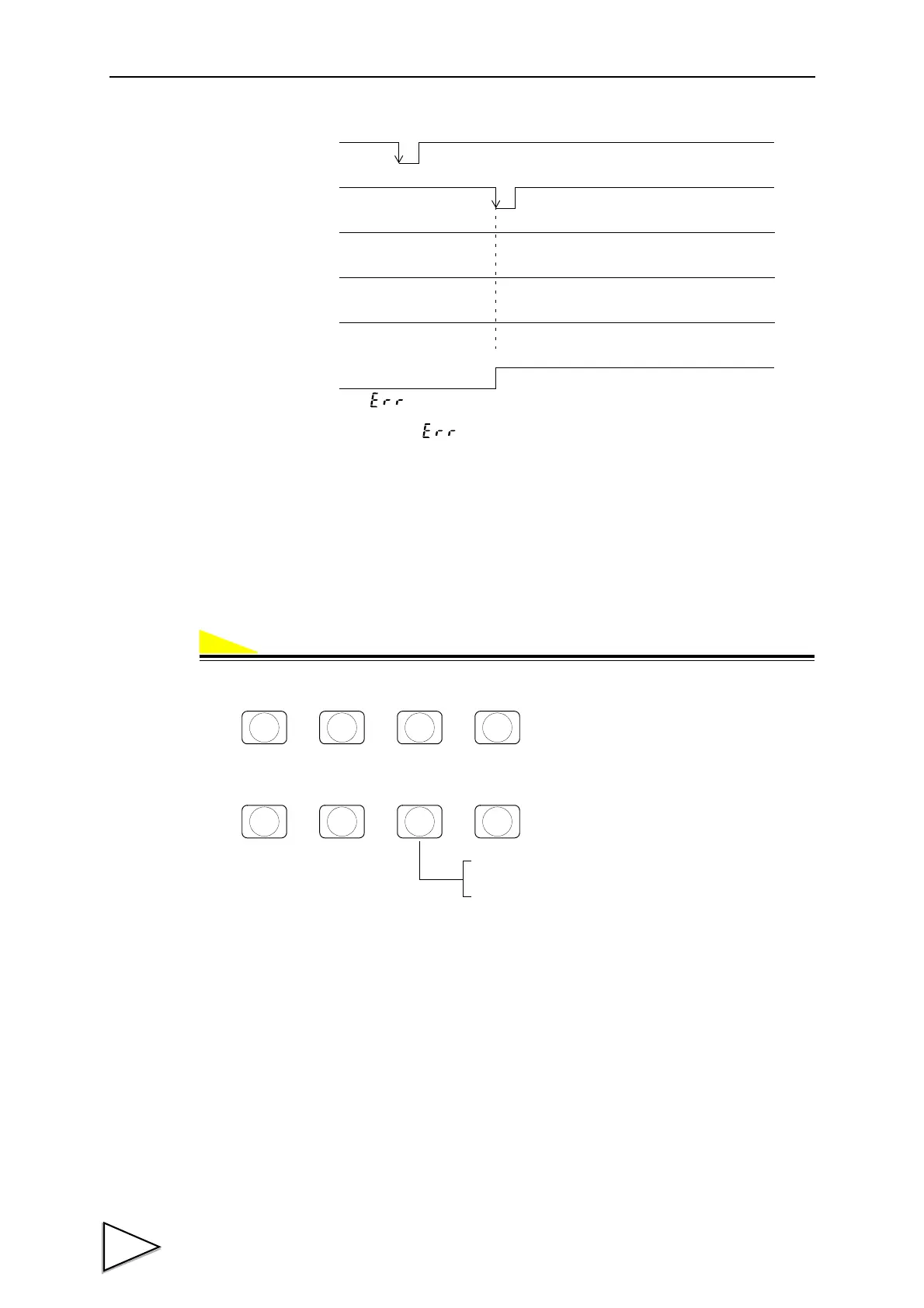

6-2-3. Sequence Mode
Setting Simple comparison/Sequence control.
Operation
1) Select setting mode 2.
2) Select from Simple comparison mode/Sequence mode. (4-Sequence Mode)
ON
ON
OFF
OFF
OFF
OFF
＊
START
STOP
SP1
Sequence error
SP2
SP3
→→→
F
CNG/ENT CNG/ENT
2
LOWER
1 : Sequence mode
0 : Simple comparison mode
→→→
4
SP1
CNG/ENT CNG/ENT
