6.DISCHARGING CONTROL MODE
81
● t1 : Comparison Inhibit Time Comparison Inhibit Time in setting mode 1
t2 : Judging Time Judging Time in setting mode 1
t3 : Completion output time Completion Output Time in setting mode 1
t4 : Adjust Feeding Time Adjust Feeding Time in setting mode 1

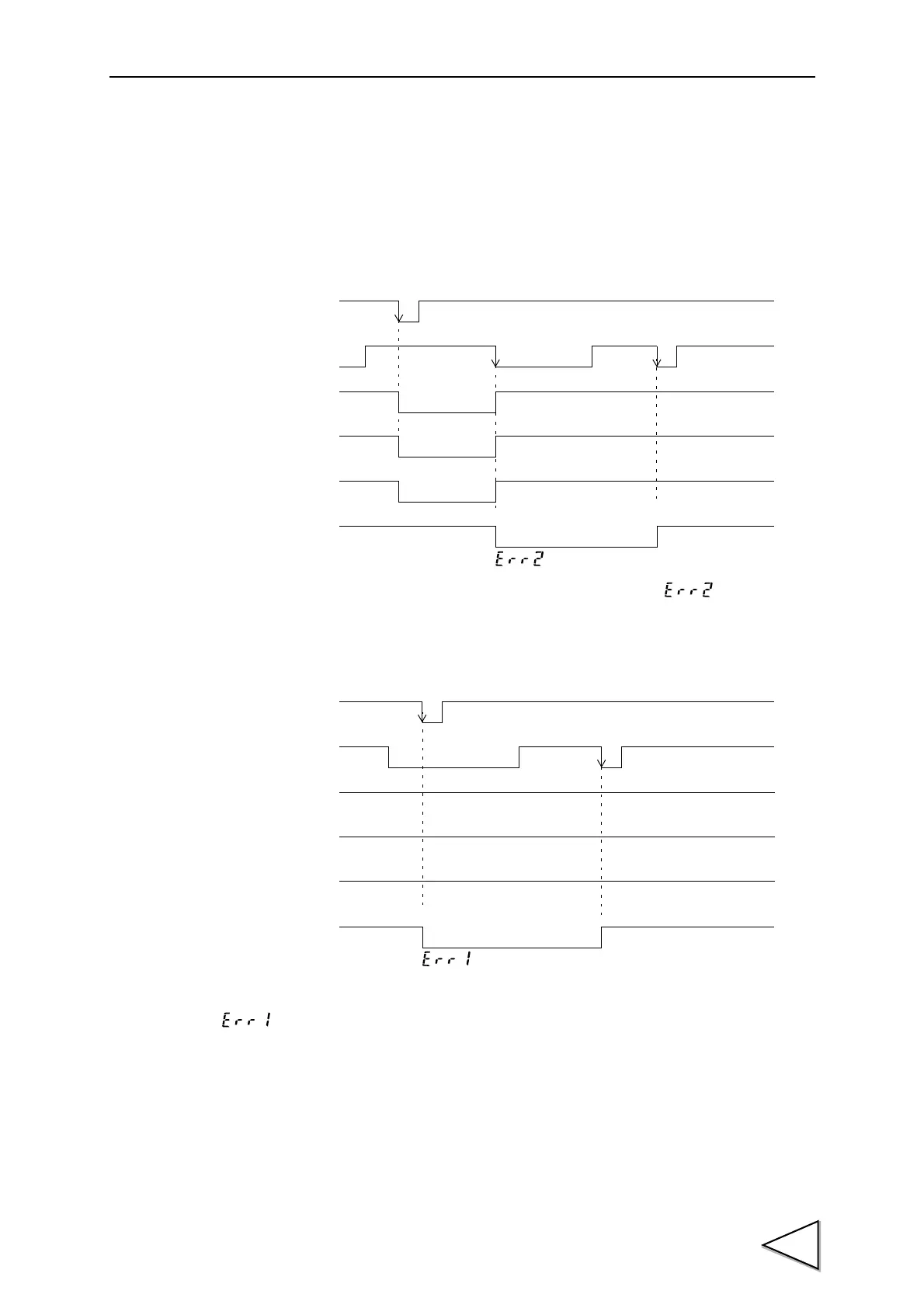

About the stop signal
● When the stop signal turns ON during weight cycle, a sequence error ( ) will result and
all the signals of Set Point 1 output, Set Point 2 output and Set Point 3 output are turned OFF.
● If the start signal is turned ON when the stop signal is ON, it will become a sequence error
( ) and will not start the weighing.
START
STOP
SP1
Sequence error
SP2
SP3
ON
OFF
ON
ON
ON
ON
ON
OFF
ONON
OFF
OFF
START
STOP
SP1
Sequence error
SP2
SP3
