Unipulse F701-C User Manual

6.DISCHARGING CONTROL MODE
80
● The completion signal output timing is such that the complete signal output mode setting
(Weighing Function 2 in setting mode 2) is ignored, but it is output at the OFF edge (ON →
OFF) of the final signal (Set Point 3 signal).
● t1 : Comparison Inhibit Time Comparison Inhibit Time in setting mode 1
t3 : Complete Output Time Complete Output Time in setting mode 1

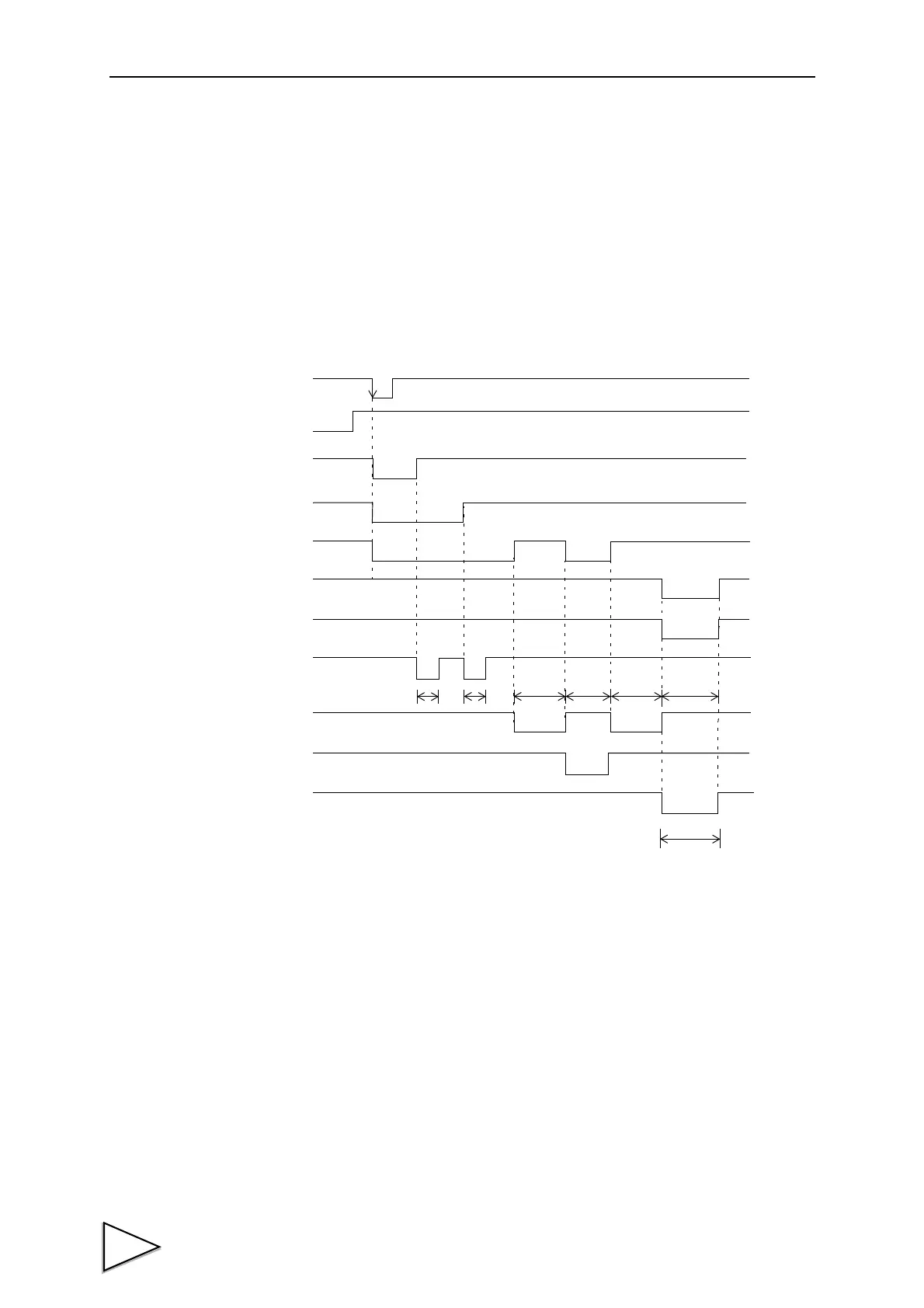

③ Sequence with adjust feeding
● Set adjust feeding (ON/OFF) (Sequence Mode in setting mode 2) to ON.
● The completion signal output timing depends on the complete signal output mode setting
(Weighing Function 2 in setting mode 2).
● The Over/Under comparison timing is such that the Over/Under comparison mode setting
(Weighing Function 2 in setting mode 2) is ignored, but comparisons are made when the
completion output is ON, and the weight value is held.
● Upper/Lower limit comparison is always made in defiance of the setting of Upper/Lower limit
comparison mode (Weighing Function 2 in setting mode 2).
ON
ON
ON
ON
ON
HOLD
OFF
t2 t3t4 t1t1 t2
START
STOP
SP1
SP2
SP3
Complete
Judgment (Over or Go)
Judging Timer
Completion Timer
Comparison Inhibit Timer
Adjust Feeding Timer
