3.METHODS OF SETTING
33

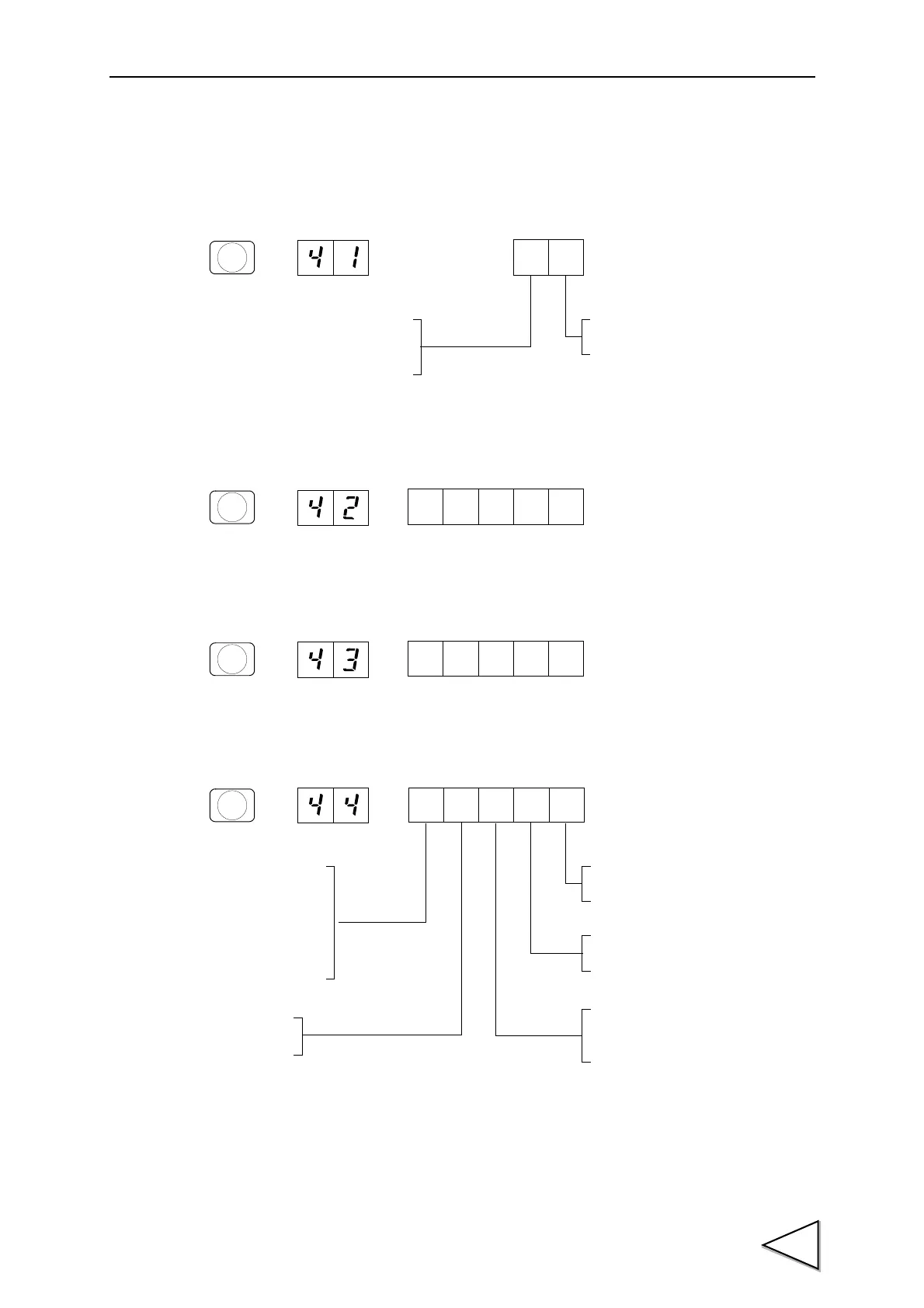

3-2-5. Setting Mode 4
In setting mode 4, setting values relating to communication are to be set.
- D/A Output Mode
(For details, please refer to "10-4-3" on P.143.)
- D/A Zero Output Weight
(For details, please refer to "10-4-3" on P.143.)
- D/A Full Scale
(For details, please refer to "10-4-3" on P.143.)
- RS-485 I/F
(For details, please refer to "10-5-3" on P.147.)
Test mode
2 : 20mA fixed output
1 : 4mA fixed output
0 : Tied to the weight value
Output mode
1 : Net weight
0 : Gross weight
1
UPPER
(0 ～ 99999)
2
LOWER
(0 ～ 99999)
3
NEAR Z .
Baud rate
5 : 38400bps
4 : 19200bps
3 : 9600bps
2 : 4800bps
1 : 2400bps
0 : 1200bps
Terminator
1 : CR+LF
0 : CR
Character length
1 : 8bit
0 : 7bit
Stop bit
1 : 2bit
0 : 1bit
Parity bit
2 : Even
1 : Odd
0 : None
4
SP1
