9.EXTERNAL INPUT/OUTPUT SIGNALS (CONTROL CONNECTOR)
114

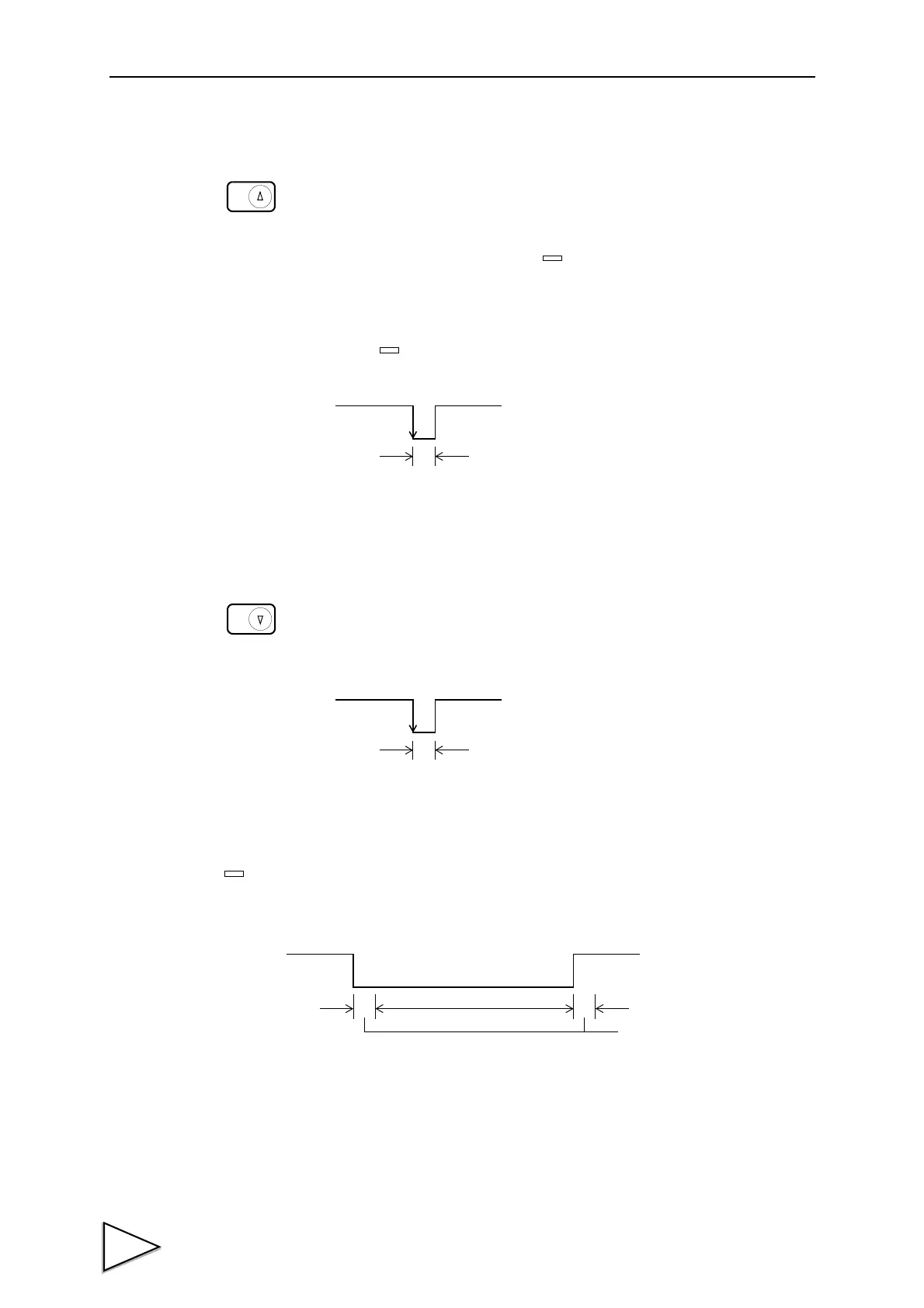

9-4-3. Tare Subtraction (TARE ON) <Edge Input>
Subtract the Tare at once by external input ON edge (OFF → ON), it brings the Net weight to zero.
The key operation also results in the same movement (when [TARE] key is valid under the
Function Key Invalid setting in setting mode 2)
However, the operation is performed only when “ ” is on depending on the setting of
Restriction on the Tare Subtraction Function in setting mode 4. The range of Tare subtraction can be
selected from all range or 0 ＜ Tare ≦ Capacity.
* During Tare subtraction, “ ” lights.
9-4-4. Tare Subtraction Reset (TARE OFF) <Edge Input>
Reset the Tare by external input edge (OFF → ON).
This does not apply to Tare Weight.
The key operation also results in the same movement (when [TARE RESET]
key is valid under the Function Key Invalid setting in setting mode 2)
9-4-5. Hold (HOLD) <Level Input>
The weight value and comparison will be in a hold mode while external input is ON.
* “ ” blinks in a hold mode.
* Hold function is ineffective in Sequence Mode.
OFF
ON
Pulse width 50msec or more
OFF
ON
Pulse width 50msec or more
OFF
ON
HOLD
undefined section
(within 50mSec.)
To Next Page
