6.DISCHARGING CONTROL MODE
76
6-2. Simple Comparison Control and Sequence Control

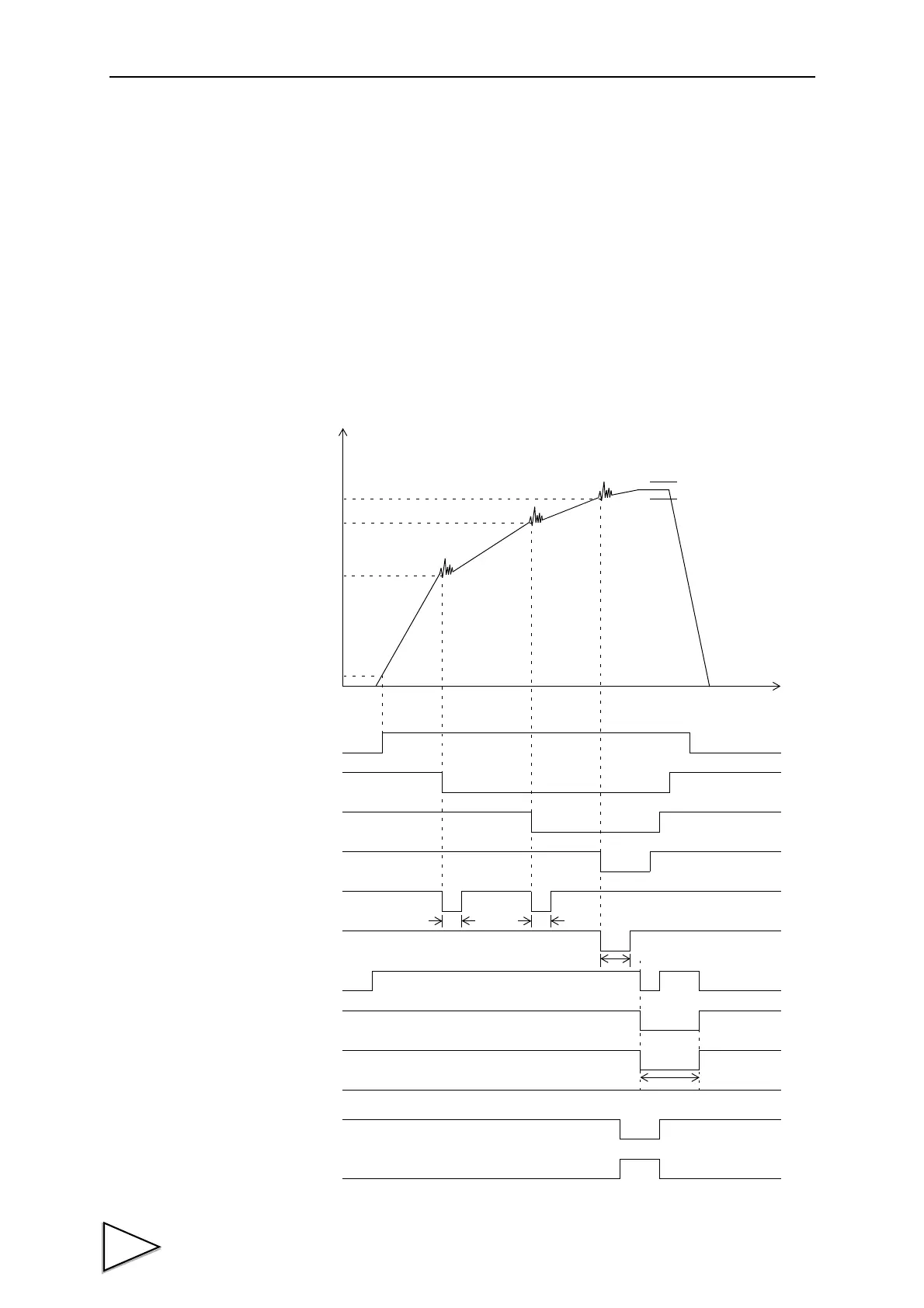

6-2-1. Simple Comparison
Compares weight value with discharging value regulerly.
Output is always ON when the weight value satisfies the conditions of final discharging setting
items.
In simple comparison control, the next weighing is judged to be possible when the weight falls
short of 25% of the Final after completion of the previous weighing.
Near Zero
Final – SP1
Final – SP2
Final – CPS
Final
0
NET
Over
Under
TIME
Near Zero
Stable
Complete
Complete Timer
OFF
ON
ON
ON
ON
ON
OFF
Over
Go
Under
ON
t3
t2
t1t1
ON
SP2
SP1
SP3
Comparison
Judging Timer
Inhibit Timer

Unipulse F701-C Specifications

General

Display	7-segment LED
Units	N, kg, lb
Power Supply	AC 100-240V, 50/60Hz
Interface	RS-232C, RS-485
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
