3.METHODS OF SETTING
36

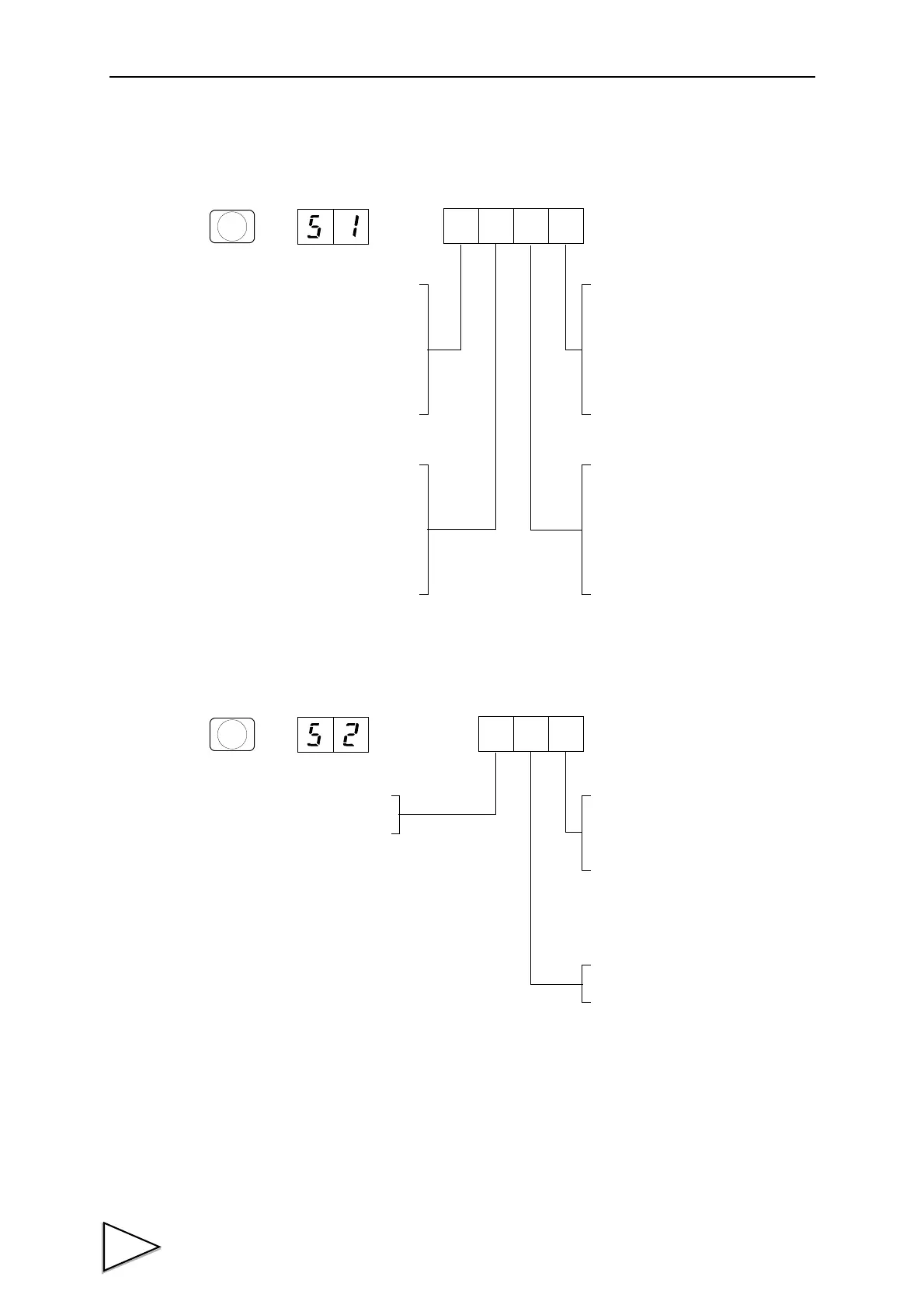

3-2-6. Setting Mode 5
- Input Selection
(For details, please refer to "9-4-11" on P.117.)
- Output Selection
Input selection 1 (B2 pin)
Input selection 3 (B4 pin)
6 : Accumulation Clear
5 : Accumulation Command
4 : Stop
3 : Start
2 : Feed/Discharge
1 : Judge
0 : HOLD
Input selection 2 (B3 pin)
1
UPPER
Input selection 4 (B5 pin)
6 : Accumulation Clear
5 : Accumulation Command
4 : Stop
3 : Start
2 : Feed/Discharge
1 : Judge
0 : HOLD
6 : Accumulation Clear
5 : Accumulation Command
4 : Stop
3 : Start
2 : Feed/Discharge
1 : Judge
0 : HOLD
6 : Accumulation Clear
5 : Accumulation Command
4 : Stop
3 : Start
2 : Feed/Discharge
1 : Judge
0 : HOLD
Output selection 3 (B11 pin)
1 : Accumulation Error
0 : RUN
Output selection 1 (B9 pin)
2 : Weight error
or sequence error
1 : Sequence error
0 : Weight error
Output selection 2 (B10 pin)
1 : Complete output
0 : Go output
2
LOWER
(For details, please refer to
"9-5-7" on P.119.)
(For details, please refer to
"6-11" on P.101.)
(For details, please refer to
"6-8" on P.93.)
