10.INTERFACE
139

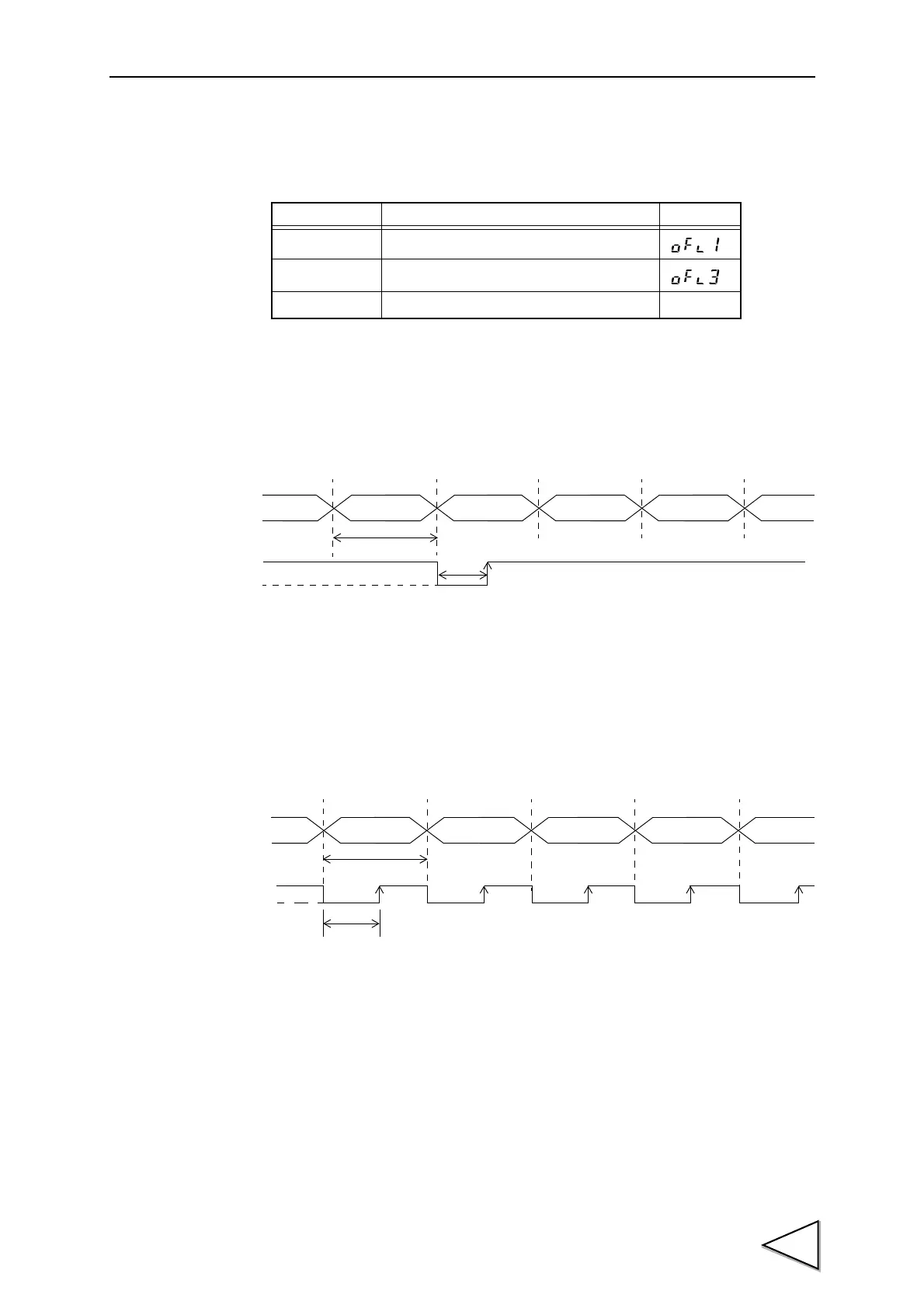

10-3-6. Over Status Output (OVER)
When weight values output as BCD data are on the following conditions, 1 (OVER) is output.
10-3-7. Print Command Output (P.C)
For reading data, use the pulse end edge.
It is output in synchronization with the complete signal when judgment is made on Over/Under
comparison.
10-3-8. Data Strobe (STROBE)
BCD data is updated at each time of A/D conversion, and strobe pulses are output in
synchronization with the BCD data.
For reading data, use the pulse end edge.
The data update rate is normally 200 times/sec., which is the same as the operating speed of the
main unit, but data may not be read with some connected external devices because the speed is too
fast. In such a case, set the data update rate longer (reduce the number of times).
Weight value Conditional expression
Net weight
Net weight ＞ Net over setting value
Gross weight
Gross weight ＞ Gross over setting value
Tare weight
Tare weight ＞ 99999
Strobe range
0
1
BCD data
P. C
Data update rate
BCD data
Strobe range
STROBE
0
1
Data update rate
duty 50％
To Next Page
