Unipulse F701-C User Manual

2.CONNECTION
15
2-5-2. How to Assemble the Connector
(1) Set the connector and screws (two) into the grooves of the case (one side).
(2) Cover with the other case, and fit the cases.
(3) Tighten the M2×8 pan-head machine screws (two).
Tighten the M2×10 pan-head machine screws (two).
Be aware that washers should be set to the M2×10 pan-head machine screws (two).

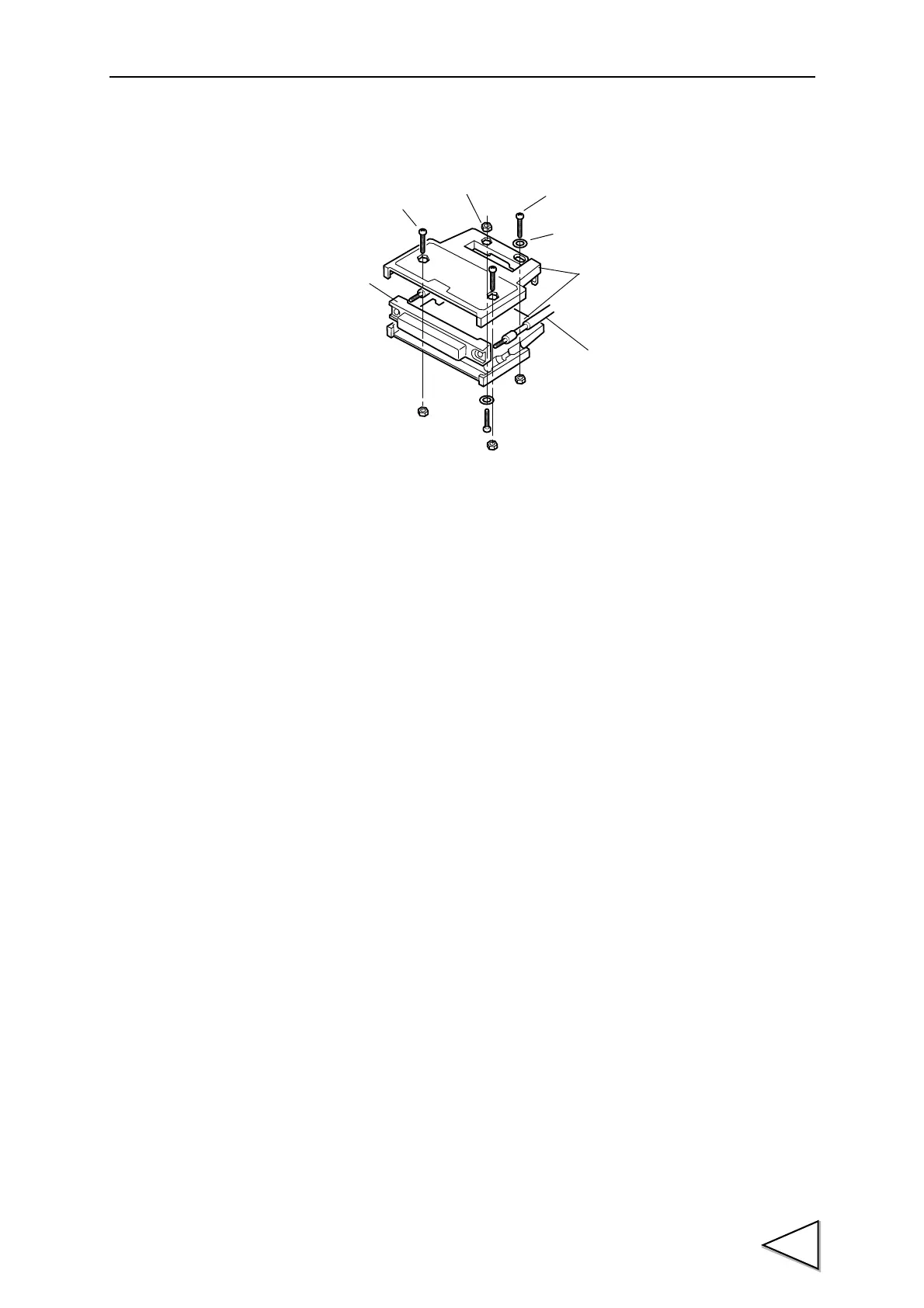

Connector
Pan-head machine screw
M2×8 (short) (two)
Nut M2 (four)
Pan-head machine screw
M2×10 (long) (two)
Washer (two)
Case (two)
Screw (two)
