16.MOUNTING ON A PANEL

169

16. MOUNTING ON A PANEL

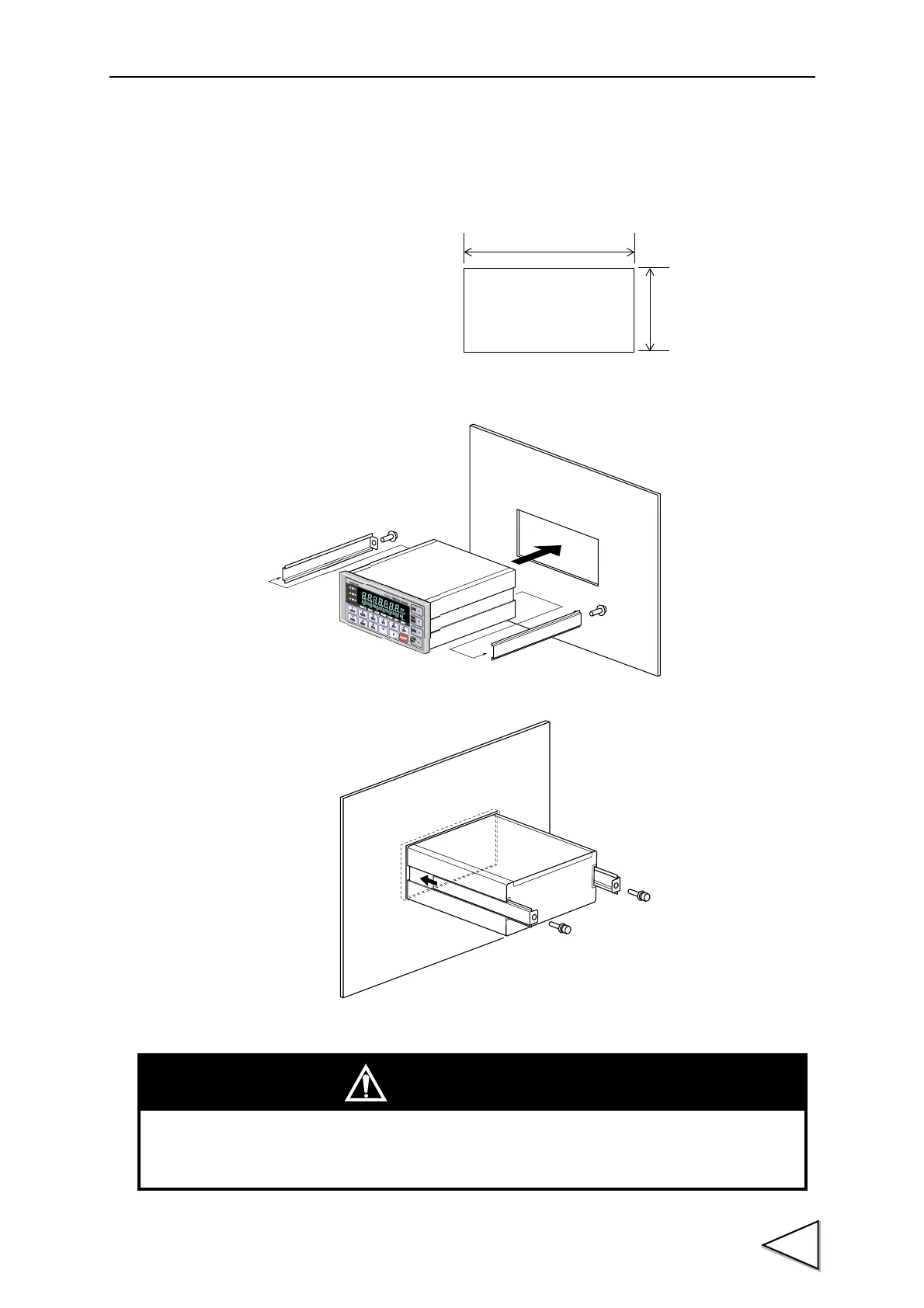

Please follow the procedure for mounting a panel to F701-C.

(1) Make a hole in the mounting panel.

(2) Remove the mounting rails on both sides of the controller, and insert the controller into the

panel.

(3) Insert the mounting rails into both sides from the back of the controller.

(4) Securely fix the mounting hardware on both sides with the attached M4 screws.

Panel cutout size

138W×68H (mm)

Unit : mm

138

Mounting panel thickness

1.6mm or more

For transportation after panel-mounting, consideration should be given so as not to give

excessive shocks or vibration.

CAUTION
