9.EXTERNAL INPUT/OUTPUT SIGNALS (CONTROL CONNECTOR)
119
9-5-5. Sequence Error
When the display is Err, the output turns ON.
* For the method of setting, refer to "6-11.Weight Error / Sequence Error" on P.101.
* For the error display, refer to "11.OVER SCALE & ERROR" on P.157.
9-5-6. RUN
This output turns ON when F701-C is ready to operate.
RUN can be outputted externally as the signal of output selection 3 by setting.
1) Select setting mode 5.
2) Set Output selection 3. (2-Output Selection)
9-5-7. Accumulation Error
The output turns ON when the number of accumulations is 10000.
The accumulation error can be outputted externally as the signal of output selection 3 by setting.
* For the method of setting, refer to "9-5-6.RUN" on P.119.
* For the accumulation error, refer to "7.STATISTICAL AND ACCUMULATION FUNCTION
SETTING AND OPERATION" on P.102.

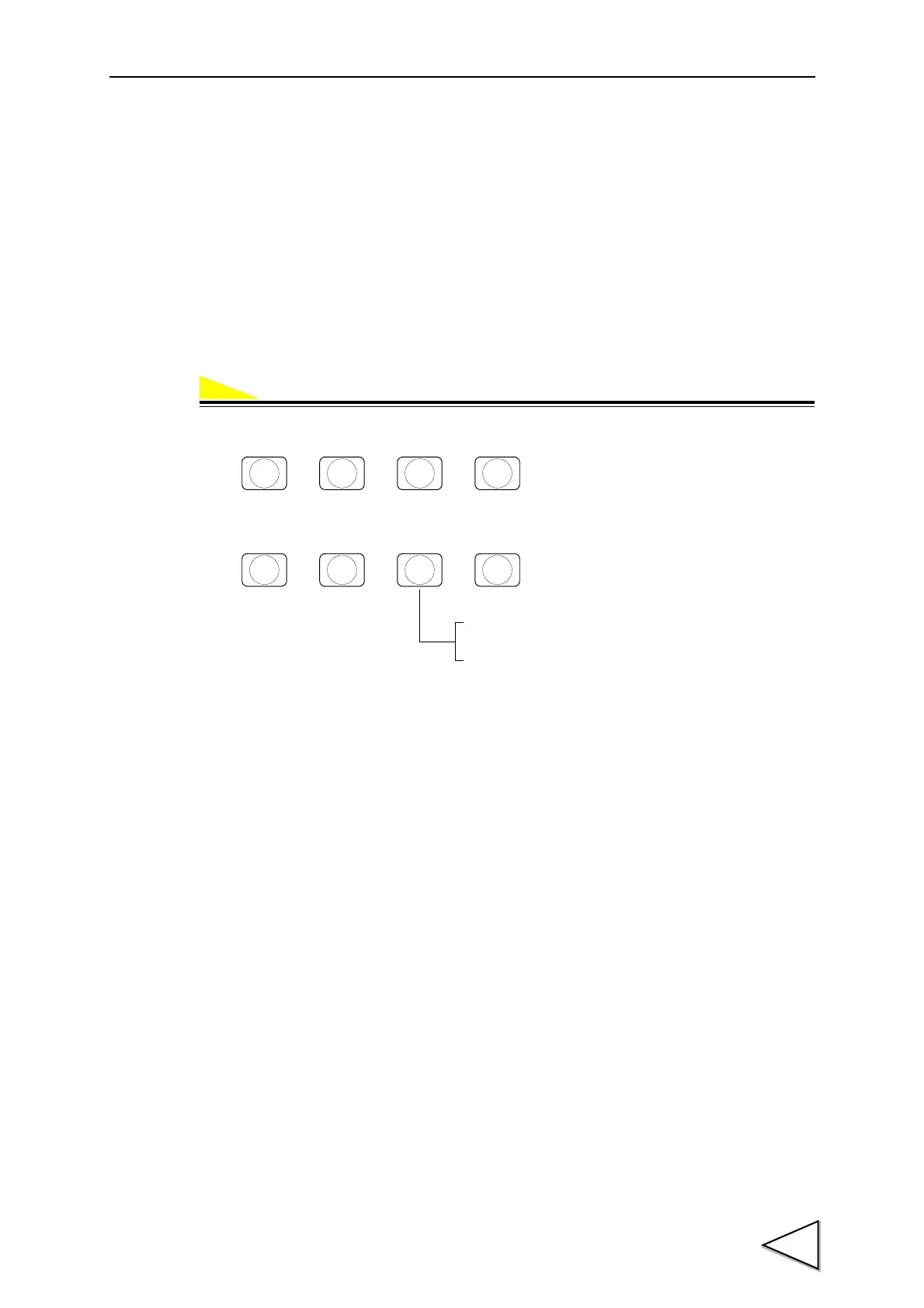

Output Selection 3 (B11 pin)
→→→
CNG/ENT CNG/ENT
2
LOWER
1 : Accumulation Error
0 : RUN
