Unipulse F701-C User Manual

5.FUNCTION SETTINGS
67

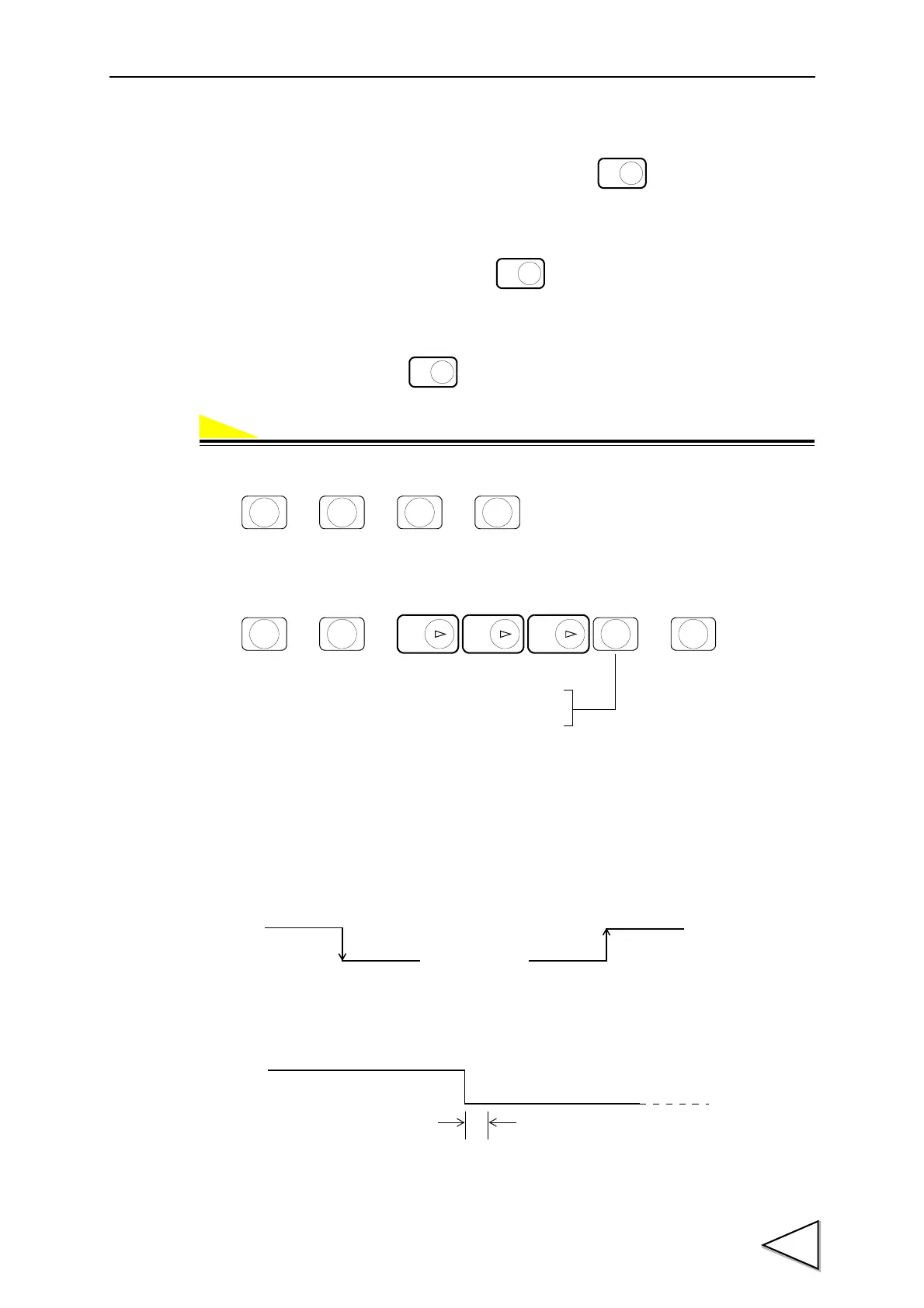

5-15. Switching Gross Weight/Net Weight Display
The switching Gross weight/Net weight is executed by pressing on the main display. It can
be switched over ON/OFF by using the signal from control connector to avoid false operation on
the display.
- Internal key mode ............. Switching with the key on the normal screen.
Switching with the signal (edge input) from the control connector.
- External input mode .........Switching with the signal (revel input) from the control connector.
When external switch over is set, on the main display becomes invalid.
Operation
1) Select setting mode 4.
2) Select from Internal key mode/External input mode.
(7-External Function Selection)
- Switching by external signal (A2pin)
- In internal key mode
Net weight display results on the ON edge (OFF → ON) of the external input.
Gross weight display results on the OFF edge (ON → OFF) of the external input.
- In external key mode
Net weight display results at ON, and Gross weight display results at OFF.
GROSS
/NET
ＥＳＣ
GROSS
/NET
ＥＳＣ
GROSS
/NET
ＥＳＣ
→→→
F CNG/ENT CNG/ENT
4
SP1
Switching Gross weight/Net weight display
1 : External input mode
0 : Internal key mode
→→ →
ZERO
7
OVER
CNG/ENT
ZERO ZERO
CNG/ENT
OFF
Net weight display
ON
OFF
Gross weight display
ON
Gross weight display
Net weight display
OFF
ON
Undecided interval (within 50ms)
