10-2. RS-232C Interface
10-2-1. Communication Specifications
1.Specifications
Signal level : Based on the RS-232C
Transmitting distance : Approx. 15m (16.4yd.)
Transmitting method : Asynchronous, full duplex
Transmitting speed : 1200, 2400, 4800, 9600, 19200 or 38400 bps selectable
Bit configuration : Start 1 bit
Character length 7 or 8 bits selectable
Stop 1 or 2 bits selectable
Parity none, odd or even selectable
Code : ASCII

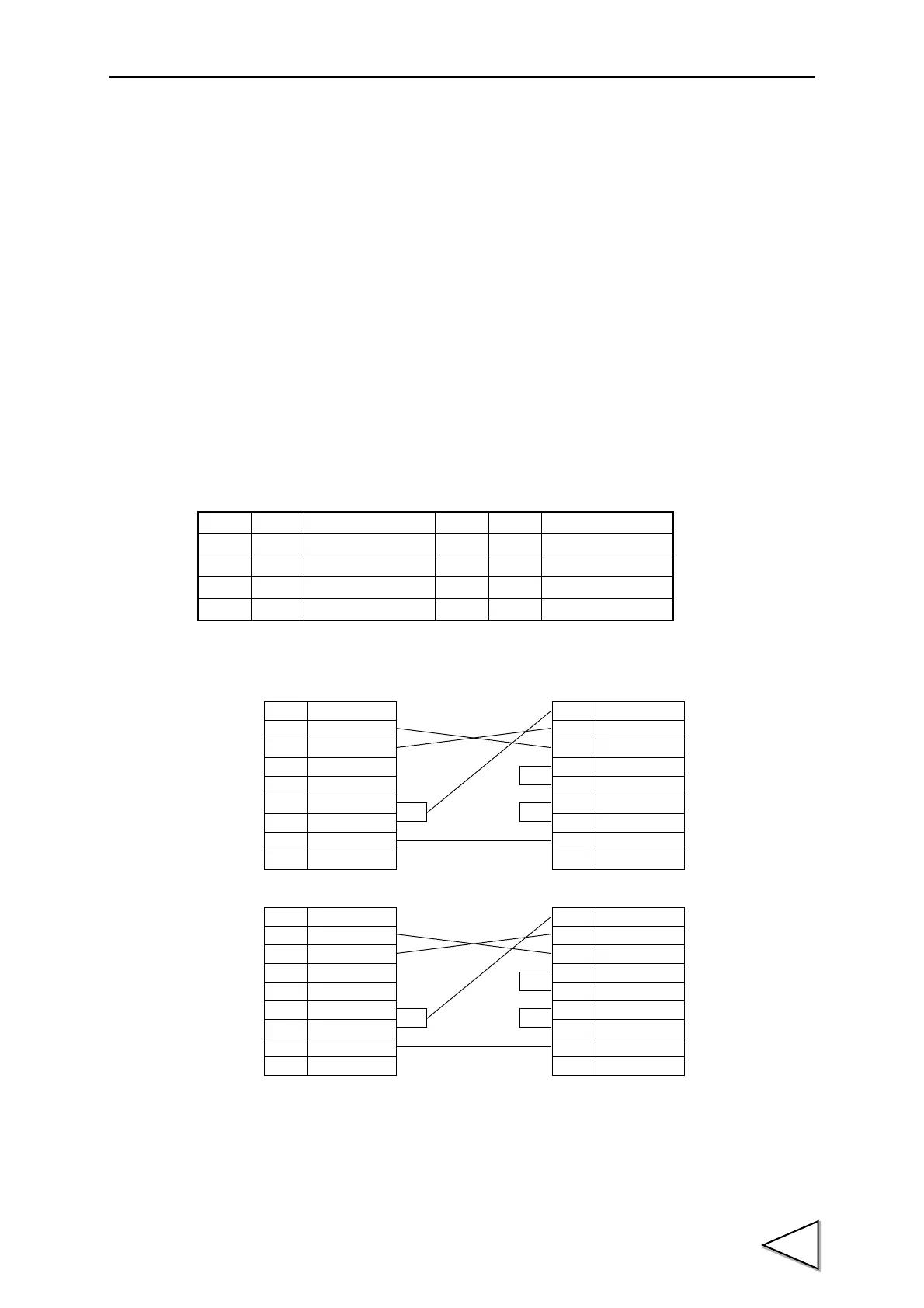

2.Connector pin assignment
10-2-2. Cable
The above diagram is for connecting a personal computer as a DTE (Data Terminal Equipment)
device. If it is a DCE (Data Circuit-terminating Equipment) device, connect pin to pin (DTR to
DTR, DSR to DSR etc.).
Cables should be prepared after checking connector type and pin assignments of the connected
device.
Adaptable connector : 9-pin D-SUB connector
(JAE DE-09SN, OMRON XM3D-0921 etc)
16
2 In RXD 7 Out RTS
3 Out TXD 8 In CTS
49
5
＊
GND
Cross type
1
2RXD
3TXD
4
6
7RTS
8CTS
5 GND
9
1CD
2RXD
3TXD
4DTR
6DSR
7RTS
8CTS
5GND
9RI
personal computer (9-pin)F701-C
Cross type
1
2RXD
3TXD
4
6
7RTS
8CTS
5 GND
9
8CD
3RXD
2TXD
20 DTR
6DSR
4RTS
5CTS
7GND
1FG
personal computer (25-pin)F701-C
