6.DISCHARGING CONTROL MODE
79
● t1 : Comparison Inhibit Time Comparison Inhibit Time in setting mode 1
t2 : Judging Time Judging Time in setting mode 1
t3 : Complete Output Time Complete Output Time in setting mode 1
● Conditional expression
- Near Zero turns ON when Weight value ≦ Set value of Near Zero
* Set Point 1 / Set Point 2 / Set Point 3 feeding gate signal is turned ON at the ON edge (OFF
→ ON) of the start signal.
- SP1 turns OFF when Weight value ≧ Final - SP1
- SP2 turns OFF when Weight value ≧ Final - SP2
- SP3 turns OFF when Weight value ≧ Final - CPS
- Under turns ON when Weight value ＜ Final - Under
- Over turns ON when Weight value ＞ Final + Over
- Go turns ON when Final + Over ≧ Weight value ≧ Final - Under
● Select the weight value for Near Zero comparison from Gross weight/Net weight (Weighing
Function 1 in setting mode 2).
● Select the comparison weight value for Set Point 1, Set Point 2 and Set Point 3 output signals,
and Over, Go and Under judgment signals from Gross weight/Net weight (Weighing Function 1
in setting mode 2).

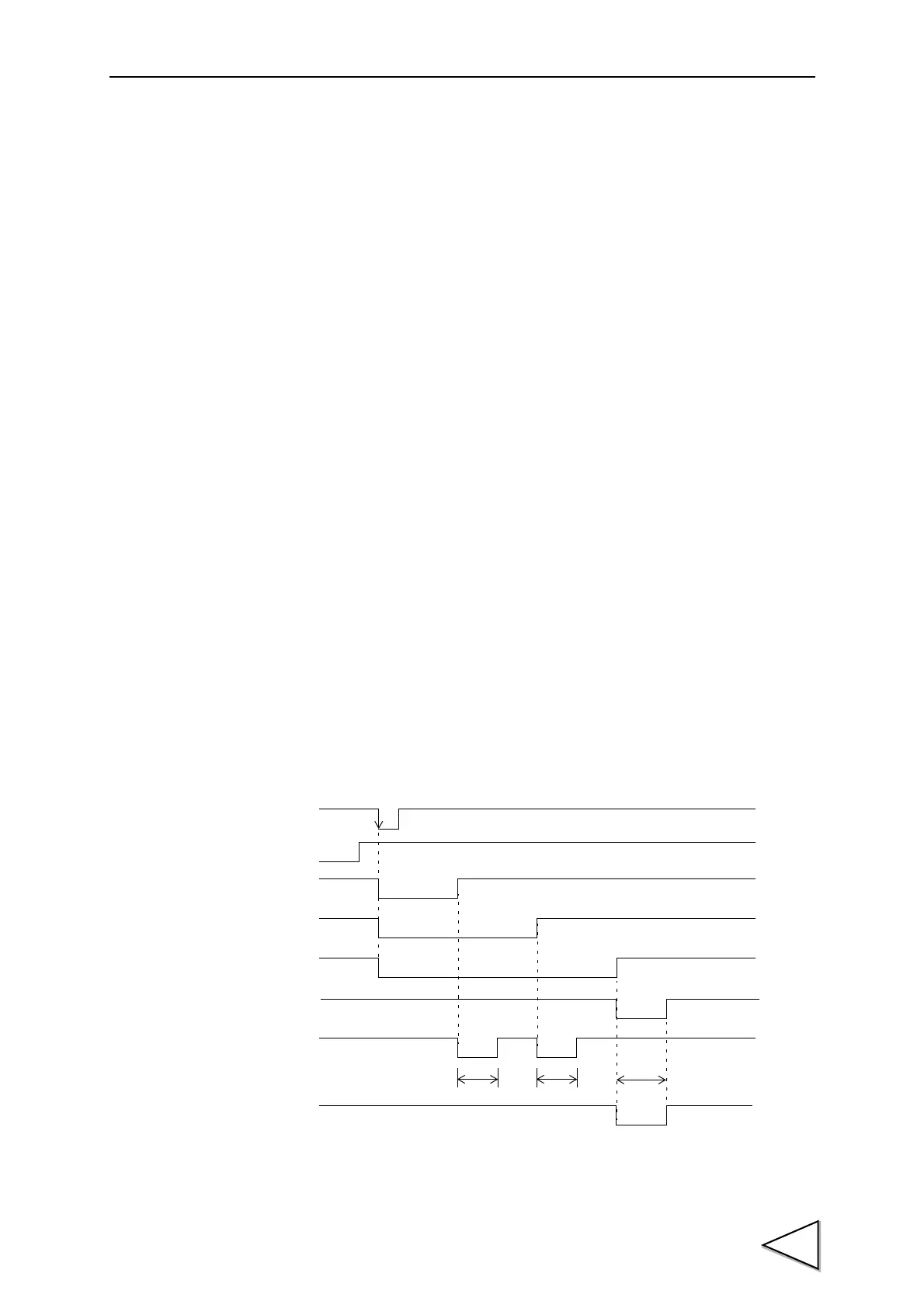

② Normal sequence control (without Over/Under judgment)
● When the setting of Judging Times in setting mode 1 is 00, Over/Under judgment is not made.
START
STOP
ON
OFF
ON
ON
ON
ON
t3t1t1
SP1
SP2
SP3
Complete
Completion Timer
Comparison Inhibit Timer
To Next Page
