WAGNER TITANUS User Manual

TITANUS MICRO·SENS
®
Installation
MS_A_05-en-e Data: 01/09 5 – 5
5.2.2 Connecting the air sampling pipe
Aspiration pipe

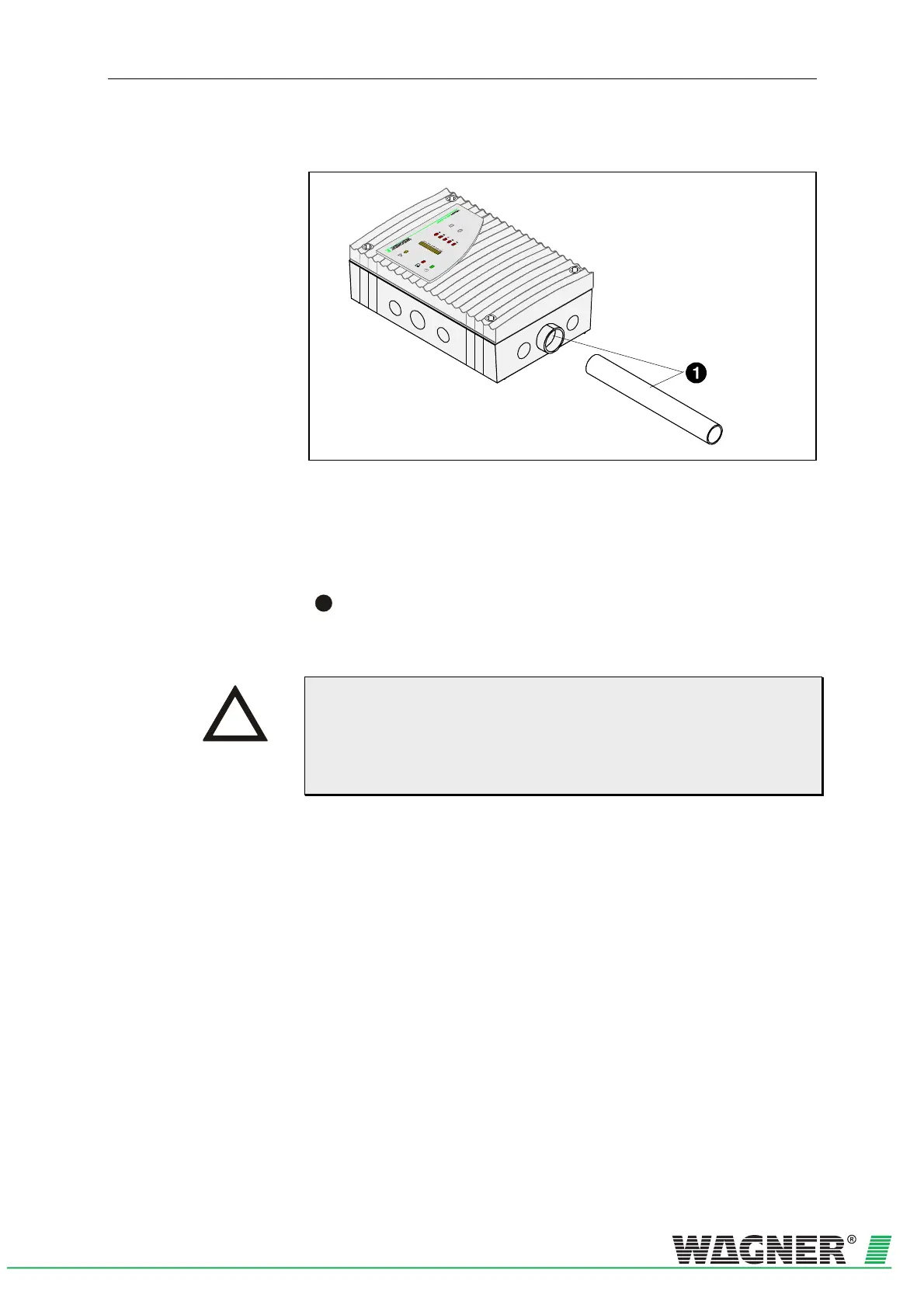

Fig. 5.4: Connecting the aspiration pipe to the TITANUS MICRO·SENS
®
air sampling
smoke detector
When connecting the air sampling pipe to the TITANUS MICRO·SENS
®
the following steps must be taken:
Connecting the
air sampling pipe
1
To join the air sampling pipe to the TITANUS MICRO·SENS
®
,
push it into the pipe connection provided for the purpose.
Under no circumstances use adhesive to join the air sampling pipe and
pipe connection together.
Where there are widely oscillating temperatures, the pipe must be fixed
firmly immediately in front of the device such that the pipe is not pulled
out of the connection by changes in length which occur (see Chapter
6.1).
INSTRUCTION

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
