TECHNICAL MANUAL
REMOTE INPUT BOARD FUNCTIONS
The following remote functions are supported:
• ZR - ZERO (Zero scale)
• TR - TARE (Tare current weight from scale)
• CL - CLEAR (Clear tare)
• GR - GROSS (Switch to Gross weighing mode)
• PR - PRINT (Print ticket)

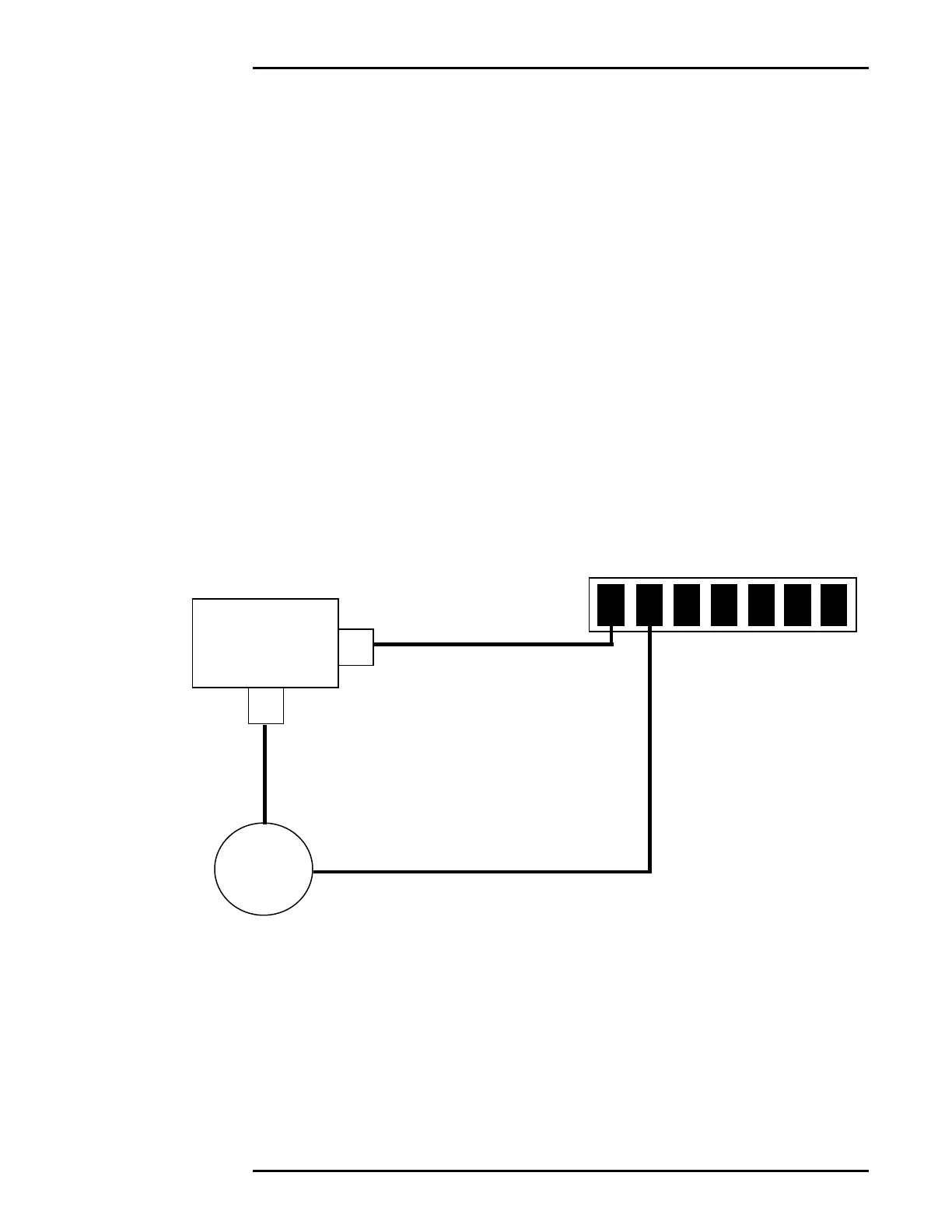

EXAMPLE: CONNECT A REMOTE ZERO SWITCH. WIRING DIAGRAM.
TRIGGERING THE SWITCH WILL ZERO THE M2000.
POWER
SUPPLY
(24 VDC)
SWITCH
+
-
+24V ZR
