HIGH SPEED DIGITAL WEIGHT INDICATORS
24

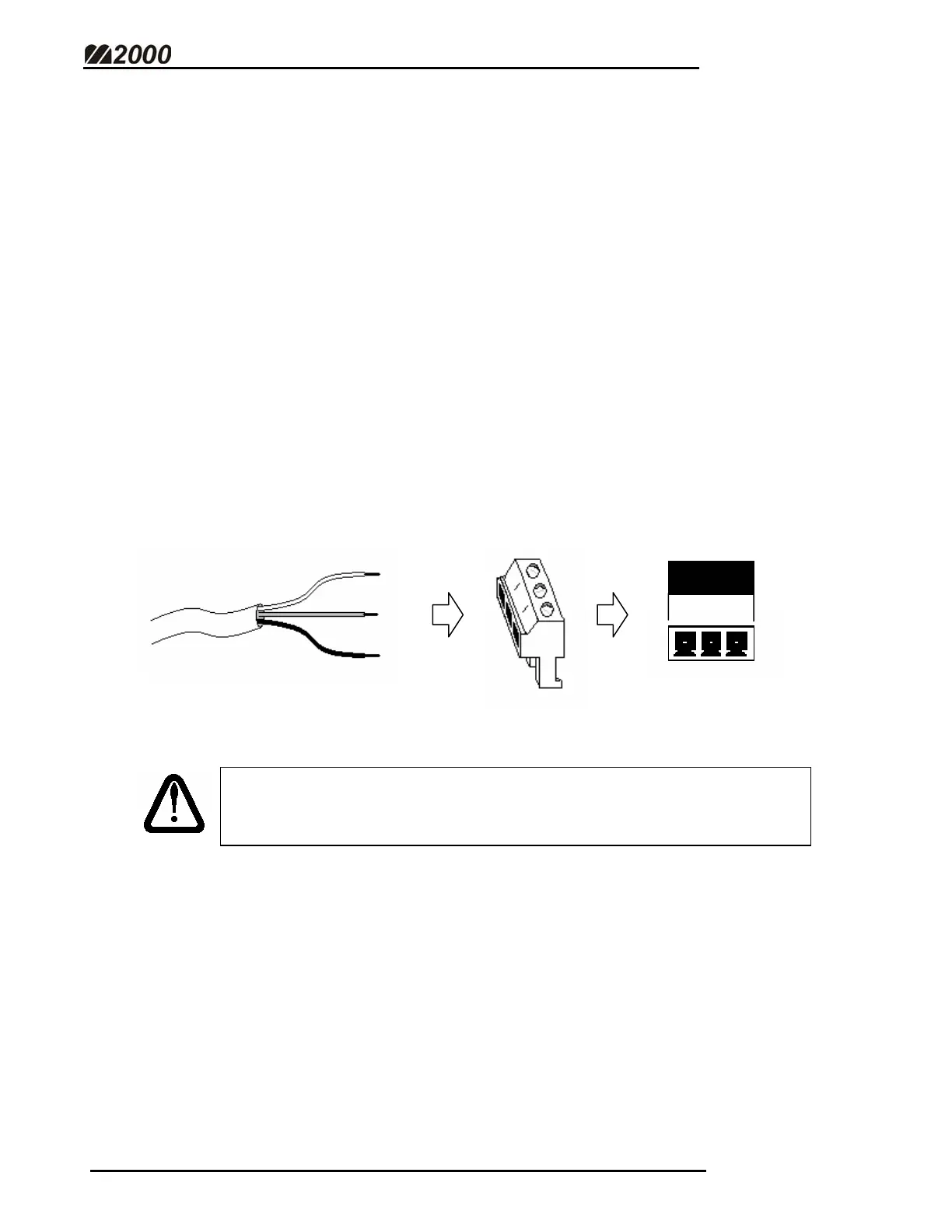

WIRING POWER TO M2000 INDICATORS
1. Pass the power cable through the strain-relief, into the enclosure
(Not required for Slimline models).
2. Terminate the power wires to the connector in the terminal labeled
“12VDC”, making sure each wire is securely fastened in the
appropriate position.
• The “HOT” wire from the 12 VDC Power Supply connects to
the “+” terminal.
• The “NEGATIVE” wire from the 12 VDC Power Supply
connects to the “-” terminal.
• Make sure the Earth Ground wire is securely connected to
the “GND” terminal.
PLEASE PAY CLOSE ATTENTION TO THE POLARITY OF THE
POWER CORD! WIRING POWER INCORRECTLY MAY DAMAGE
THE M2000!
12VDC
