Western Scale M2000 - Scale Systems with Multiple Loadcells

23
TECHNICAL MANUAL
IMPORTANT WIRING NOTE!

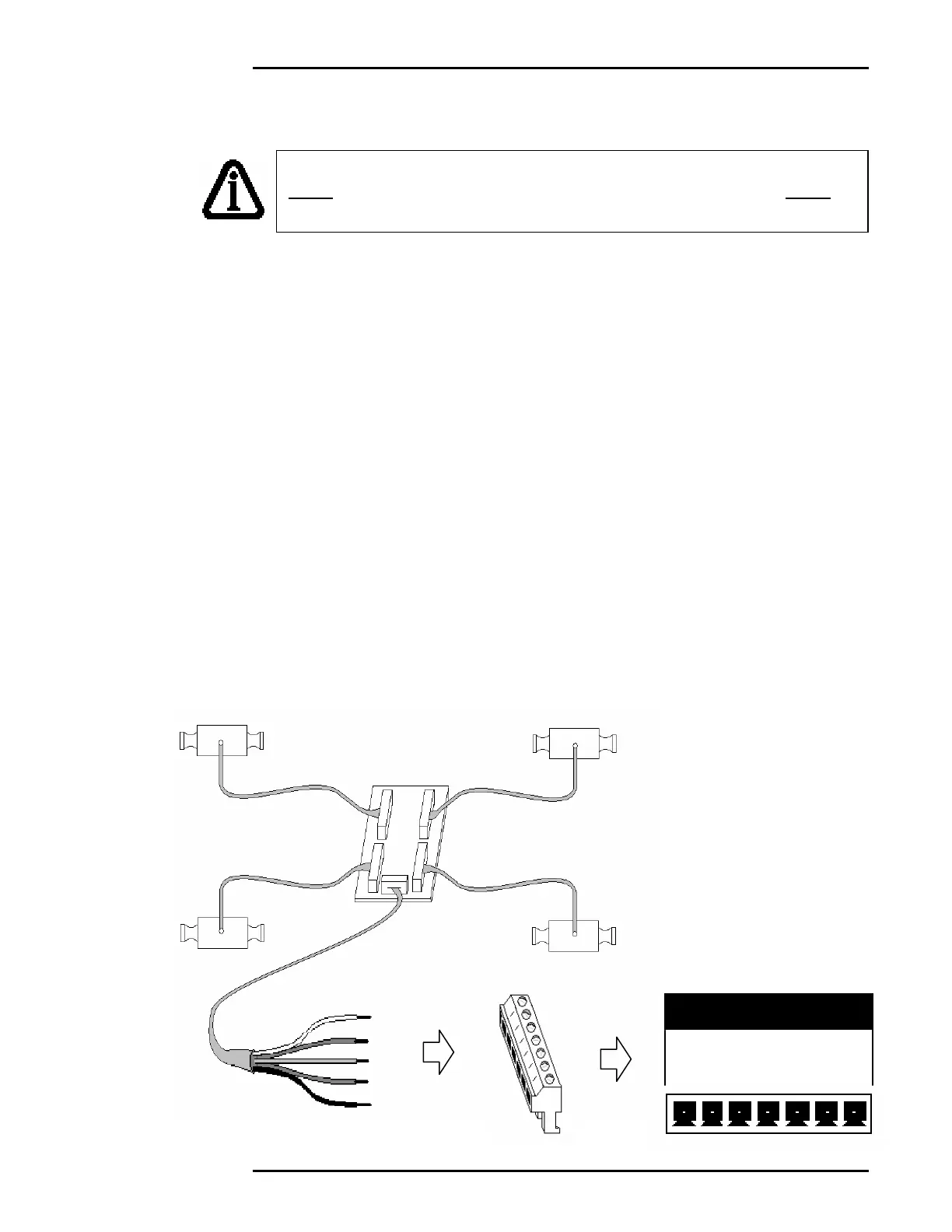

SCALE SYSTEMS WITH MULTIPLE LOADCELLS
These systems typically utilize a Summation board that is wired to the
M2000A using 7 pin terminal connectors. The connectors can be
unplugged from the M2000 to make wiring easier.
• Terminate the loadcell wires at the Sum board, making sure each
wire is securely fastened in the appropriate position.
• Pass the cable from the Sum board through the strain-relief, into the
enclosure (Not required for Slimline models).
• Terminate the wires from the Sum board to the connector. Make
sure each wire is securely fastened in the appropriate position.
• Plug the connector into the appropriate terminal (Scale Channel).
• Re-assemble the M2000 enclosure as necessary.
When connecting loadcells without SENSE wires, the +EXC wire
must be jumpered to the +SNS terminal and the –EXC wire must
be jumpered to the –SNS terminal.
-EXC
-SNS
+EXC
SHLD
-SIG
+SIG +SNS
CHANNEL 1
