HIGH SPEED DIGITAL WEIGHT INDICATORS
88

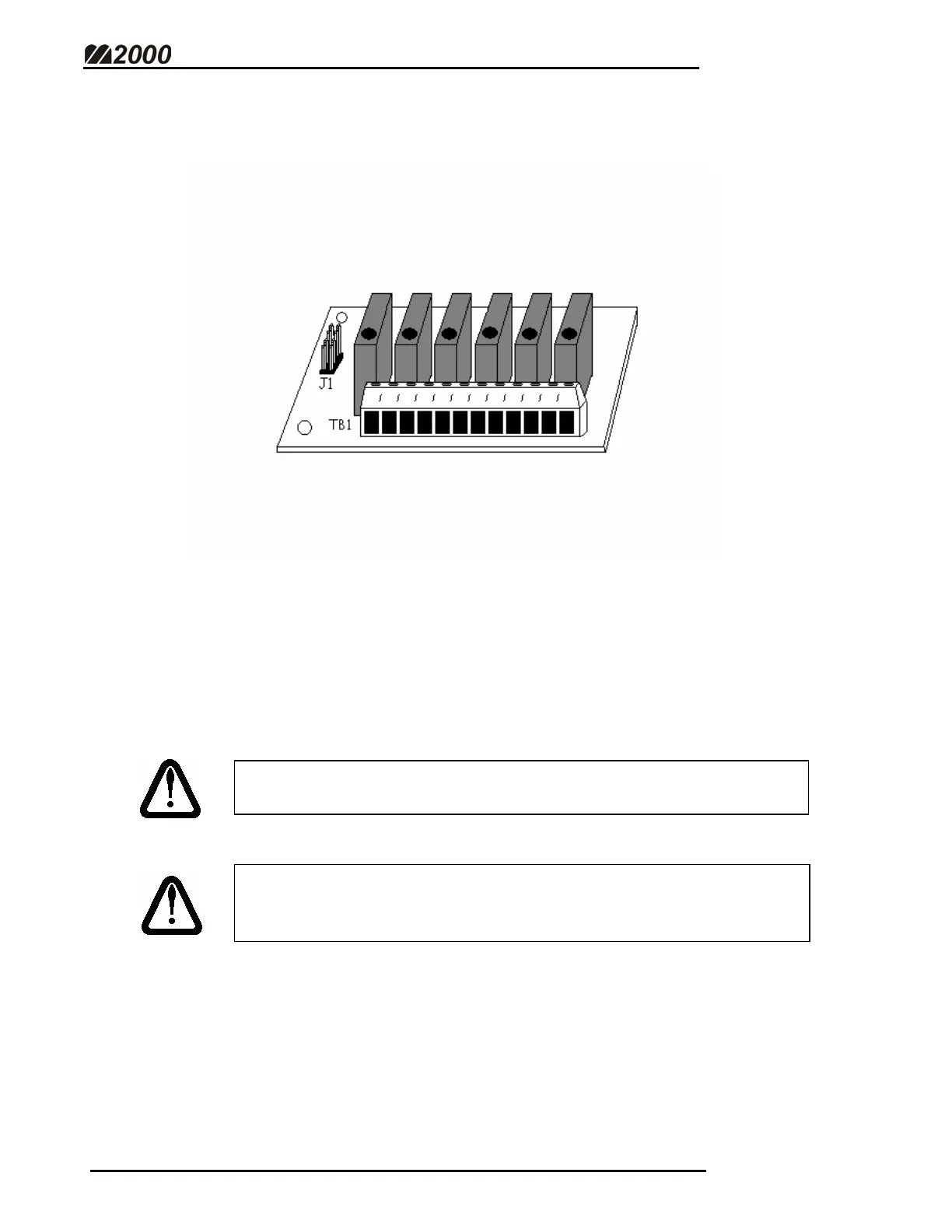

SETPOINT OPTION BOARD
There are a total of 6 Setpoints available on the M2000. Any of the 6 Setpoints
can be assigned to any of the 3 channels. Once a Setpoint is assigned to a
scale channel, it is not available for use by the other channels. The Setpoint
Board connects to the SMARTWIRE BRIDGE INTERFACE and uses solid-state
relay modules to switch AC and DC loads.
CONNECTING THE SETPOINT BOARD
• Using the ribbon cable provided, connect J1 on the Setpoint board to J1
on the SMARTWIRE Bridge Interface board.
• Make sure the boards have adequate clearance between them.
• Make sure the SMARTWIRE Bridge Interface board has been wired
properly to the SMARTWIRE terminal.
FOR THE SETPOINT BOARD TO WORK, PARAMETER 59
MUST BE ENABLED!
IF, FOR ANY REASON, THE M2000 STOPS TRANSMITTING
COMMANDS TO THE SETPOINT BOARD, ALL OUTPUTS WILL
BE RESET TO “OFF”.
