Maintenance
3140−1/A1
Winterthur Gas & Diesel Ltd.
1/ 2
Removal and Installation
Tools:
2 Spur-geared chain block 94017-006 2 Eye bolt 94045-M36
2 Shackle 94018A 1 Lifting plate / link 94321
1 Chain 94019C
1. Removal
When the 2-part gasket (11 or 12, Fig. 1) must be removed from the axial damper, do
the procedure that follows:
1) Read the data in 0012−1 General Guidelines for Lifting Tools.
2) Remove the pipes (7, 8).
3) Remove the top housing (1).
4) Remove the oil supply pipe (6).
5) Remove the six bolts (5) and the four screws (4) from the top housing (1).
6) Remove the 2-part gaskets (9, 10).
Note: Engine operation does not usually cause the 2-part gaskets to become
worn. The 2-part gaskets must be replaced if they do become worn, or if
contamination causes damage.
7) Examine the 2-part gaskets (9, 10) for damage and contamination. If necessary,
replace the 2-part gaskets.
For more data about the Axial Damper, refer to the Operation Manual 3140−1.
8
7
1
6
5
3
2
9
10
WCH01218
I - I
4
I
I
10

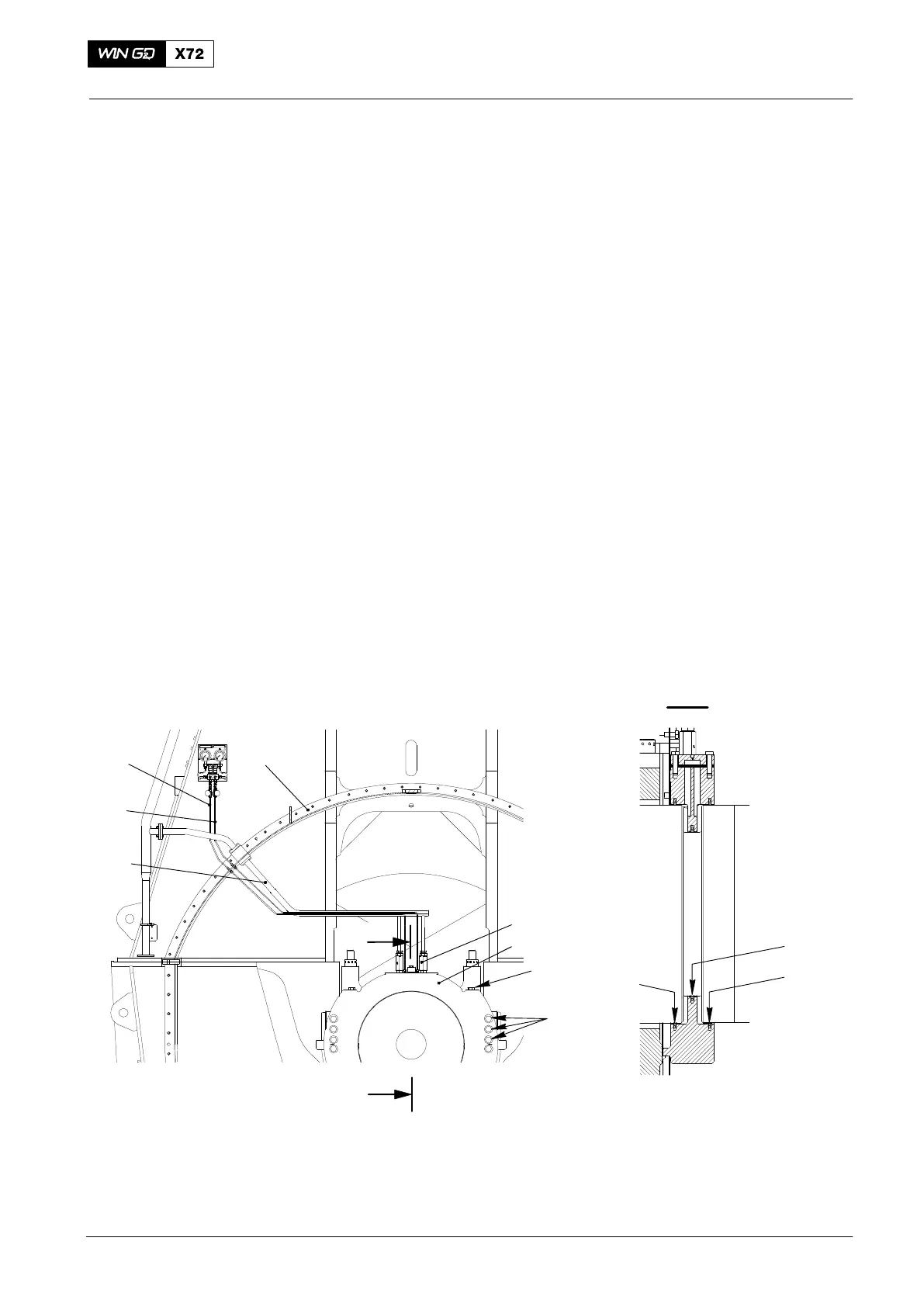

Fig. 1
6
2015
Axial Detuner
