WinGD X72 Maintenance Manual

Maintenance5591−1/A1
Winterthur Gas & Diesel Ltd.
2/ 8
2.2 Pinions and Camshaft Gear Wheel

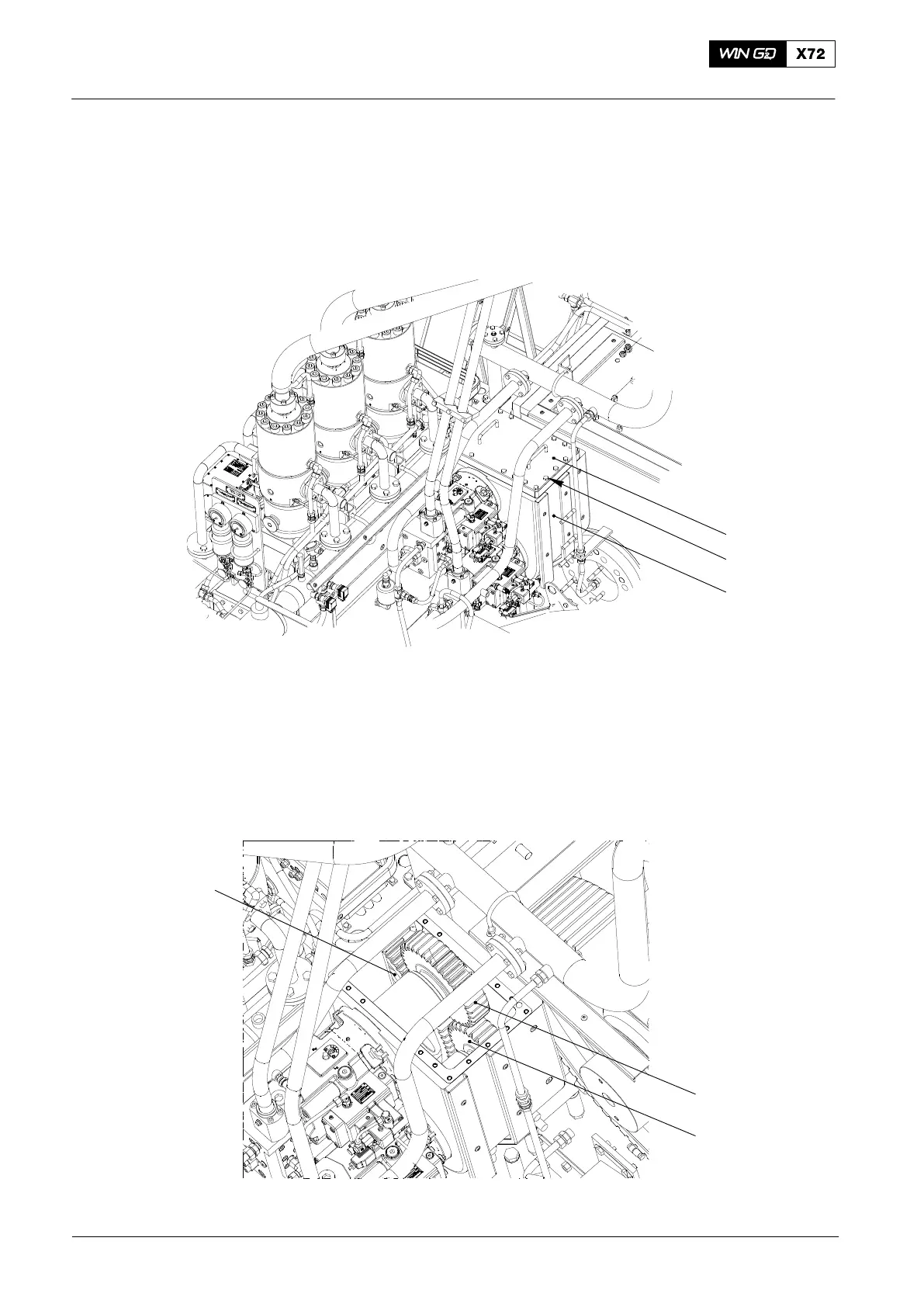

1) Remove the 20 screws (2, Fig. 2).
2) Remove the cover (1) from the supply unit casing (3).
1
2
Fig. 2
3
WCH02395
3) Do a check of the pinions (1 and 2 Fig. 3) and the camshaft gear wheel (3) for
wear and damage (see 0330−1 Clearance Table, Servo Pump Unit).
4) If there is too much wear and / or damage, you must replace the pinions (1, 2)
and the camshaft gear wheel (3).
5) Attach the cover (1, Fig. 2) with the 20 screws (2) to the supply unit casing (3).
Fig. 3
2
1
3
WCH02634
2015
Servo Oil Pump − Removal and Installation
