WinGD X72 Maintenance Manual

Maintenance
2303−1/A1
Winterthur Gas & Diesel Ltd.
7/ 12
2.5 Piston rod gland − installation
To install the piston rod gland 1, do the steps that follow:
1) Apply lubricating oil to the opening in
the cylinder jacket (3) and to the area
of the O-rings (4) on the housing (2,
Fig. 11).
2) Make sure that the distance holders
94230 are attached to the piston rod
(see Fig. 3).
3) Make sure that the support (5) is
installed onto the cylinder jacket (3)
(see Fig. 4). If necessary, torque the
outer bolts 7 to 150 Nm.
4) Install the piston with the piston rod
gland, refer to 3403−1 (Installation of
the Piston, paragraph 4)
5) Remove all tools and equipment from
the area.
2014
Replace, Assembling, Wear Measurement

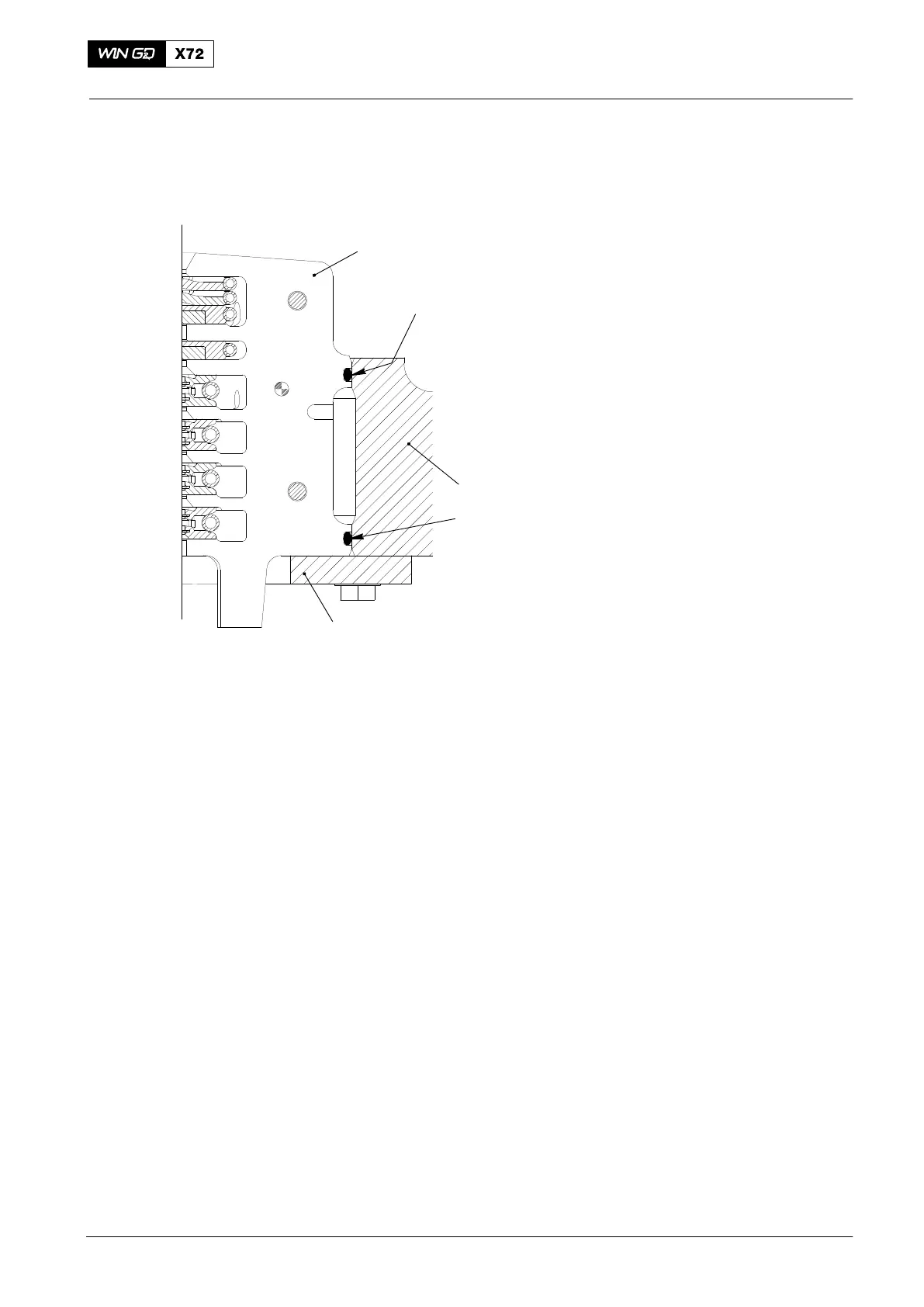

Fig. 11
WCH02292
3
4
4
2
5
