Maintenance
5562−3/A1
Winterthur Gas & Diesel Ltd.
1/ 5
Removal and Installation
Tools:
No tools needed
1. General 1..........................................................
2. Preparation 2.......................................................
3. Removal 3.........................................................
4. Inspection 3........................................................
5. Installation 4.......................................................
6. Completion 5.......................................................
7. Storage 5..........................................................
1. General
It is possible to do the maintenance of the flow limiting valve (FLV) on board. Speak
to, or send a message to WinGD to get a repair kit including instruction:
Maintenance on the flow limiting valve must only be done by approved personnel who
have the special knowledge of the flow limiting valve. If personnel are not approved,
send the FLV to a WinGD service station for overhaul.
RS
1
24
3
RS
5
6

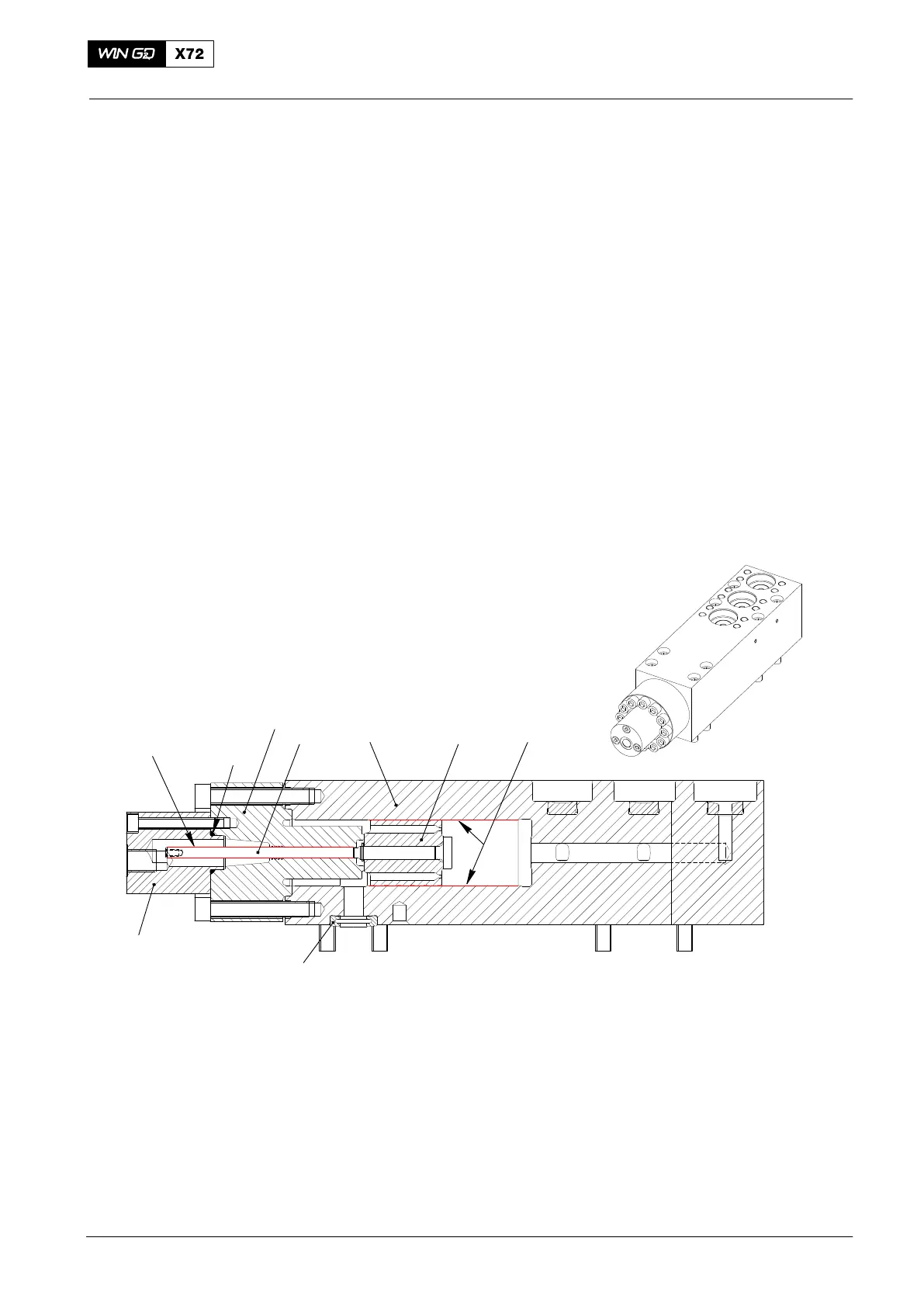

Fig. 1
WCH03228
7
Fig. 1 Flow Limiting Valve
1 Valve block 5 Cover
2 Piston 6 Lip seal
3 Flange 7 O-ring
4 Piston rod RS Running surface
Flow Limiting Valve
