WinGD X72 - 6545-1;A1

Maintenance
6545−1/A1
Winterthur Gas & Diesel Ltd.
3/ 7
CAUTION
Damage Hazard: Do not
put the electric motor on
the floor without an
applicable support or
damage to the impeller can
occur.
6) Use the lever chain hoists (94016-009)
to carefully move the electric motor (3,
Fig. 3) and impeller (2) out of the
casing (1).
7) Lower the electric motor (3) and
impeller (2) to almost the same height
as the platform.
8) Attach the shackle (94018C) and the
chain block (94017-006(1)) to the
lug (4).
9) Attach the chain block (94017-006(1))
to the slings (94650).
10) Carefully release the tension on the
lever chain hoists (94016-009) until the
electric motor (5) and impeller (2) are
below the chain block (94017-006(1))
(see Fig. 4).
11) Remove the lever chain hoists
(94016-009).
12) Attach the chain block (94017-006(2))
to the trolley (94021).
13) Attach the chain block (94017-006(2))
to the slings (94650).
14) Carefully release the tension on the
chain block (94017-006(1)) until the
electric motor (3) and impeller (2) are
below the chain block (94017-006(2)).
15) Remove the chain block
(94017-006(1)).
16) Move the electric motor (3) and
impeller (2) out of the area.
17) Put the electric motor (3) and
impeller (2) on an applicable surface.
18) Remove the two slings (94650) and
chain block (94017-006(2)).
2015
Auxiliary Blower: Maintenance
WCH02412
94650
94016-009
94018C
94017-006(1)
WCH02412
94021
2
94017-006(2)
5
94650
3
94017-006(1)

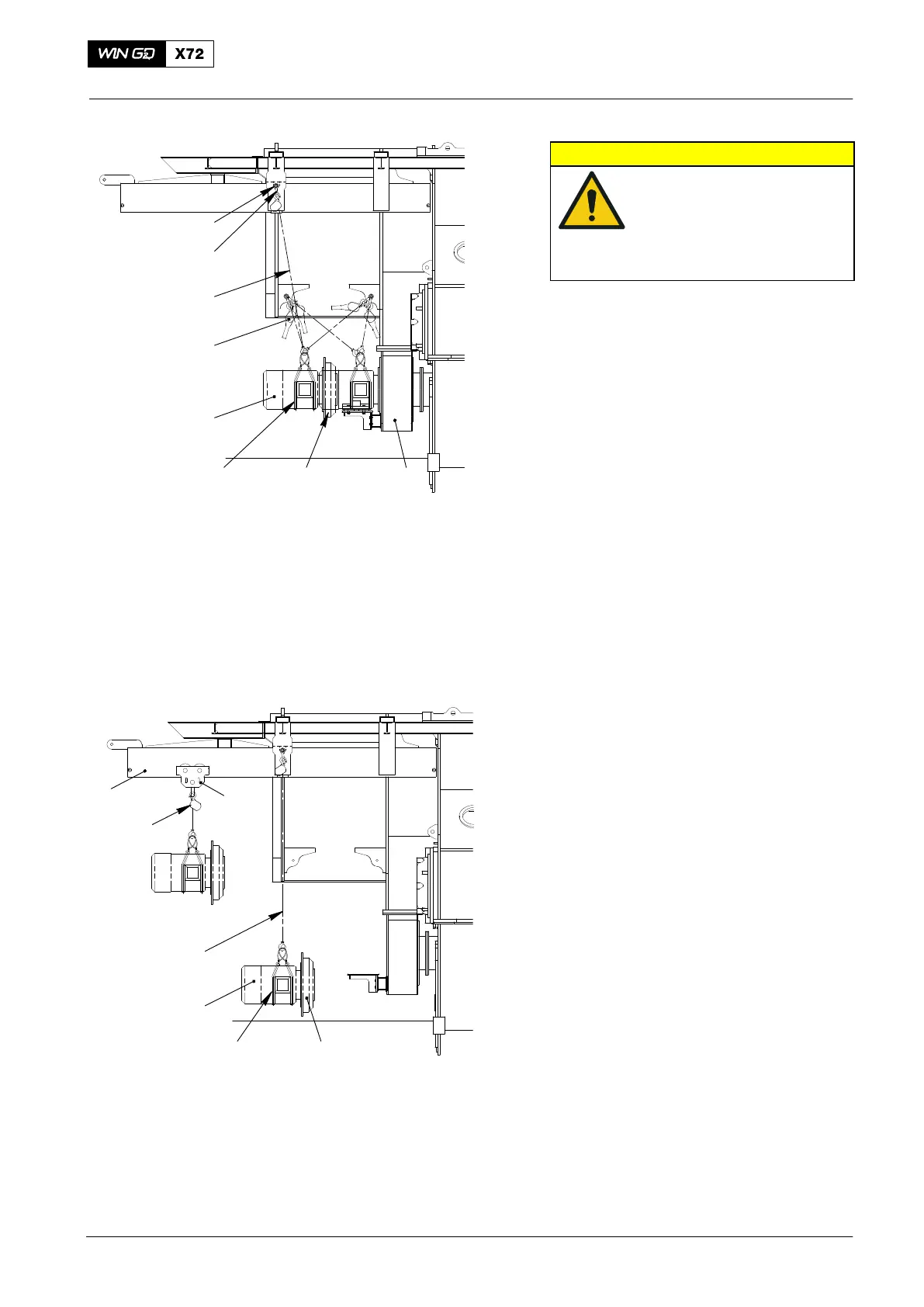

Fig. 3
Fig. 4
12
3
4
