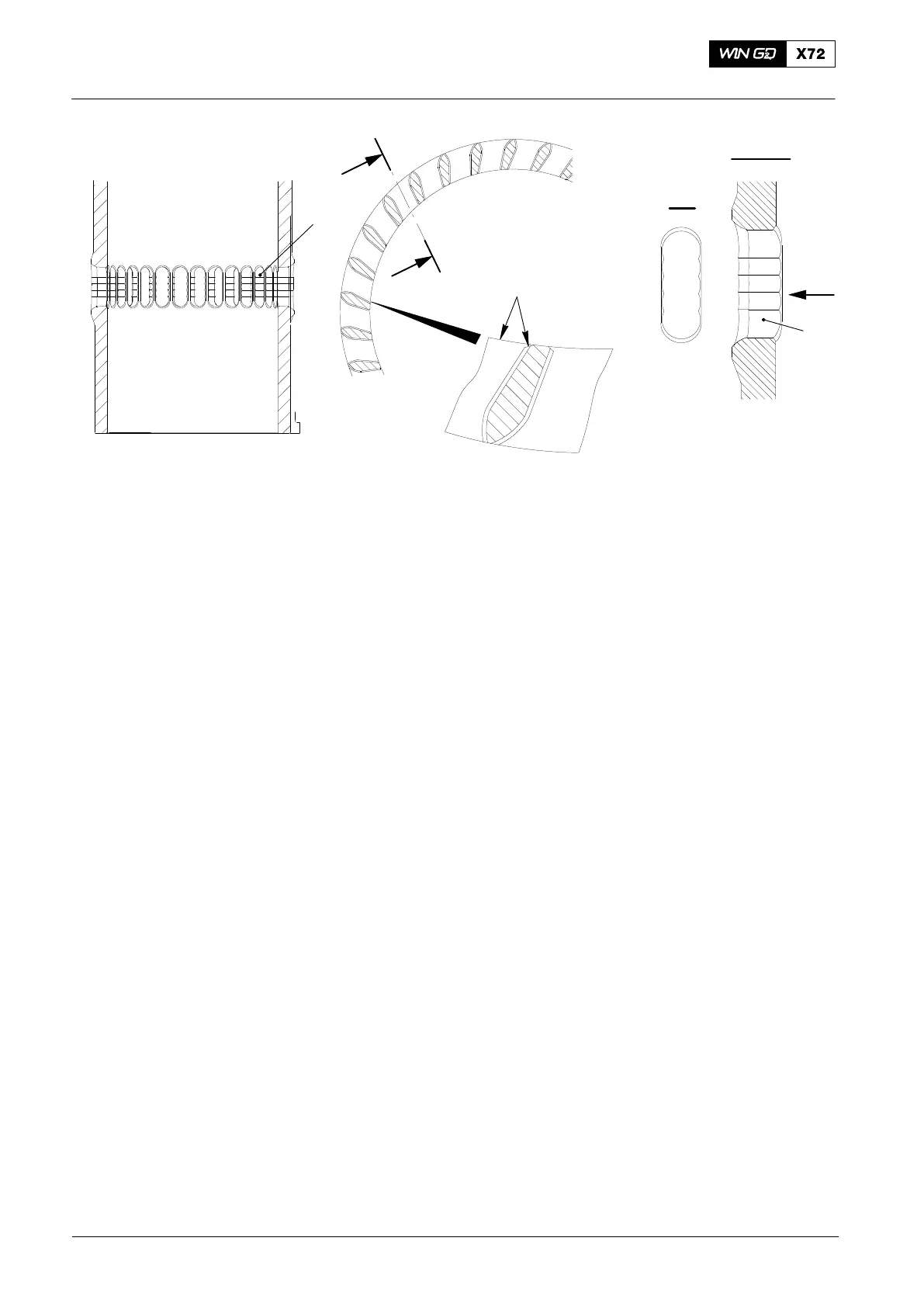

Fig. 3
1
1
2) After the repair is completed, fully clean the lubricating grooves and the bore of
the cylinder liner.
3) Remove unwanted particles, which may have passed into the scavenge space
through the ports.
4) Manually operate the cylinder lubrication until oil flows from all the lubricating
points. This will flush away unwanted metal dust.
2015
Remove Unwanted Material, Dress the Lubricating Grooves and Scavenge Ports
