WinGD X72 - Top End Bearing Cover − Removal, Inspection and Installation; 3303−5;A1

Maintenance
3303−5/A1
Winterthur Gas & Diesel Ltd.
1/ 4
Top End Bearing Cover − Removal, Inspection and
Installation
Tools:
2 Manual ratchet, 500 kg 94016-025 1 Chain, 3150 kg 94019B
1 Manual ratchet, 6300kg 94016-017 1 Chain, 1000kg 94019C
2 Eye bolt 94045-M20 1 Protection tool 94117B
2 Shackle, 4750 kg 94018B 1 Platform 94143
2 Shackle, 8500 kg 94018C 2 Pre-tensioning jack 94315
1. Preparation 1.......................................................
2. Removal 2.........................................................
3. Installation 3.......................................................
4. Completion 4.......................................................
1. Preparation
1) Read the data in 0012−1 General Guidelines for Lifting Tools.
2) Prepare the piston, refer to 3303−3, paragraph 1.

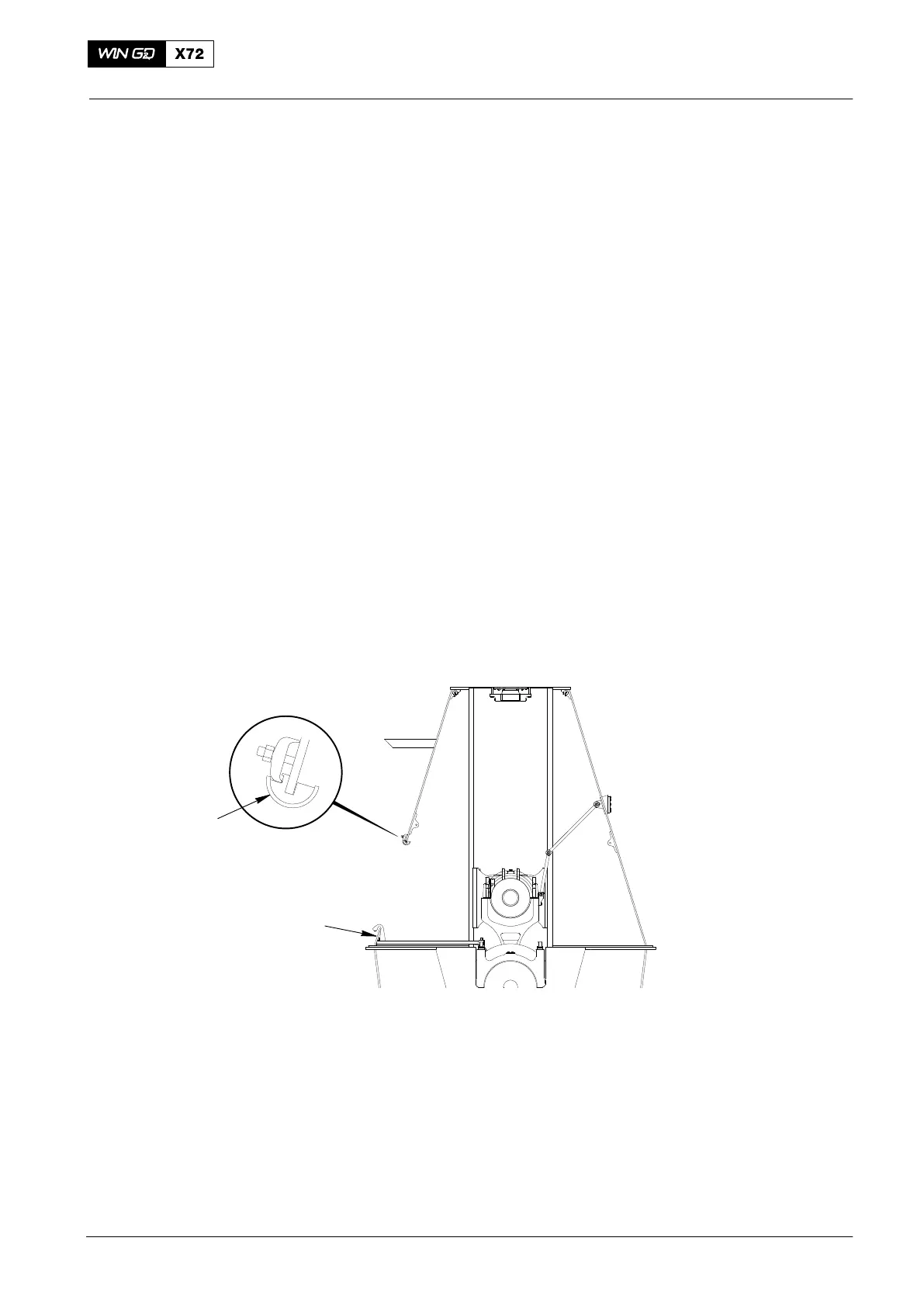

3) Install the platform (94143, Fig. 1).
4) Install the protection tool (94117B) to the top of column opening.
5) Make sure that the turning gear is locked to prevent movement of the crankshaft.
Fig. 1
94117B
WCH02662
94143
2015
Connecting Rod
