WinGD X72 - Removal of a Seized Pump Plunger; 5556−2;A1

Maintenance
5556−2/A1
Winterthur Gas & Diesel Ltd.
1/ 4
Removal of a Seized Pump Plunger
Tools:
1 Piston reset tool 94595D 2 Screws 94595E
1 Hydraulic ram 94595 1 HP oil pump 94931
1 Short push rod 94595B 1 Pressure gauge 94932
1 Long push rod 94595C 1 HP hose 94935
1
1. Fuel Pump − Preparation 1..........................................
2. Hydraulic Ram − Preparation 2......................................
3. Hydraulic Ram − Install 2............................................
4. Removal with Tool 94595B 3.........................................
5. Removal with Tool 94595C 4.........................................
1. Fuel Pump −
Preparation
1) Remove the fuel pump (see 5556−1).
2) Disassemble the fuel pump until the
condition is as shown in Fig. 1.
Fuel Pump
2015

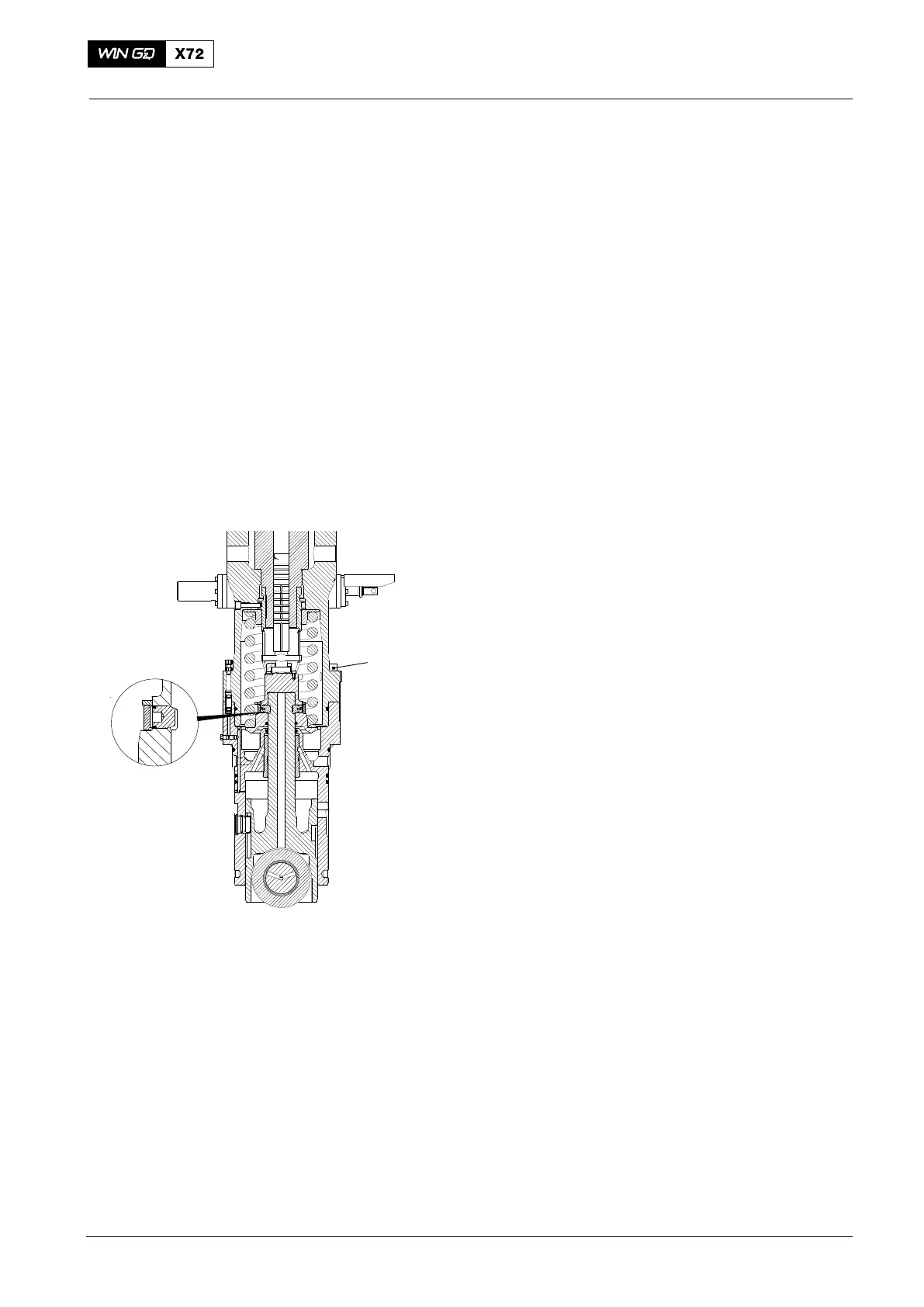

Fig. 1
WCH03016
94595E
