WinGD X72 Maintenance Manual

Maintenance6545−1/A1
Winterthur Gas & Diesel Ltd.
2/ 7
2. Procedure One
2.1 Preparation
Note: Read and obey the data given in
0012-1 General Guidelines for
Lifting Tools.
1) Stop the engine.
2) Set to off the power supply.
3) Disconnect the electrical connection
from the electric motor (5, Fig. 2).
4) Attach the shackles (94018C) and the
lever chain hoists (94016-009) to the
lifting lugs (6).
5) Attach the trolley (94021) to the
beam (5).
2.2 Removal
1) Attach the slings (94650) to the electric
motor (5).
2) Connect the lever chain hoists
(94016-009) to the slings (94650) as
shown.
3) Put sufficient tension on the slings
(94650) to hold the auxiliary blower (1)
in position.
4) Remove the screws (4) from the
support (3).
5) Remove the screws (2) from the
case (1).
2015

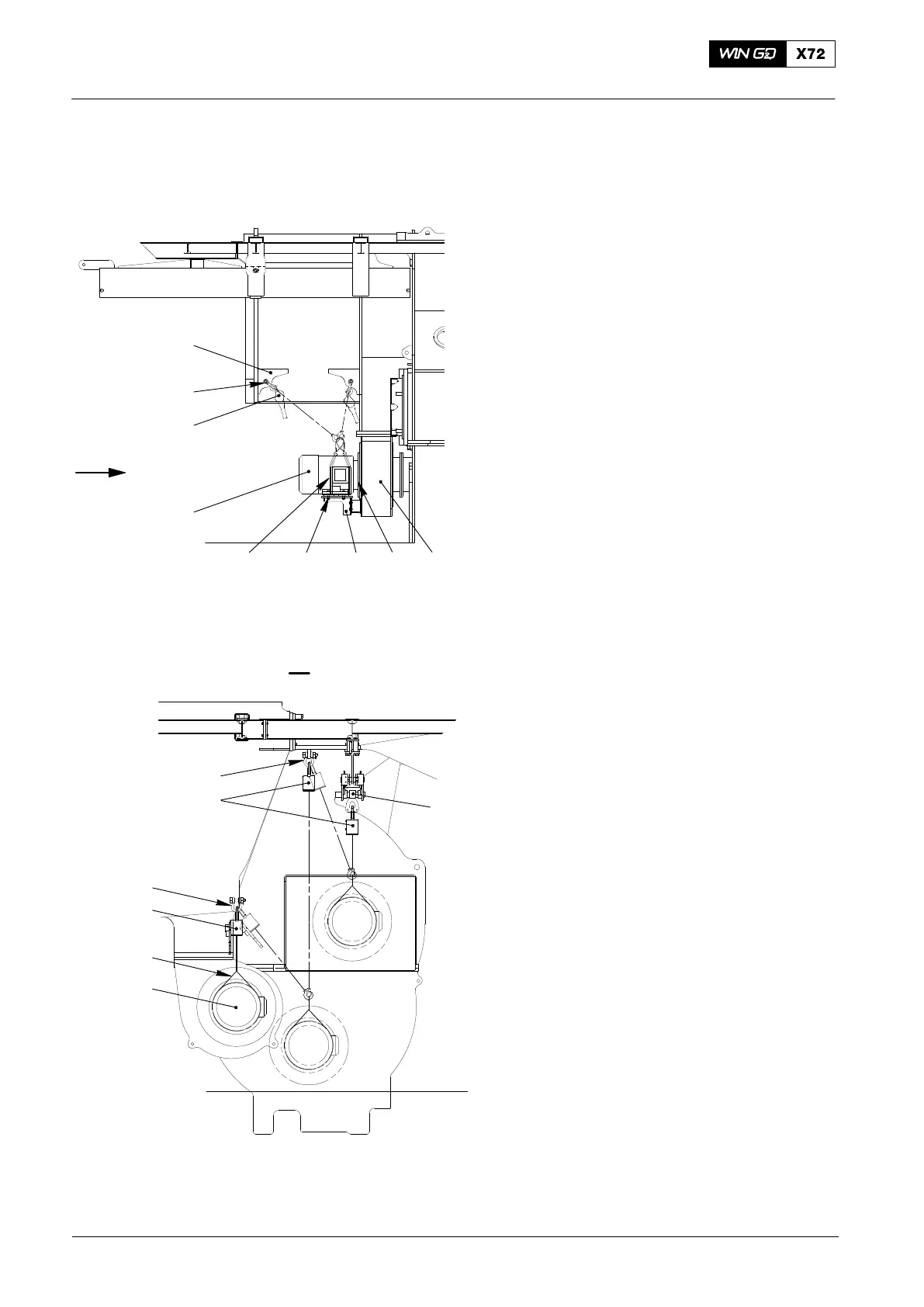

Auxiliary Blower: Maintenance
5
WCH02412
94650
94016-009
I
94018C
Fig. 2
5
WCH02412
94650
94018C
94017-006
94021
94016-009
94018C
I
3
4
2
1
6
