WinGD X72 Maintenance Manual

Maintenance2303−1/A1
Winterthur Gas & Diesel Ltd.
10/ 12
CAUTION
Equipment hazard. Do not
get on the platform 94234.
The maximum permitted
weight is 140 kg.
19) Install the assembly platform 94234
through the support plate (5, Fig.15) on
the studs of the piston rod foot (6).
20) Use the chain blocks to lower the
piston rod gland (135 kg)on to the
assembly platform 94234.
21) For disassembly of the piston rod
gland, refer to chapter 2.2.
3.2 Piston rod gland − disassemble
To disassemble the piston rod gland (1), do the procedures given in paragraph 2.2.
3.3 Wear Measurement
To measure the wear, do the procedures given in paragraph 2.3.
3.4 Piston rod gland − assemble
To assemble the piston rod gland (1), do the procedures given in paragraph 2.4.
2016−11
Replace, Assembling, Wear Measurement
1

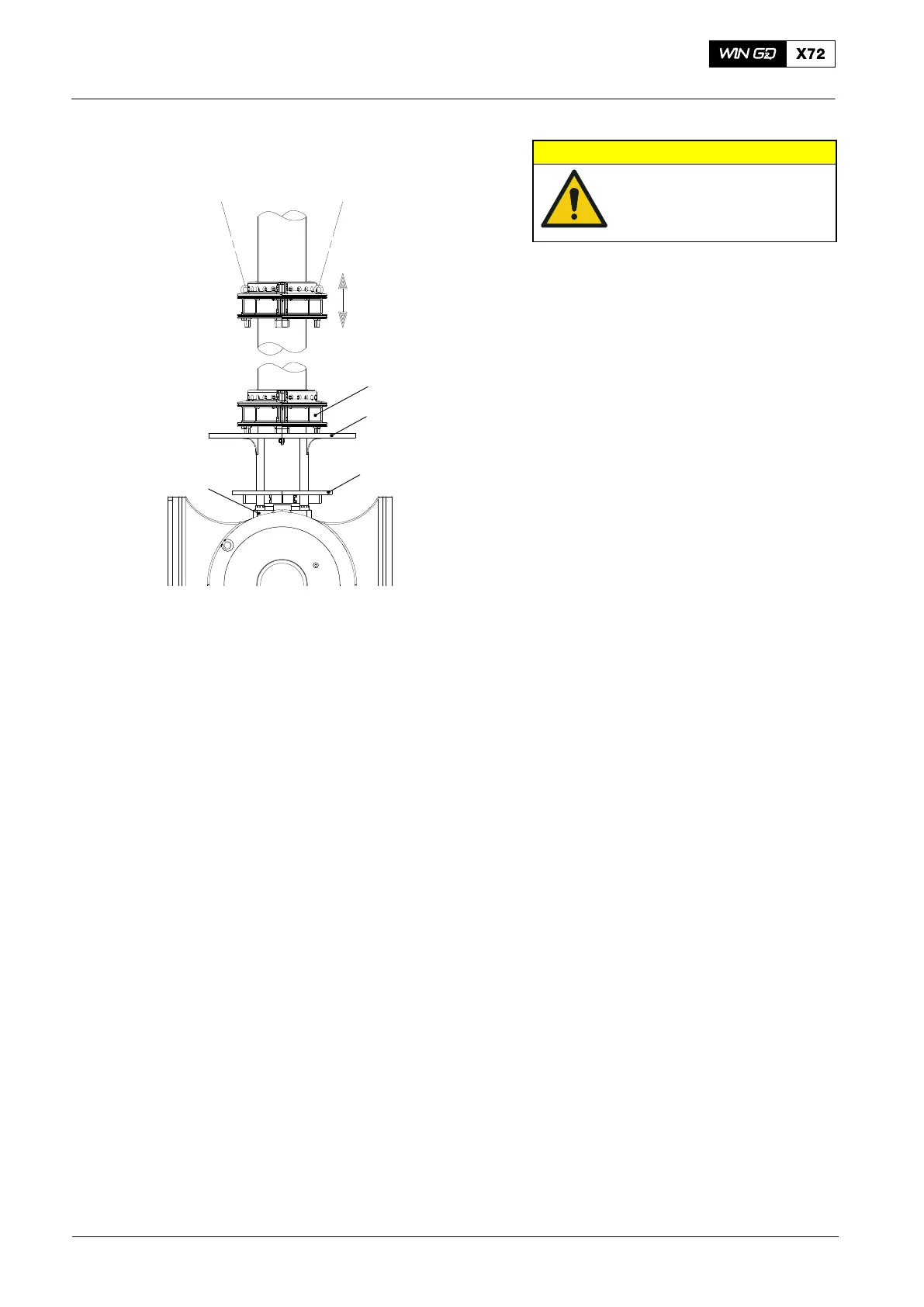

Fig. 15
94234
5
6
