WinGD X72 Maintenance Manual

Maintenance2303−1/A1
Winterthur Gas & Diesel Ltd.
12/ 12
9) Apply oil to the eight bolts (7, Fig.18)
and install them together with new
locking plates. Tighten the bolts with
150 Nm.
D Make sure the spring dowel pin in the
piston rod gland (1) goes in to the bore
of the support plate (5).
10) Bend the locking plates to lock the bolts
(7).
11) Remove bolts (8) and loosen bolts (6)
in order to remove lifting tool 94235.
12) Apply oil to the four inner bolts (4. Fig.
20).
13) Install the bolts (4) with new locking
plates and tighten them with 150 Nm.
14) Bend the locking plates to lock the
inner bolts.
15) Remove all tools and platforms.
2016−02
Replace, Assembling, Wear Measurement
2

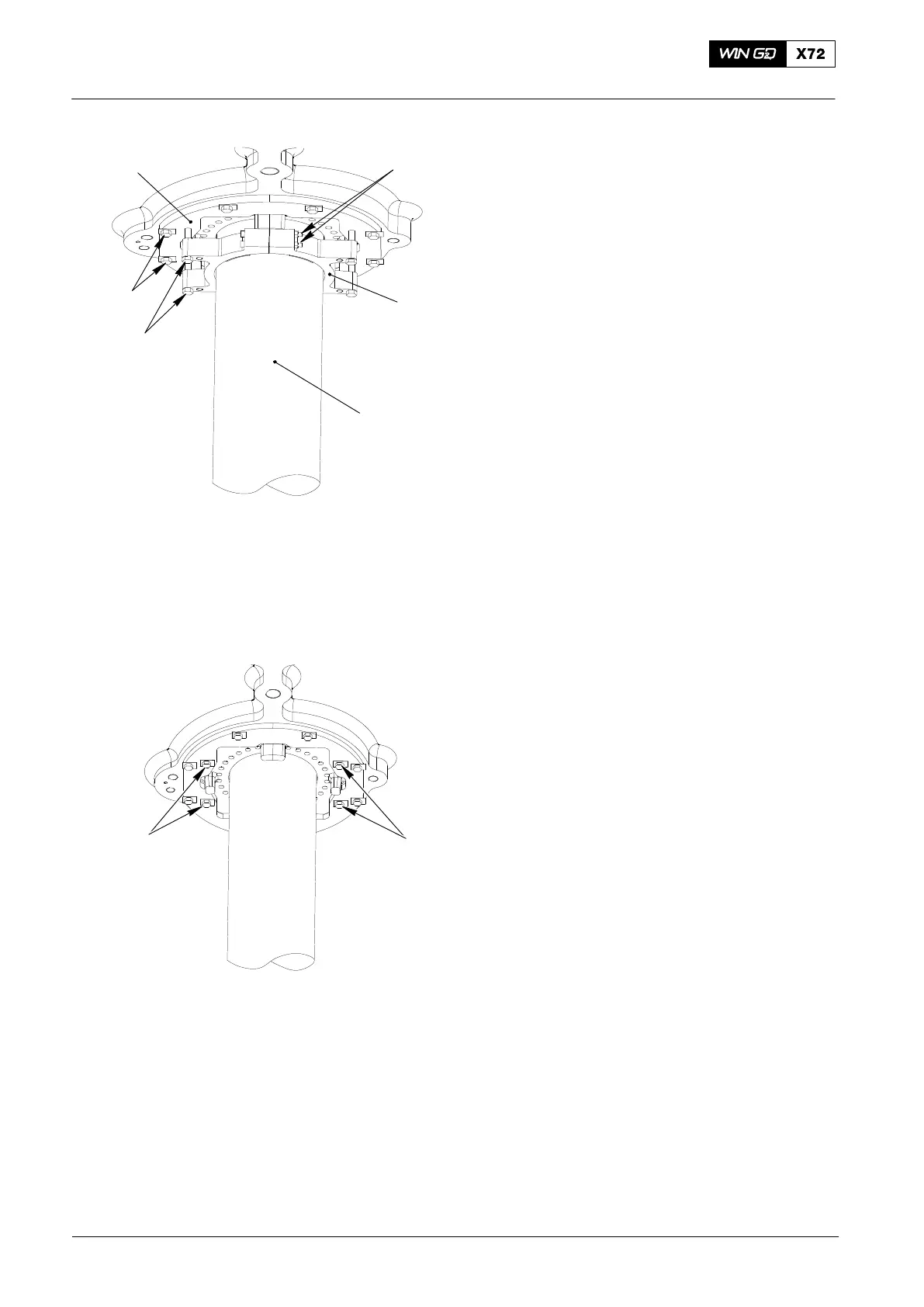

Fig. 18
94235
6
7
8
5
Fig. 19
4
4
