WinGD X72 Maintenance Manual

Maintenance
9403−5/A1
Winterthur Gas & Diesel Ltd.
35/ 37

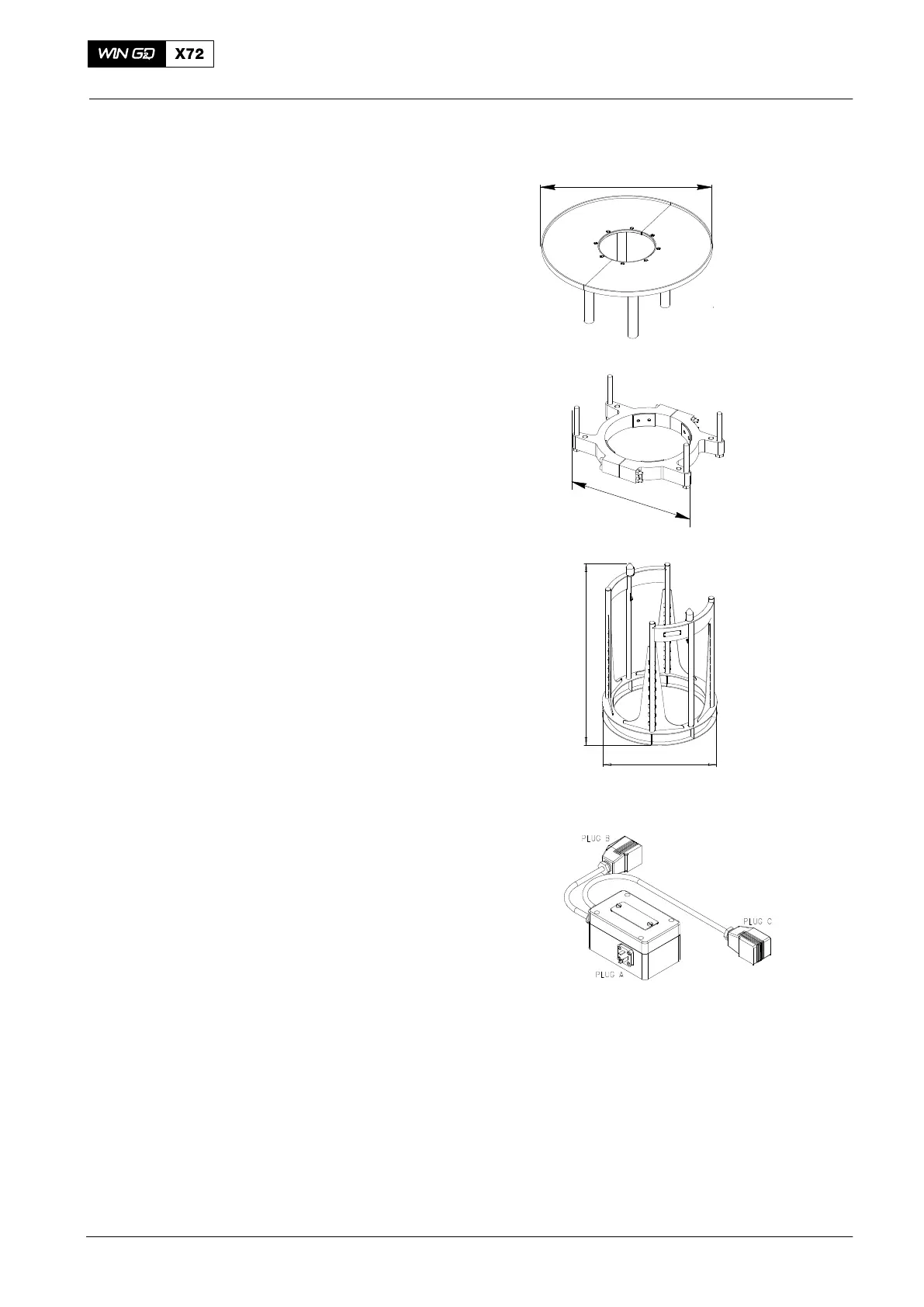

Recommended Special Tools
94234 1 Platform
for piston rod gland removal inside the
engine
X = ∅ 850 mm
Mass approx. 35 kg
X
WCH02382
94235 1 Lifting tool
for piston rod gland
X = 453 mm
WCH03571
X
94270H 1 Retaining bracket
X = 1749 mm
Y = 1306 mm
Mass approx. 217 kg
WCH03715
X
Y
94929 2 Connecting cables with plugs
for emergency cylinder lubrication
Connector (plug C)
Plug B with cable length = 0.5 m
Plug C with cable length = 2.5 m
WCH01087
2018−02
