WinGD X72 - Removal; Fuel Pressure Control Valve: Removal, Check, Installation; 5562−1;A1

Maintenance5562−1/A1
Winterthur Gas & Diesel Ltd.
2/ 5
3. Removal

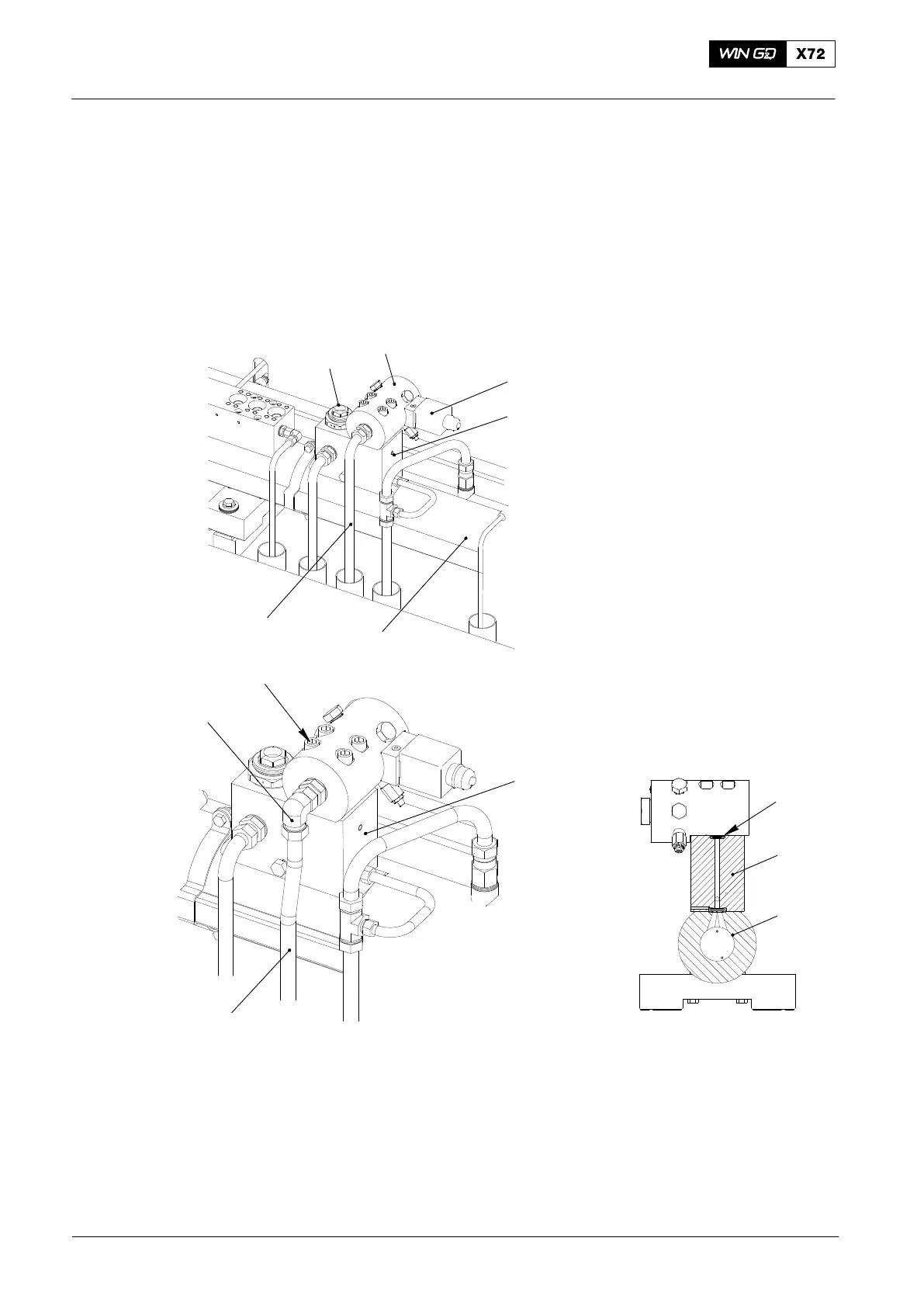

1) Make sure that the fuel rail (4, Fig. 1) has no pressure.
2) Disconnect the electrical connection from the solenoid valve (2).
3) Loosen the angle union (7). Remove the fuel return pipe 5 from the PCV 1.
4) Remove the four screws (8).
5) Remove the PCV from the valve block (3).
WCH02237
1
3
6
2
8
7
5
3
9
WCH02366
3
4
5
4
Fig. 1
2015
Fuel Pressure Control Valve: Removal, Check, Installation
