WinGD X72 Maintenance Manual

Maintenance6545−1/A1
Winterthur Gas & Diesel Ltd.
6/ 7
CAUTION
Damage Hazard: Do not
put the electric motor on
the floor without an
applicable support or
damage to the impeller can
occur.
7) Put protection on the pipe (4) where the
chain block (94017-006) and the lever
chain hoist (94016−009) can touch.

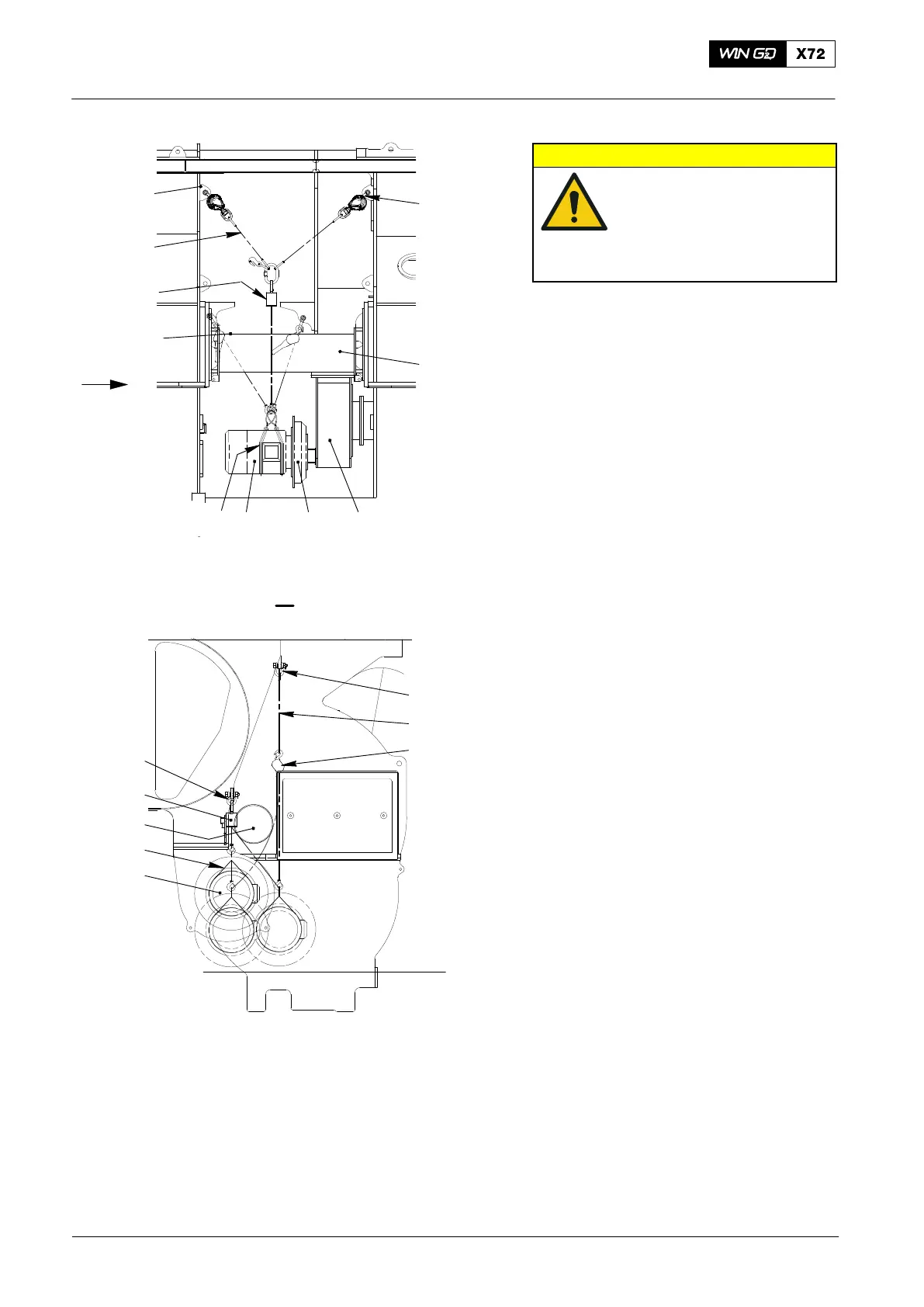

8) Use the lever chain hoists (94016-009,
Fig. 9) to carefully remove the electric
motor (3) and impeller (2) from the
casing (1).
9) Lower the electric motor (3) and
impeller (2) almost to the platform level.
10) Attach the shackles (94018C) and the
chain (94019A) to the lugs (7).
11) Attach the chain block (94017-006) to
the chain (94019A) and the slings
(94650).
12) Carefully release the tension on the
lever chain hoists (94016-009). At the
same time increase the tension on the
chain block (94017-006). Continue until
the the electric motor (3) and impeller
(2) are below the chain block
(94017-006).
13) Carefully move the electric motor (3)
and impeller (2) under the pipe (4).
14) Remove the chain block (94017−006)
from the slings (94065).
15) Move the electric motor (3) and the
impeller (2) away from the area.
16) Lower the electric motor (3) and
impeller (2) on to an applicable surface.
17) Remove the lever chain hoist
(94016−009) and the slings (94560)
from the electric motor (3) and
impeller (2).
3.3 Installation
1) Attach the two lever chain hoists
(94016−009) and the slings (94560) to
the electric motor (3) and impeller (2).
2) Attach the chain block (94017−006) to
the slings (94065).
2015
Auxiliary Blower: Maintenance
WCH02412
94016-009
94018C
94019A
94017-006
94650
WCH02412
94650
94018C
94019A
94016-009
94018C
94017-006
I
I
Fig. 9
213
4
3
4
