Maintenance
9223−1/A1
Winterthur Gas & Diesel Ltd.
1/ 3
Proximity Sensor − Replace
1. General
The crank angle sensor (CAS) unit (Fig. 1) is installed on the supply unit drive at the
driving end. The CAS has four proximity sensors (ST5131−34C). There are two crank
angle systems (for redundancy) that monitor the teeth on the intermediate wheel (1).
The holder (2) is installed with screws to the cover (3) on the drive column.
Two more proximity sensors (ZS5123−34C) are used to find the crank angle marks on
the flywheel (4) for TDC and BDC.
I
I
III
II
II
I - I
II
III
ST
5131−34C
ZS
5123−24C
ST5131C
ST5132C
ST5134C
ST5134C
ZS5123−24C
Crank Angle Mark
WCH03215
WCH02267
1
23
4

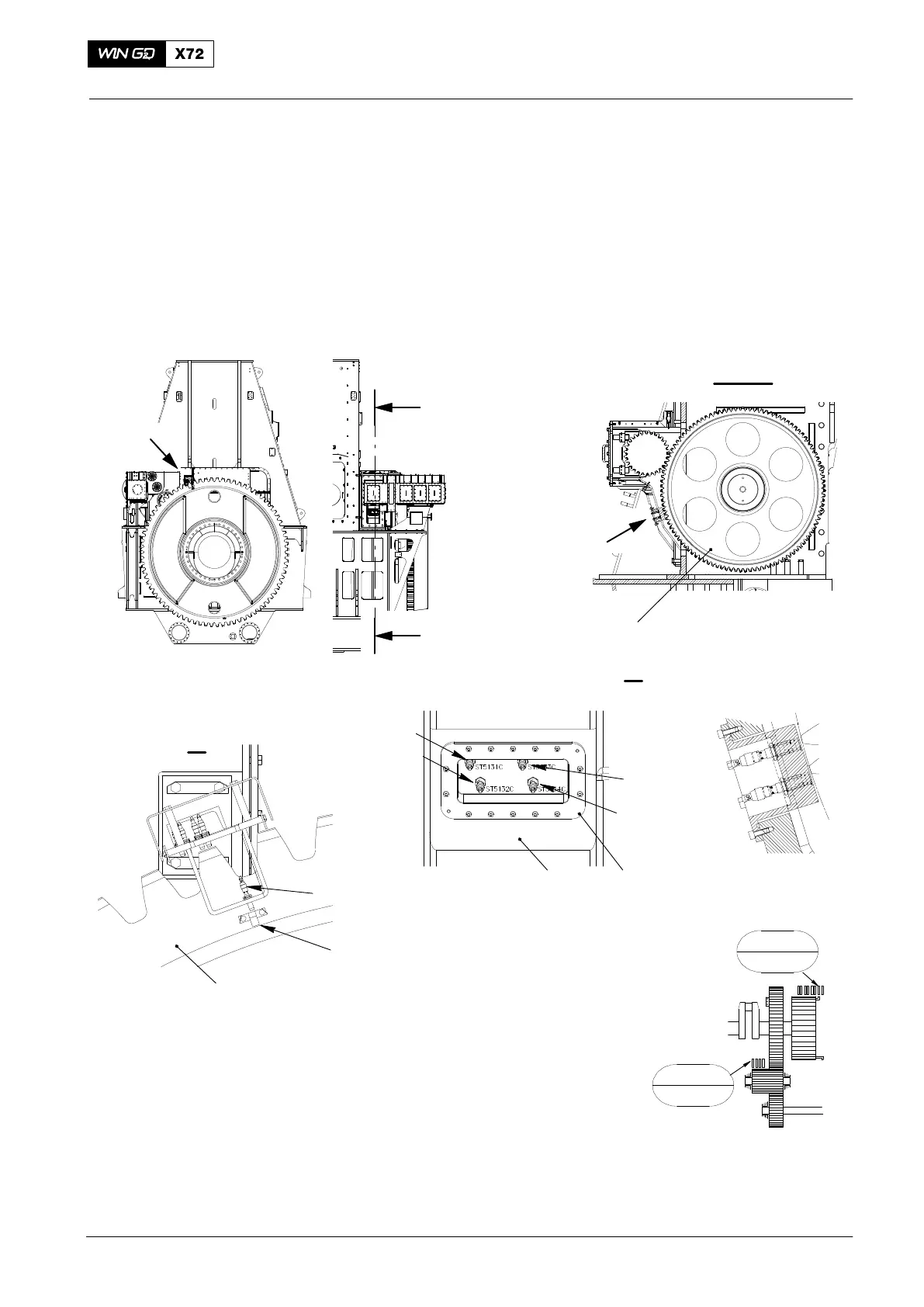

Fig. 1: Crank Angle Sensor Unit
Crank Angle Sensor Unit
2015
