WinGD X72 Maintenance Manual

Maintenance
8460−1/A1
Winterthur Gas & Diesel Ltd.
3/ 5
2. Removal
CAUTION
Damage Hazard: Make sure
that you do not damage
the sealing faces or the
hydraulic pipes.
1) Remove the four screws (1, Fig. 3)
from the flange (3).
2) Carefully move the flange (3) away
from the VCU (2).
3) Remove the four screws (2, Fig. 4)
from the flange (4).
4) Carefully move the flange (4) away
from the top housing (3).
CAUTION
Injury Hazard: The weight
of the hydraulic pipe is
approximately 47 kg. Use
approved equipment or
sufficient personnel to lift
and move the hydraulic
pipe.
5) Carefully remove the hydraulic pipe (1).
6) Apply protection to the sealing
faces (SF) to prevent damage and
contamination.

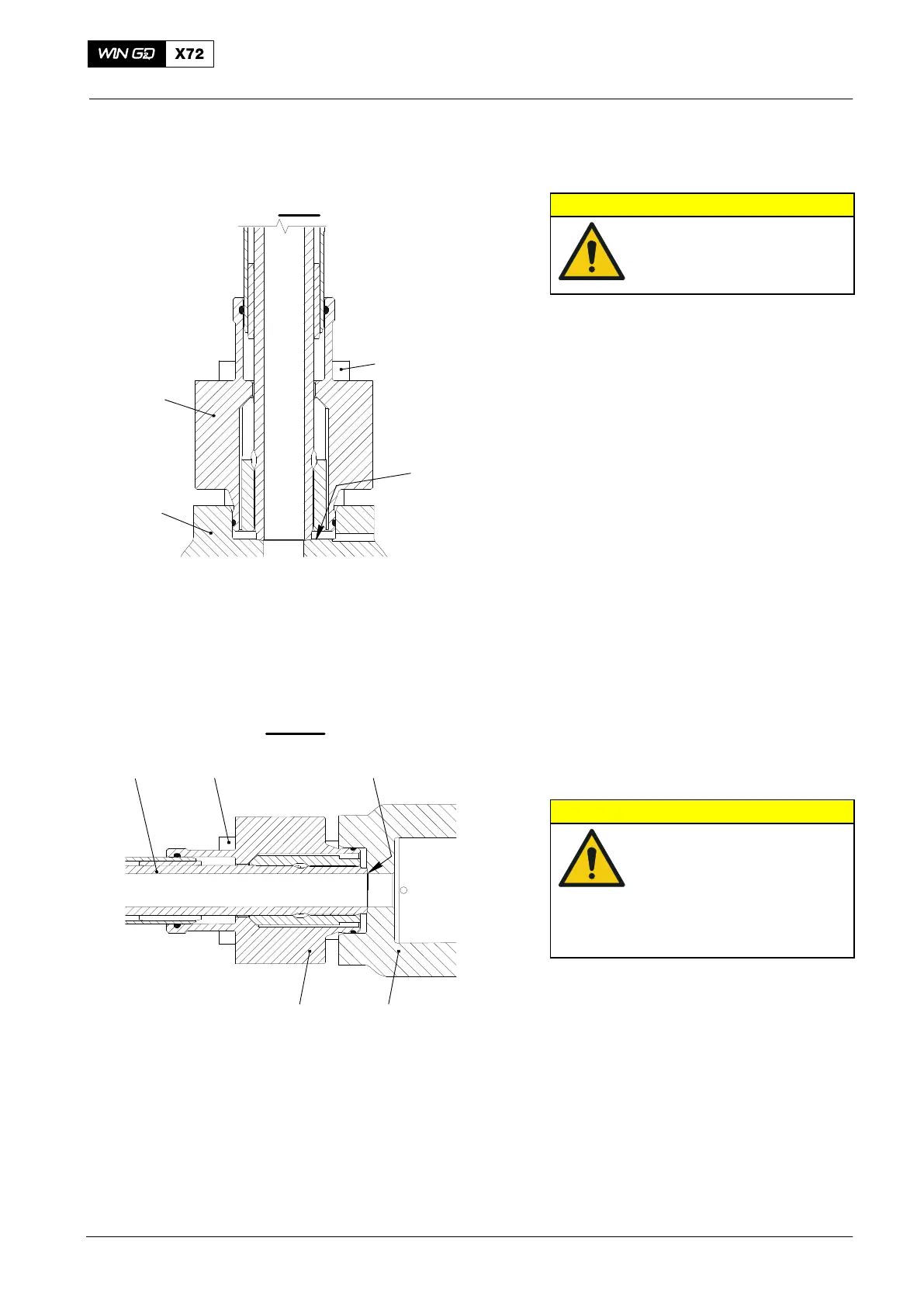

Hydraulic Pipe: Removal, Grind the Sealing Faces and Installation
2015
Fig. 3
I - I
3
2
1
SF
WCH03214
II - II
Fig. 4
WCH03214
4
1SF
2
3
