WinGD X72 Maintenance Manual

Maintenance6545−1/A1
Winterthur Gas & Diesel Ltd.
4/ 7
2.3 Installation

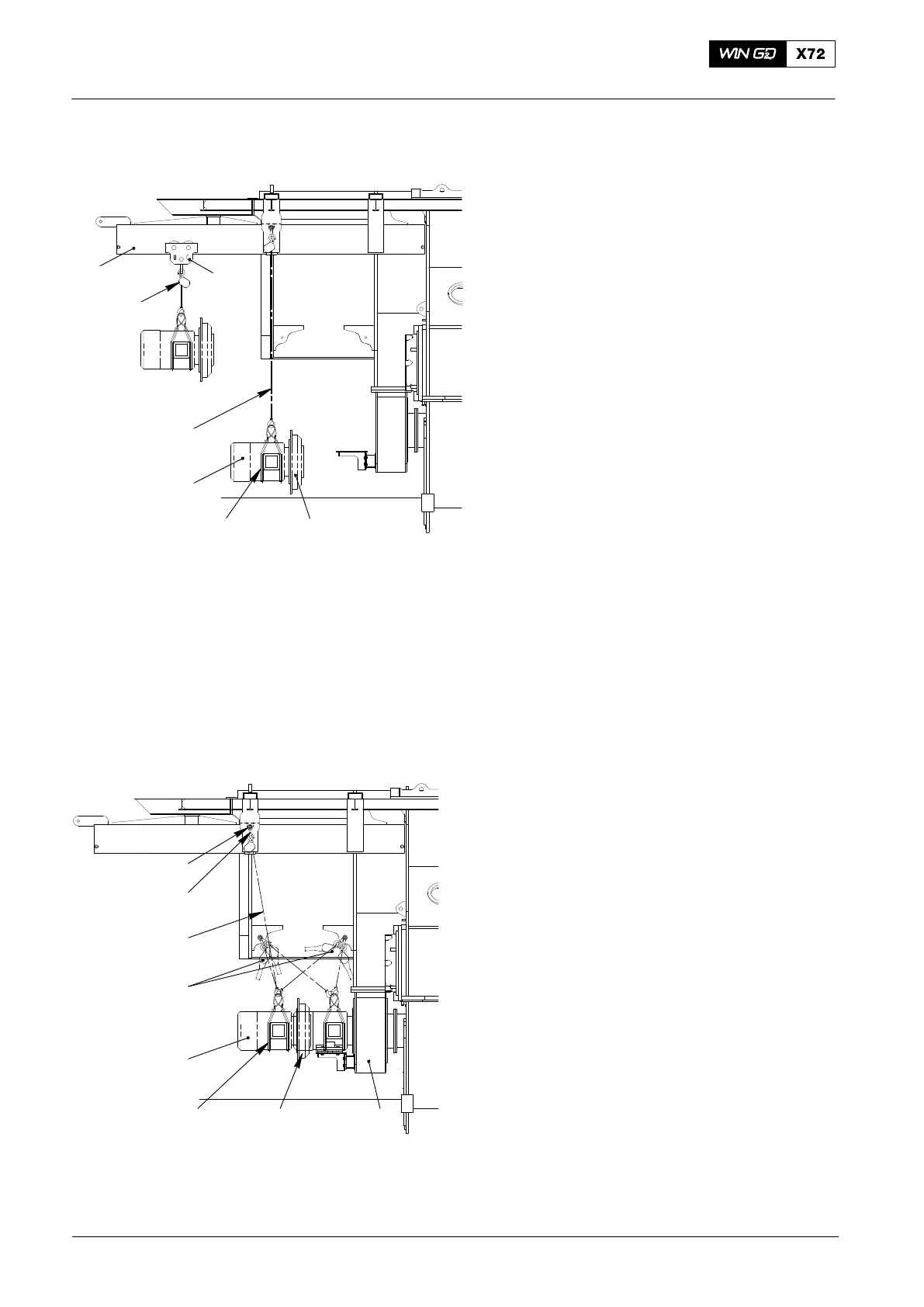

1) Attach the two slings (94650, Fig.5) to
the electric motor (3) and impeller (2).
2) Attach the chain block (94017-006(2))
to the trolley (94021).
3) Attach the chain block (94017-006(2))
to the slings (94650).
4) Lift the electric motor (3) and
impeller(2).
5) Move the electric motor (3) and
impeller (2) into position.
6) Attach the chain block (94017-006(1))
to the slings (94650) see Fig. 6.
7) Put sufficient tension on the chain
block (94017-006(1)) to hold the
electric motor (3) and impeller (2).
8) Remove the chain block
(94017-006(2)) from the slings (94560).
9) Attach the the lever chain hoists
(94016-009) to the slings (94560).
Note: When you do step 10), make sure
that the electric motor (3) and
impeller (2) stay horizontal.
10) Use the lever chain hoists (94016-009)
and the chain block (94017-006(1)) to
move the electric motor (3) and
impeller (2) into the casing (1).
2015
Auxiliary Blower: Maintenance
WCH02412
94021
2
94017-006(2)
5
94650
3
94017-006(1)
WCH02412
94650
94016-009
94018C
94017-006(1)
12
3
4
Fig. 5
Fig. 6
