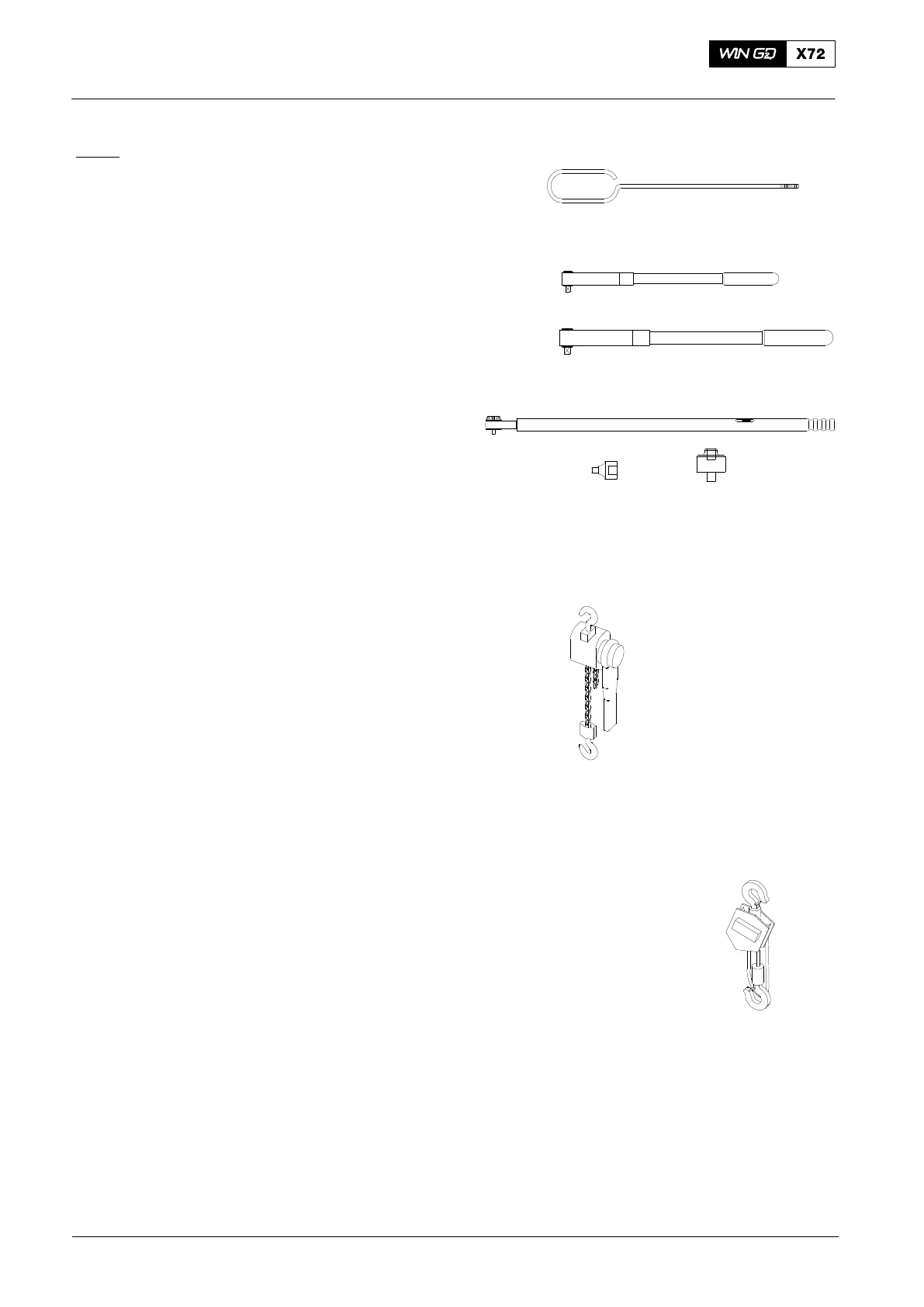

WinGD X72 Maintenance Manual

Maintenance9403−5/A1
Winterthur Gas & Diesel Ltd.
2/ 37
94009
94009−M5
94009−M8
94009−M10
Handle − screw
1 Pieces M5x150....
1 Pieces M8x100....
1 Pieces M10x100....
000.372/93
94011−02 1
Torque spanner ½”
No ratchet mechanism
(Range of adjustment 12−68 Nm)
WCH02296
94011−03 1
Torque spanner ½”
No ratchet mechanism
(Range of adjustment 50−225 Nm)
WCH02296
94012−02
94012−02A
94012−02B
1
Torque spanner ¾”
(Range of adjustment 150−750 Nm)
adapter piece ¾”-½”,
shell type ratchet ½”-½”
010.231/02
94016−009
94016−011
94016−017
94016−031
2
2
2
2
Manual ratchets
WLL 1600 kg, stroke 5,5 m
Manual ratchets
WLL 2500 kg, stroke 3,5 m
Manual ratchets
WLL 6300 kg, stroke 3,5 m
Manual ratchets
WLL 500 kg, stroke 5,5 m
012.233/04
94017−006
94017−021
2
2
Spur-geared chain block
WLL 1000 kg, stroke 6 m
Spur-geared chain block
WLL 5000 kg, stroke 6 m
WCH02297
2015
Standard Tools
