Maintenance
6545−1/A1
Winterthur Gas & Diesel Ltd.
7/ 7
Use the
3) Carefully operate the chain block
(94017−026) and the lever chain hoists
(94016−009) to move the electric motor
(3, Fig. 10) and impeller (2) under the
pipe (4).
4) Continue to operate the chain block
(94017−026) and the lever chain hoists
(94016−009). Make sure that the
electric motor (3) and impeller (2) are
below the chain block (94017-006).
5) Carefully lift the electric motor (5,
Fig. 11) and impeller until they are in
position in the casing (1).
6) Install the screws (4) to the support (3).
7) Install the screws (2) to the casing (1).
8) Connect the electrical connections to
the electric motor (5).
9) Remove all tools and equipment from
the area.
10) Set the auxiliary blower to on.
11) Make sure that the impeller turns in the
correct direction.
2015
Auxiliary Blower: Maintenance
WCH02412
94016-009
94018C
94019A
94017-006
4
94650
213

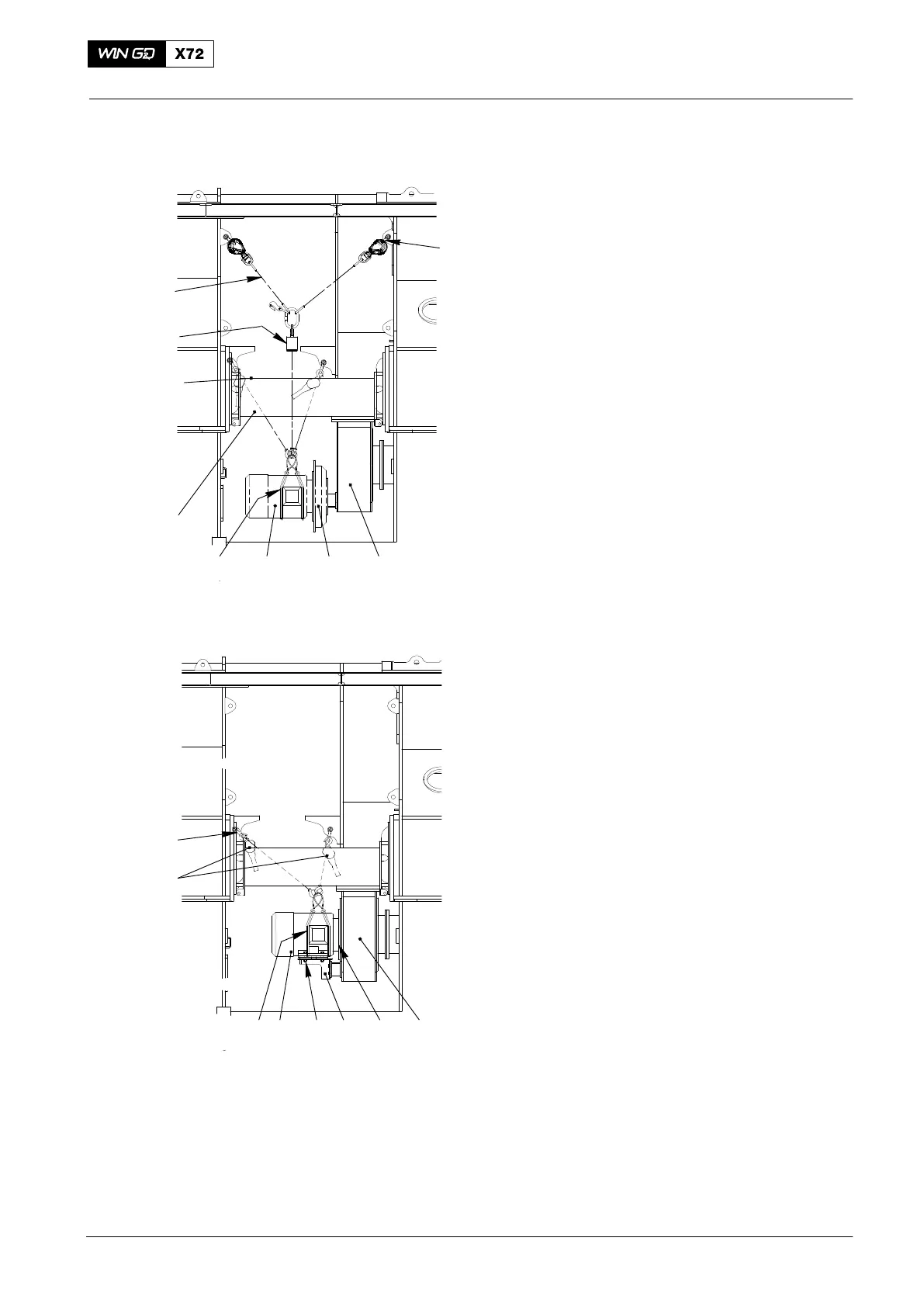

Fig. 10
WCH02412
94016-009
5
94018C
94650
3421
Fig. 11
