Maintenance3303−5/A1
Winterthur Gas & Diesel Ltd.
4/ 4
8) Attach the round nuts (3, Fig. 6) to the
elastic bolts (2).
9) Use the pre-tensioning jack (94315) to
tighten the four round nuts (3) refer to
9403−4.
4. Completion
1) Attach the piston to the crosshead, refer to 3303−3, paragraph 7.
2) Remove all tools and equipment from the area.
2015
Top End Bearing Cover − Removal, Inspection and Installation
WCH02662
2
1
3

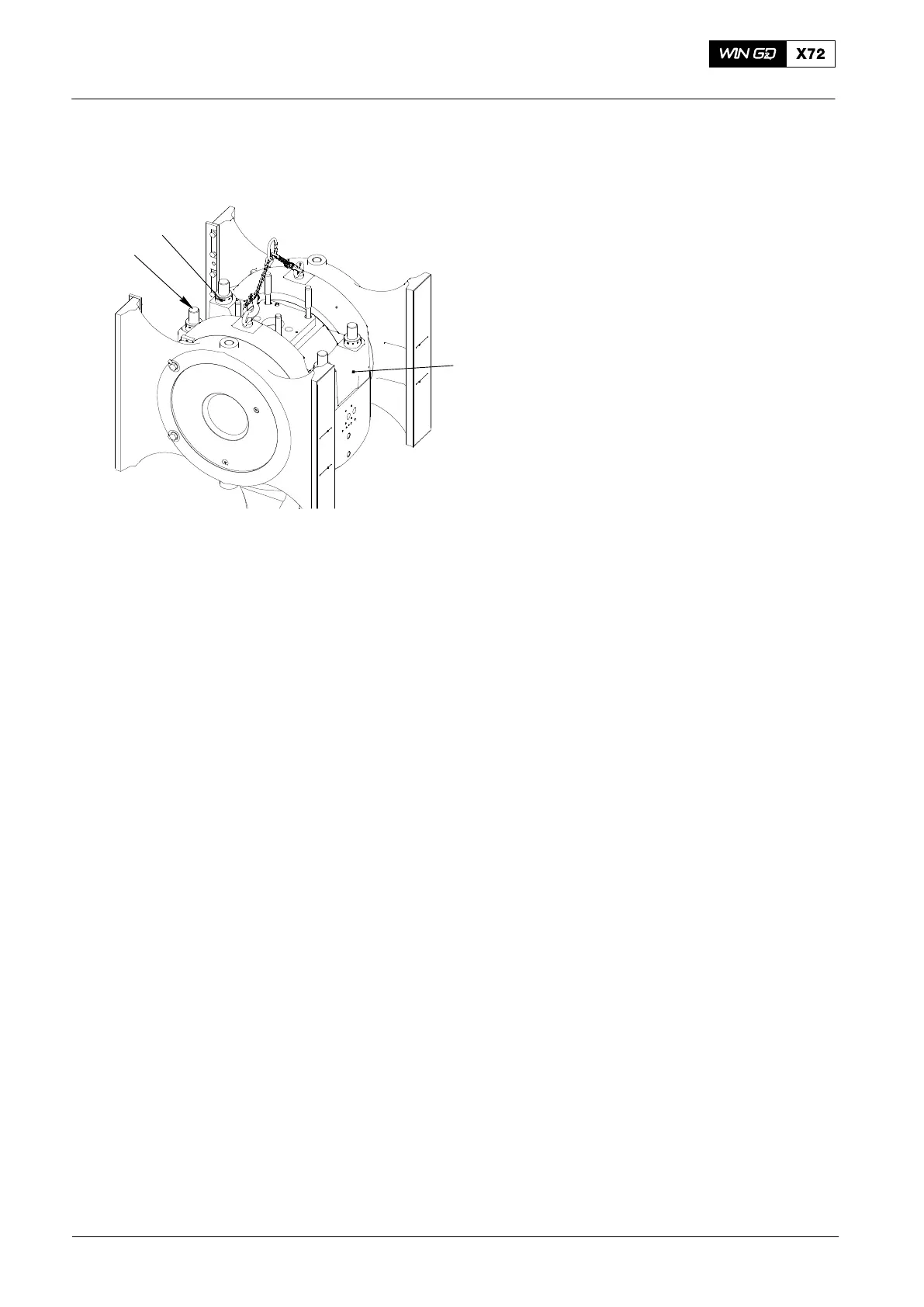

Fig. 6
