Maintenance3303−3/A1
Winterthur Gas & Diesel Ltd.
8/ 8

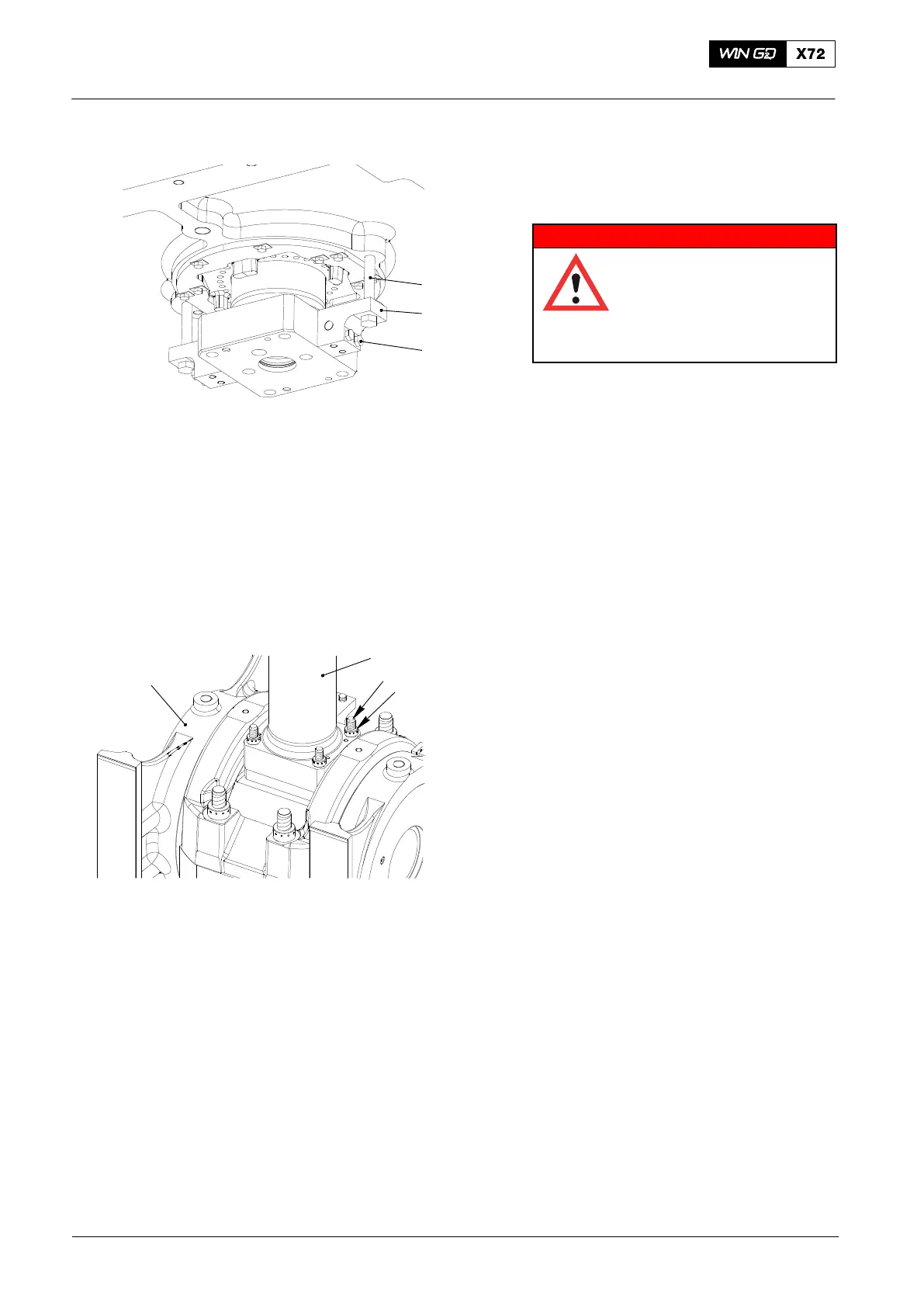

7. Completion
WARNING
Injury Hazard: Before you
operate the turning gear,
make sure that no
personnel are near the
flywheel, the propeller
shaft or inside the engine.
1) Make sure that the piston rod foot
(1, Fig. 12) is clean and has no
damage.
2) Make sure that the compression shim
(2, Fig. 13) is clean and has no
damage.
3) Remove the platform (94143).
4) Unlock the turning gear.
5) Use the turning gear to move the
crankshaft to TDC.
6) Remove the holders (94333, Fig. 12).
7) Use the pre-tensioning jack (94315) to
tighten the four round nuts (1, Fig. 13)
refer to 9304−4, paragraph 3.
8) Remove all tools and equipment from
the area.
2015
Top End Bearing − Removal, Inspection Installation
3
4
5
2
WCH02434
Fig. 12
Fig. 13
94333
6
7
WCH02435
To Next Page
