WinGD X72 - Page 378

Maintenance5591−1/A1
Winterthur Gas & Diesel Ltd.
8/ 8
5. Completion

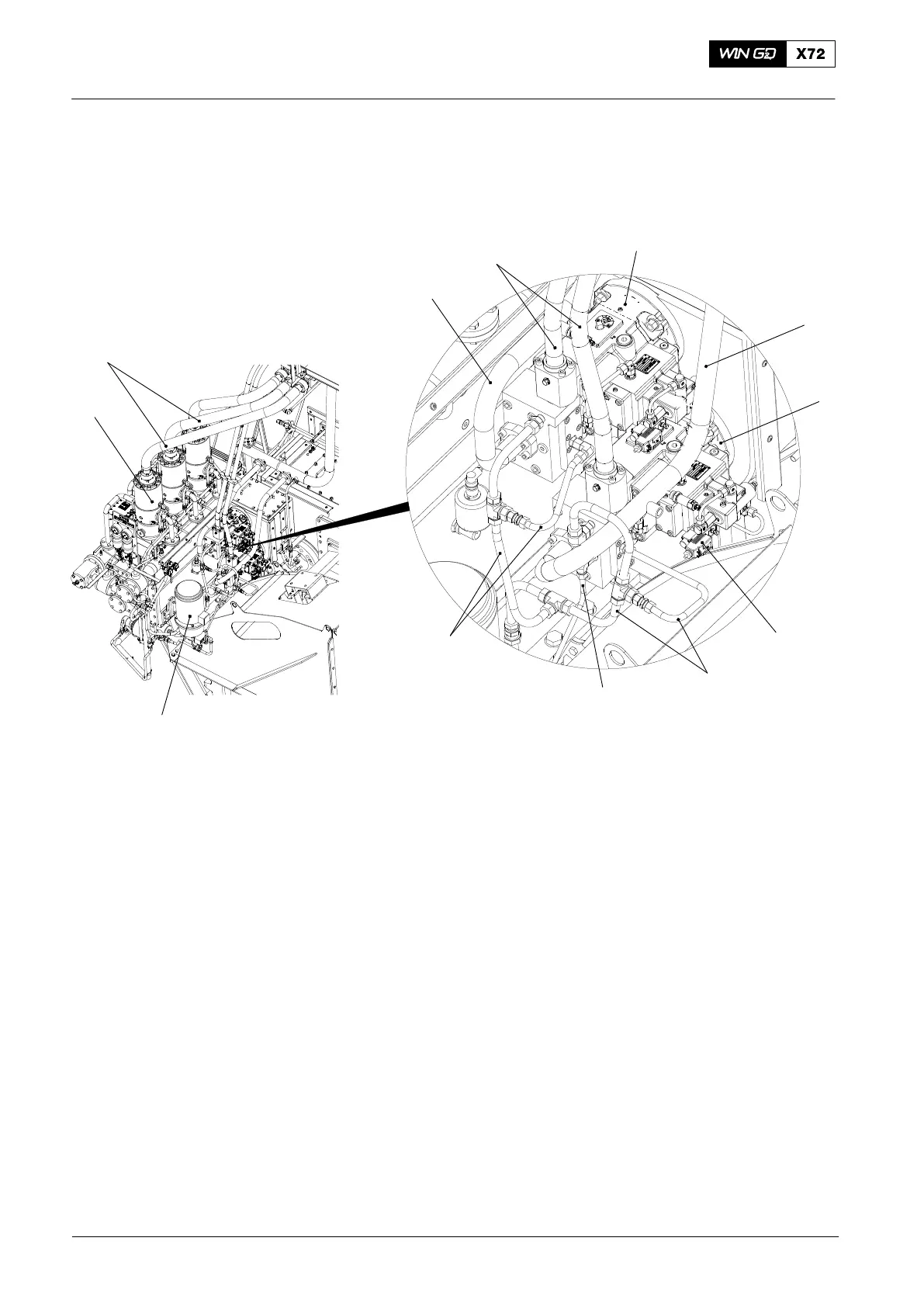

1) Attach the oil inlet pipes (5 and 11, Fig. 12) to the servo oil pumps (4, 6).
4
7
11
10
9
6
WCH02395
Fig. 12
3
2
1
8
12
5
2) Attach the drain pipes (8, 10) to the servo oil pumps (4, 6).
3) Attach the oil pipe (9) to the servo oil pump (6).
4) Install the HP servo oil pipes (12) to the servo oil pumps (4, 6) (see 8447−1
paragraph 5).
5) Attach the HP fuel pipes (3), that you removed before, to the fuel pumps (2) (see
8752-1 paragraph 4)
6) Connect the electrical connections (7).
7) Set to on the main bearing oil pump.
8) Set to on the servo oil service pump (1).
9) Do a check for leaks.
10) Set to off the servo oil service pump (1).
2015
Servo Oil Pump − Removal and Installation
