Maintenance8752−1/A1
Winterthur Gas & Diesel Ltd.
8/ 11
4. Installation
CAUTION
Injury Hazard: The weight
of the HP fuel pipe is
approximately 32 kg. Use
approved equipment or
sufficient personnel to lift
and move the HP fuel pipe.
1) Do a check for damage of the
O-rings (1 and 3, Fig. 12). If necessary,
replace the O-rings.
2) Remove all of the protection from the
sealing faces (SF).
3) Make sure that the claw (4) is correctly
attached to the HP fuel pipe (5).
Note: You can adjust the claw (4) with an
open-ended wrench.
4) Make sure that there is a distance of
14.0 mm between the end of the HP
fuel pipe (5) and the claw (4).
5) Make sure that the O-rings (1 and 3)
are in position.
6) Apply Never-Seez NSBT to the threads
of all the screws (2).
2015
HP Fuel Pipe: Removal, Grind the Sealing Faces and Installation
14.0 mm
5
WCH02293

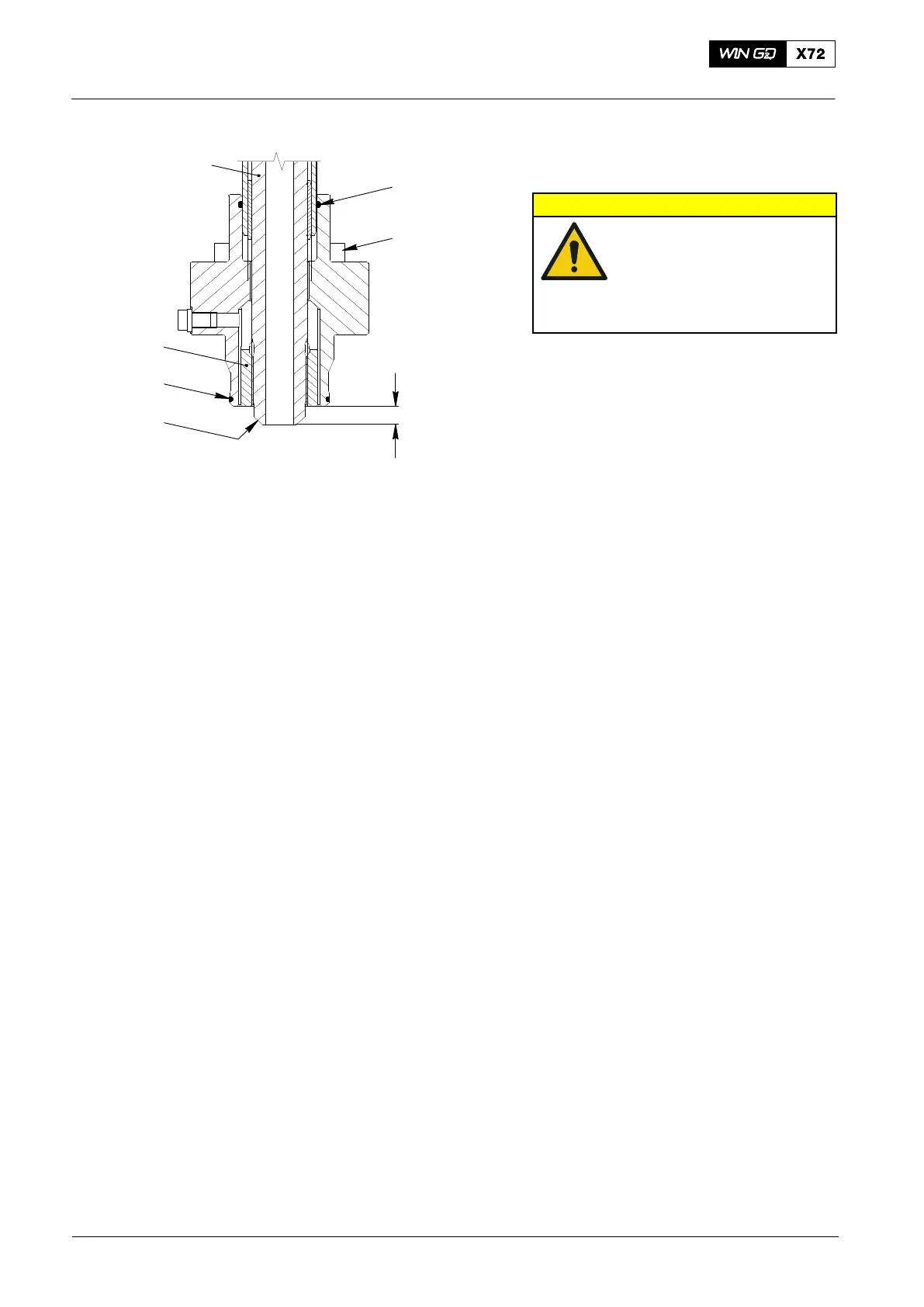

Fig. 12
3
1
4
2
SF
