WinGD X72 Maintenance Manual

Maintenance
8752−1/A1
Winterthur Gas & Diesel Ltd.
11/ 11
CAUTION
Injury Hazard: The weight
of the HP fuel pipe is
approximately 43 kg. Use
approved equipment or
sufficient personnel to lift
and move the HP fuel pipe.

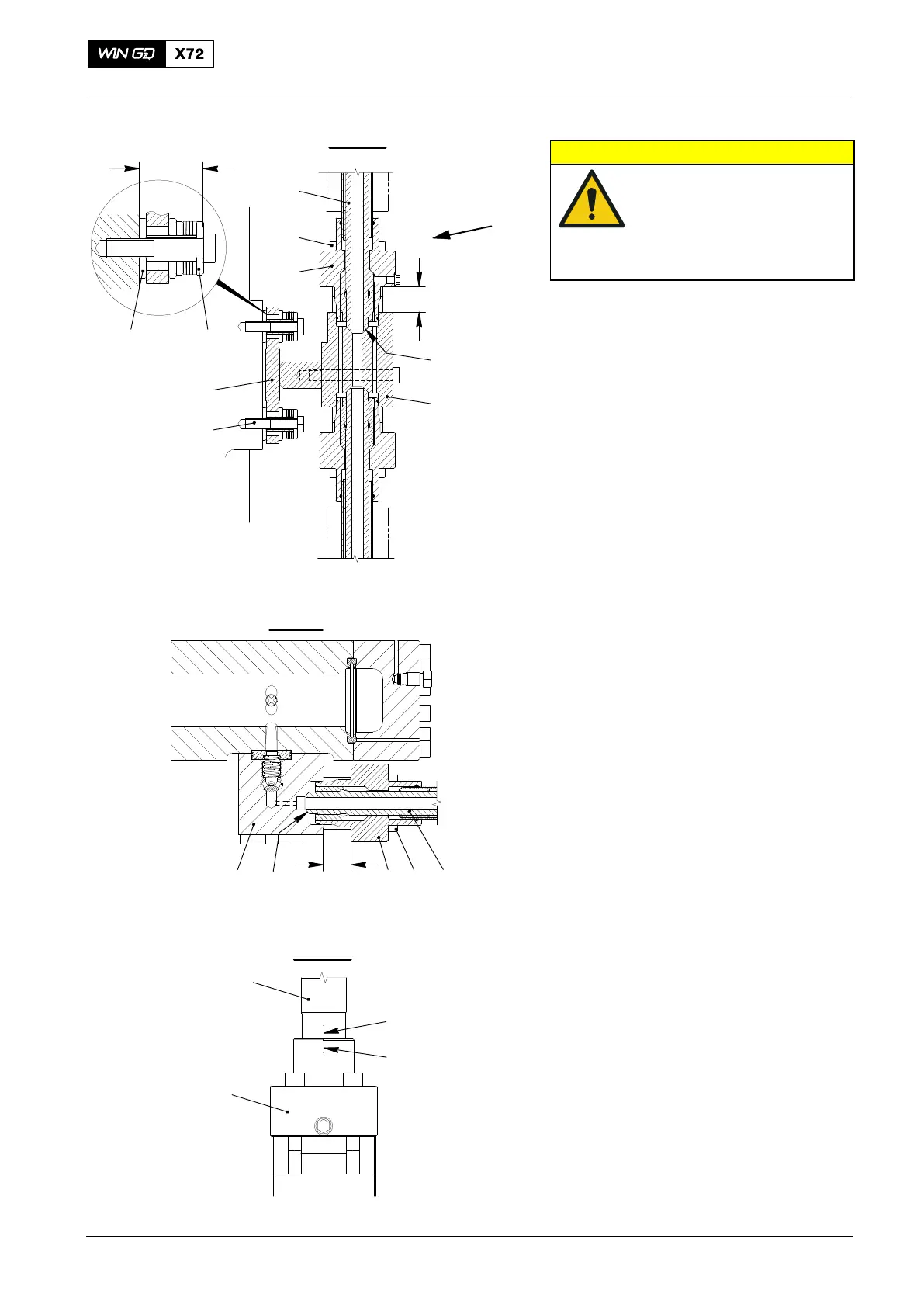

19) Carefully put the HP fuel pipe (8,
Fig. 15) in position in the intermediate
piece (1) and the valve housing (11).
20) Make sure that the HP fuel pipe (8) is in
the correct position. Align the
marks (MA) on the HP fuel pipe (8) and
on the flange (6).
21) Torque the screws (7, 9) as follows:
a) Torque symmetrically the four
screws (7,9) to 30 Nm.
b) Make sure that the flanges (6, 10)
are not tilted and in the correct
position.
c) Torque symmetrically the four
screws (7, 9) to 55 Nm.
d) Torque symmetrically the four
screws (7, 9) to 80 Nm.
22) Make sure that there is a distance of
39.5 mm between the flange (6) and
the intermediate piece (1).
23) Make sure that there is a distance of
41.5 mm between the flange (10) and
the valve housing (11).
24) Tighten the screws (2) on the
support (3).
25) Tighten the screws (2) on the
support (1).
26) Make sure that there is a distance of
54.0 mm between the steel ring (4) and
the slide ring (5).
2015
HP Fuel Pipe: Removal, Grind the Sealing Faces and Installation
II - II
1
3
SF
2
WCH02293
39.5 mm
6
7
8
54.0 mm
V
45
11 10 9 8
WCH02293
41.5 mmSF
MA
MA
V - V
6
8
WCH02293
I - I
Fig. 15
