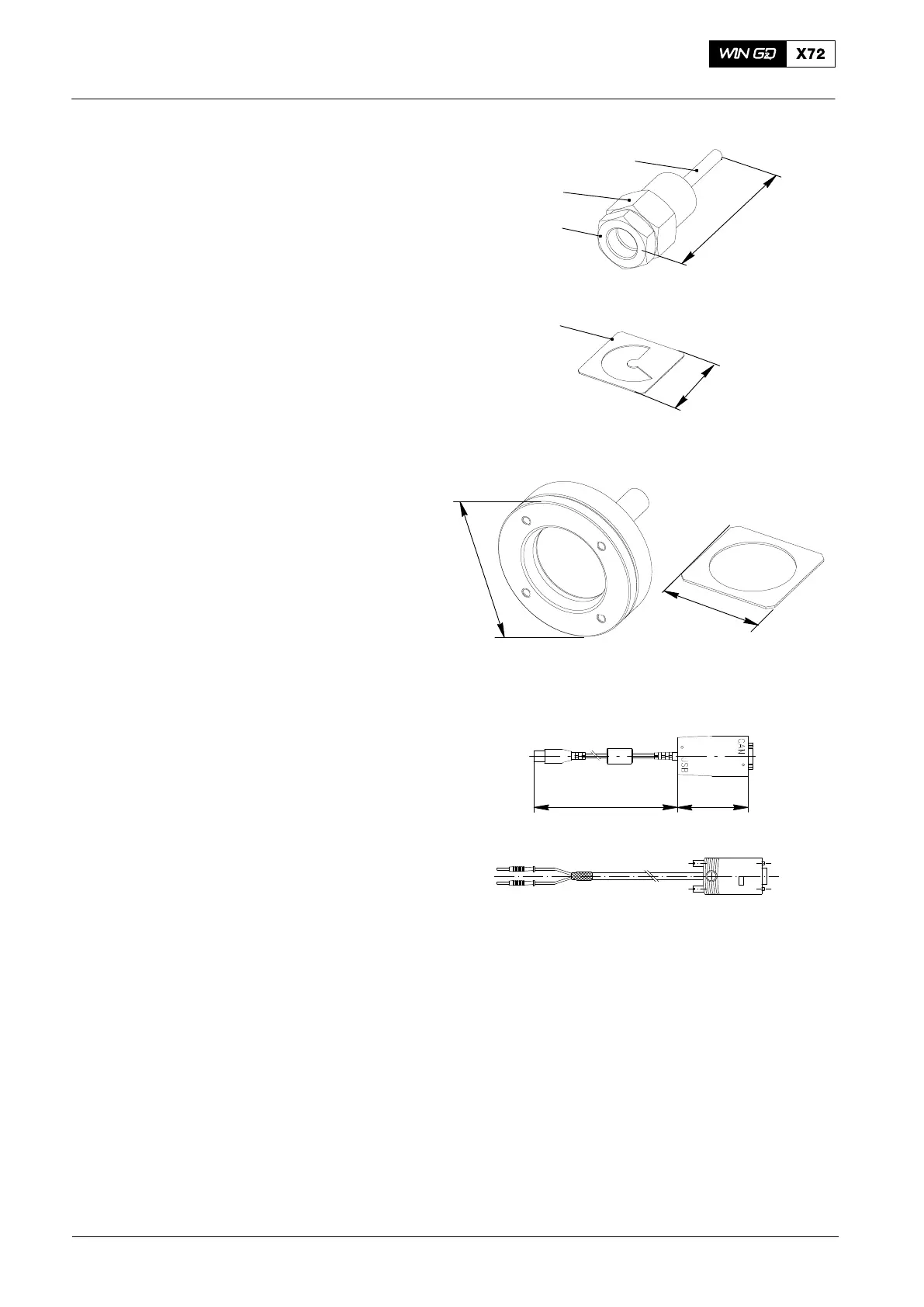

94870 1 Grinding device
For HP fuel pipe
X = 166 mm
consisting of:
94870E 1 Screw-on sleeve
AF60
94870F 1 Grinding tool
with countersunk screw
M8
94870G 1 Lock nut
M36x2, AF46
94870H 1 Template
X = 70 mm
94870H
94870G
94870E
94870F
WCH02751
X
X
WCH02751
94871
94871A
1
1
Grinding tool
for injection pipe
X = ∅ 60 mm, R30.5
Stencil
Y = 50 mm
X
WCH02751
Y
94871A
94871
94930
94930A
94930B
94930C
1 SW-download package
to UNIC for uni tool
consisting of:
1 UBS to CAN adapter
1 CAN cable (ca. 2.5 m)
1 Ethernet adapter cable
(software tool)
ca. 1000
80
018.127/09
2018−02
Standard Tools
