2.6. RSM-8R8 Series - Front Panel Components

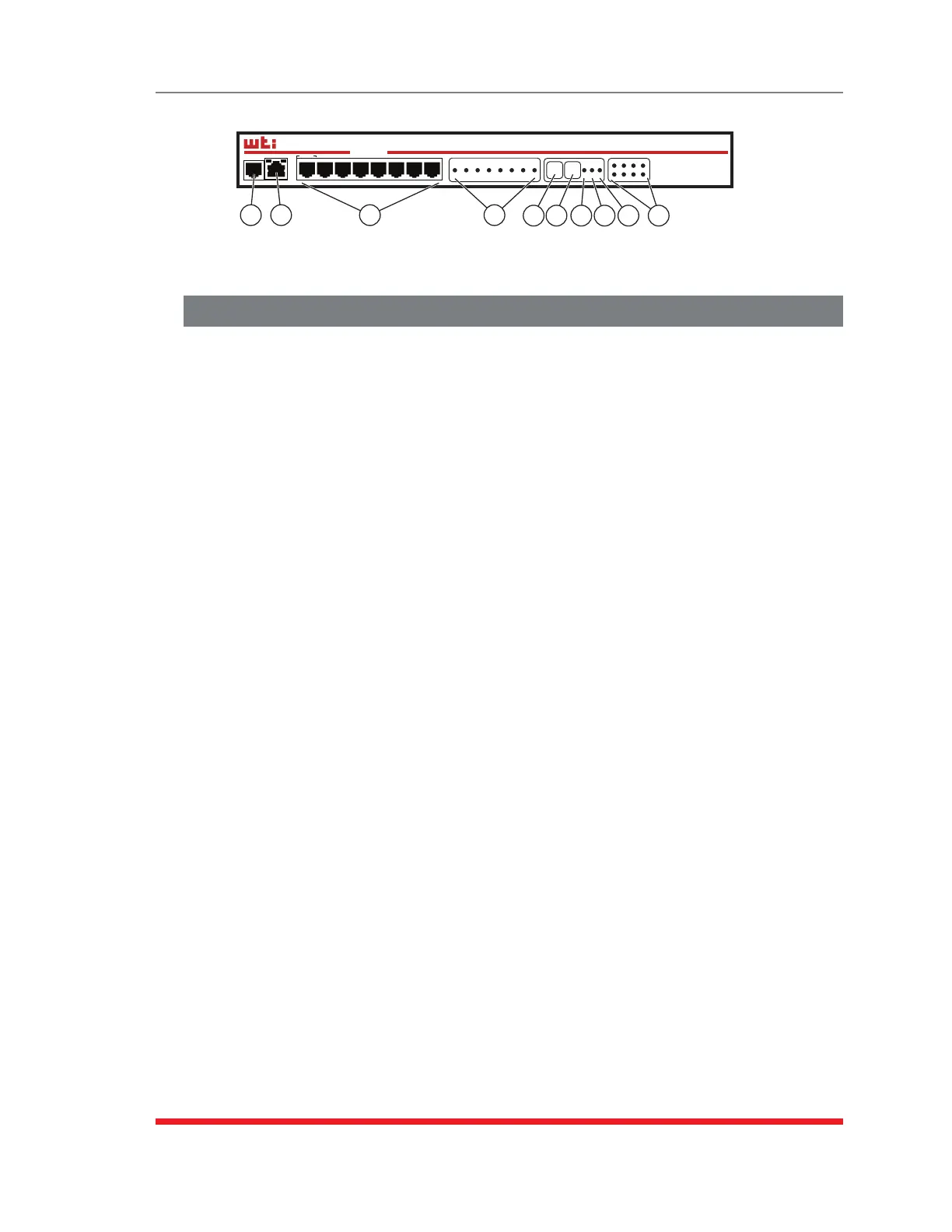

As shown in Figure 2.10, the RSM-8R8 series front panel includes the following
components:

PhoneLinePort(InternalModemPort): When the Internal Modem is present, the
phone line port is used for connection to your external phone line.

NetworkPort: An RJ45 Ethernet port for connection to your 10Base-T or
100Base-T, TCP/IP network. Note that the RSM-8R8 features a default, IPv4 format
IP address (192.168.168.168). This allows you to connect to the unit without first
assigning an IP address. The Network Port also includes two LED indicators for
Link and Data Activity. For more information on port configuration, please refer to
Section 5.9.
Note: RSM-8R8-DEseriesunitsincludetwoRJ45Ethernetports.Formore
information,pleaserefertoSection2.7.

SerialPorts: For connection to console ports on target devices. Standard RJ45
connectors configured as DCE ports. For more information on connecting devices
to the serial ports, please refer to Section 4.5 and Appendix B and Appendix C.
Ã
ACTIVITYIndicators: A series of LEDs, which will light when a CTS signal
is detected, and will flash during data transmission to indicate activity at the
corresponding port.

RESETButton: Restarts the RSM-8R4 as described in Section 2.9.

DEFAULTButton: Switches all plugs Off or sets plugs to default values as
described in Section 2.9.

ONIndicator: An LED Indicator which lights when AC Power is applied to
the unit.

RDYIndicator: (Ready) Flashes to indicate that the unit is ready to receive
commands.

DCDIndicator: The Data Carrier Detect indicator.

OutputStatusIndicators: A series of eight LED indicators which light when power
is applied to the corresponding switched outlet.
Note:Providingthatpowerisstillpresentatthesecondarypowerinlet,the
OutputStatusindicatorswillblinkonandoffwhentheprimarypowersourceis
lostordisconnected.
Ethernet
PHONE
ACT LINK
www.wti.com
RSM-8R8
Remote Site Manager
+
Power Control
SET UP
SERIAL PORTS
1 2 3 4 5 6 7 8
ACTIVITY
1 2 3 4 5 6 7 8
RESET DEFAULT
STATUS
ON RDY DCD
OUTPUT STATUS
1 2 3 4
5 6 7 8
1 2 3 4 5 6 7 8 9 10
Figure 2.10: RSM-8R8-1 & RSM-8R8-2 - Front Panel
