WTI TSM Series User Manual

2-9
Unit Description
2.8. RSM-8R8 Series - Back Panel Components
As shown in Figures 2.12 and 2.13, the RSM-8R8 series back panel includes the
following components:

PowerInlets: Two IEC-320-C20 inlets, for connection to your primary and
secondary (fallback) power supplies. Also includes cable keepers (not shown.)

SwitchedOutlets: Eight AC Outlets that can be switched On, Off or rebooted in
response to user commands:
• RSM-8R8-1: Eight (8) each, NEMA 5-15R Outlets.
• RSM-8R8-2: Eight (8) each, IEC320-C13 Outlets.
PRIMARY SECONDARY A1 A2 A3 A4 A5 A6 A7 A8
1
2

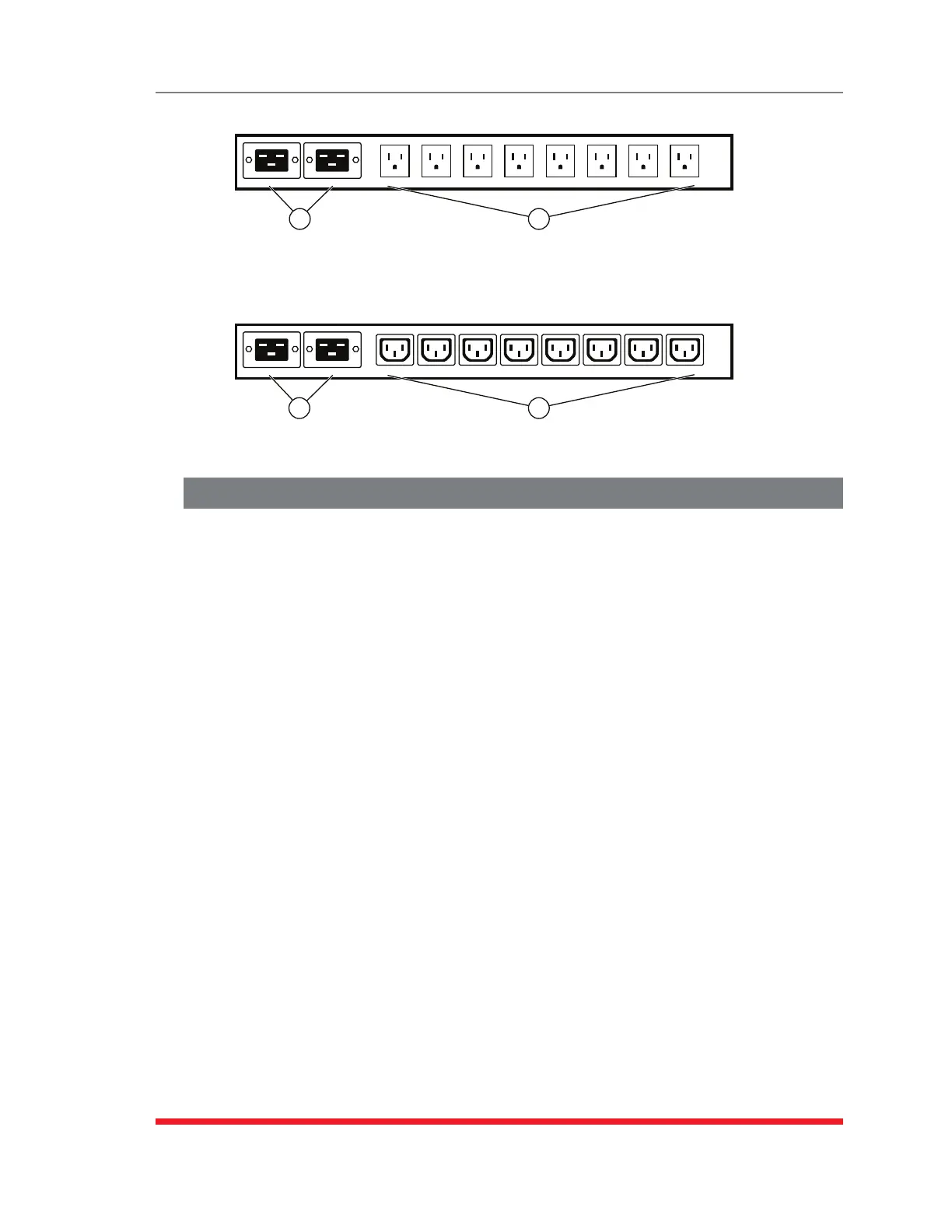

Figure 2.12: RSM-8R8-1 - Back Panel
Figure 2.13: RSM-8R8-2 - Back Panel
PRIMARY SECONDARY A1 A2 A3 A4 A5 A6 A7 A8
1
2
