WTI TSM Series User Manual

2-4
Unit Description
2.3. Back Panel (TSM-DPS Series and TSM-DPE Series)
As shown in Figures 2.5 and 2.6, the TSM-DPS series and TSM-DPE series Back Panel
includes the following components:

PowerInlets: Two IEC-320-C14 inlets, for connection to your primary and
secondary 100 to 240 VAC power supplies.

RS232SerialPorts: For connection to console ports on target devices. Standard
RJ45 connectors configured as DTE ports. The RS232 ports are similar to a serial
port on a PC. When connecting a modem, use a standard serial cable. When
connecting a PC or other DTE device, please refer to Section 4.5 and Appendix B
and Appendix C.
• TSM-24-DPS series units and TSM-24-DPE series units include 24 Serial Ports.
• TSM-40-DPS series units and TSM-40-DPE series units include 40 Serial Ports.

NetworkPorts: Two RJ45 Ethernet ports for connection to your primary and
secondary 10/100Base-T, TCP/IP networks. Note that the TSM features a default,
IPv4 format IP address (192.168.168.168). This allows you to connect to the unit
without first assigning an IP address. Note that each Network Port also includes
two, small LED indicators for Link and Data Activity. For more information on
Network Port configuration, please refer to Section 5.9.
Notes:
• ThetopNetworkPortisEthernetPort0;thebottomNetworkPortisEthernet
Port1.
• DualEthernetportsareonlyavailableonTSM-DPEseriesunits.Standard
TSM-DPSseriesunitsincludeonlyoneEthernetport.
• WhenconnectingyournetworkcabletoaTSM-DPEseriesunit(DualEthernet
Ports,)makecertaintoconnecttoPortETH0.
Ã
PhoneLinePort(InternalModemPort): When the Internal Modem is present, the
phone line port is used for connection to your external phone line.
Ethernet
ACT LNK
ACT LNK
PHONE LINE
100 - 120V ~ 50/60Hz 0.1-0.06A
1 3 5 7 9 11 13 15
10 12 14 16
17 19 21 23
18 20 22 24
8 6 4 2
A B
SETUP
PORT
1
2
3
4

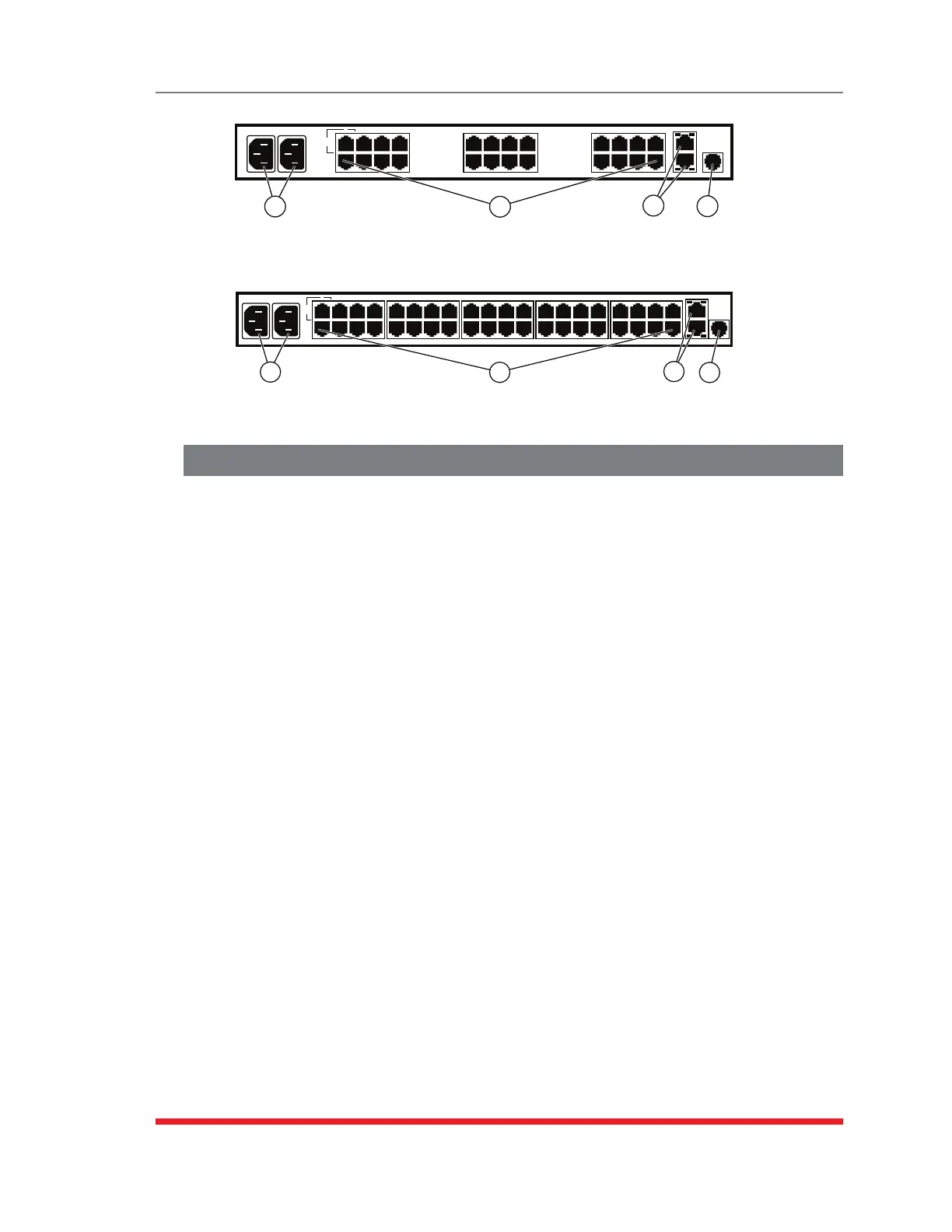

Figure 2.5: Instrument Back Panel (Model TSM-24-DPE)
Ethernet
ACT LNK
ACT LNK
PHONE
100 - 120V ~ 50/60Hz 0.1-0.06A
1 3 5 7 9 11 13 15
10 12 14 16 18 20 22 24
33 35 37 39
34 36 38 40
25 27 29 3117 19 21 23
26 28 30 32
8642
A B
SETUP
PORT
1
2
3
4
Figure 2.6: Instrument Back Panel (Model TSM-40-DPE)
